PXL-500 Tiger Controller II

Powerful, high-quality, sophisticated access control systems at prices that are much less than others? How did Keri do it?

Lets start with the world class hardware:
A RISC-based multiprocessor platform, resulting in the new PXL-500 Tiger II Controller, its companion SB-593 Expansion Board, and high performance, low cost proximity readers.

The PXL-500 Tiger Controller has all of the functionality needed to manage a single door, alarm output, and 2 reader ports. A second door can be added when used with SB-593 Satellite Expansion Board.

The SB-593 Satellite Expansion Board economically provides second door control plus extra general purpose inputs and outputs.

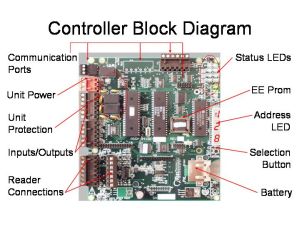

The PXL-500 Tiger II Controller Platform
The new PXL-500 Tiger II Controller platform has taken Keri's acclaimed proximity-based access control system to the next level. Strong enough to manage a 256 door network at a single site or 256 doors per site at multiple sites, yet tame enough to handle a single door, the PXL-500 continues Keri's tradition of flexibility and expandability.

UL/CSA CERTIFICATION: The PXL-500 is UL certified under UL-508 (Control Equipment)

A PXL-500 and Enclosure New Features

Locking Metal Enclosure that can also house KPS-4 Power Supply and battery
Added RAM for increased cardholder capacity (up to 65K per controller)
Alarm integration capability with GE Interlogix/Caddx NX-8E Alarm Panel
On-board LAN socket for new low cost LAN-500
Increased EEPROM memory to support future enhanced firmware capabilities

Installer Features and Enhancements

Double row header pins to ensure SB-593 is properly seated on PXL
Additional LED indicator to confirm SB is properly seated
RS-232 connector changed from DB-9 to quick disconnect terminal block
RS-485 continuity indicator LED
RS-485 connector different size so as not to interconnect with power input
LCD Display moved up so as not to hang below the PC Board

Reliability Enhancements

More protection for RS-485 circuitry
Added relay protection for arc suppression
Optional RS-485 Opto-Isolator for additional lightning protection

Other Great Installation Features - Inherited from the PXL-250

On-board diagnostic tests built into the controller firmware
Diagnostic LEDs on the controller board to assist with troubleshooting communication and controller power issues
Automatically senses communication method (direct connect to PC or via modem)
Auto-Configures RS-485 grounding for optimum performance - NO JUMPER SETTINGS
Quick disconnect terminals
Software auto-configures system components, no data entry required
Push-button setting and visual LED display of address selection - NO DIP SWITCHES
