CVC-7245EXTP- H.E.A.T. Color Vandal Resistant Dome Camera with Advanced Technology, 4-9mm Auto Iris Varifocal Lens, and 24V AC Operation
H.E.A.T. - High End Advanced Technology

Our color vandal resistant dome camera operates on a 24V AC power supply, which provides for other features such as line lock and adjustable phase. It offers advanced technology and a 4-9mm auto iris varifocal lens. Additional features inlcude a low smear level, which prevents glare in dark conditions, pre-set auto exposure, and turbo AGC (Automatic gain control). This camera is also available in a 4mm fixed version under model CVC-724EXTP. Technical Specifications Resolution Ultra High 470 Line Minimum Ilumination 0.03 lux low light sensitivity Lens 4-9mm Auto Iris Varifocal Lens Image Device 1/3 inch color advanced image sensor Electronic Shutter 1/60 - 1/100,000 seconds Video Output 1.0 Vp-p 75 ohm Power Supply 24V AC Operation Power Consumption 130 mA S/N Ratio Greater then 50 dB Operating Temperature - 20 degrees - 122 degrees F Dimensions 1"L x 5.1"W x 3.3"H Housing Color Dark Gray

CVC-724EXTP- H.E.A.T. - Color Vandal Resistant Dome Camera with Advanced Technology and 24V AC Operation

Our color vandal resistant dome camera operates on a 24V AC power supply, which provides for features such as line lock and adjustable phase. It offers advanced technology and a 4mm lens. Additional features include a low smear level, which prevents glare in dark conditions, pre-set auto exposure, and turbo AGC (Automatic gain control). This camera is also available in a 4-9mm varifocal version under model CVC-7245EXTP.
Technical Specifications
Resolution Ultra High 470 Line
Minimum Illumination 0.03 lux low light sensitivity
Lens 4mm Lens
Image Device 1/3 inch Cclor advanced image sensor
Electronic Shutter 1/60 - 1/100,000 seconds
Video Output 1.0 Vp-p 75 ohm
Power Supply 24V AC operation
Operating Temperature -20 degrees - 122 degrees F
S/n Ratio Greater than 50 dB
Power Consumption 130 mA
Dimensions 1"L x 5.1"W x 3.3"H
Housing Color Dark Gray

CVC-820EX- H.E.A.T. Color Bullet Camera with Advanced Technology and Built-in 4.3mm Auto Iris Lens

Our color bullet camera has a built-in 4.3mm auto iris lens. It features advanced technology and a 470 line ultra high resolution with a 0.03 lux low light sensitivity. It also has low smear level, which prevents glare in dark conditions, pre-set auto exposure, and turbo AGC (automatic gain control). The dark gray housing is also weatherproof. Technical Specifications Resolution Ultra High 470 Line Minimum Illumination 0.03 lux low light sensitivity Lens Built-in 4.3mm Auto Iris Lens Image Device 1/3 inch color advanced image sensor Electronic Shutter 1/60 - 1/100,000 seconds Video Ouput 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 50 dB Operating Temperature - 20 degreed - 122 degree F Power Supply Regulated 12V DC power supply (UL and CSA listed) included Power Consumption 130 mA Dimensions 5.8"L x 2.3"W x 2.8"H Housing Color Dark Gray

CVC-6805EX- H.E.A.T. Color Bullet Camera with Advanced Technology and Built-in 4-9mm Varifocal Lens

Our color bullet camera has advanced technology and a built-in 4-9mm varifocal lens with an electronic shutter. It is the slimmer of the bullet cameras included in the H.E.A.T. line offering the same high quality technology. It features a 470 line ultra high resolution with a 0.03 lux low light sensitivity. Additional features include low smear level, which prevents glare in dark conditions, pre-set auto exposure, and turbo AGC (automatic gain control). This camera is also available in a 6mm fixed lens version under model CVC-6800EX. Technical Specifications Resolution Ultra High 470 Line Minimum Illumination 0.03 lux low light sensitivity Lens 4-9mm varifocal lens Image Device 1/3 inch advanced image sensor Electronic Shutter 1/60 - 1/100,000 seconds Video Output 1.0 Vp-p 75 ohm Operating Temperature - 20 degrees - 122 degrees F S/N Ratio Greater than 50 dB Power Supply Regulated 12V DC power supply (UL and CSA listed) included Power Consumption 130 mA Dimensions 5.75"L x 2.5"W x 2.1"H

CVC-6800EX- H.E.A.T. Color Bullet Camera with Advanced Technology and Built-in 4mm Lens

Our color bullet camera has advanced technology and a built-in 6mm lens. It is the slimmer of the bullet cameras included in the H.E.A.T. line offering the same high quality technology. It features a 470 line ultra high resolution with a 0.03 lux low light sensitivity. Additional features include low smear level, which prevents glare in dark conditions, pre-set auto exposure, and turbo AGC (automatic gain control). This camera is also available in a 4-9mm varifocal version under model CVC-6805EX. Technical Specifications Resolution Ultra High 470 Line Minimum Illumination 0.03 lux low light sensitivity Electronic Shutter Auto 1/60 - 1/100,000 seconds Video Output 1.0 Vp-p 75 ohm Image Device 1/3 inch color advanced image sensor Lens 6mm Lens Operating Temperature - 20 degrees - 122 degrees F S/N Ratio Greater than 50 dB Power Supply Regulated 12V DC power supply (UL and CSA listed) included Power Consumption 130 mA Dimensions 5.3"L x 1.3"W x 2.5"H Housing Color Dark Grey

CVC-637EX- H.E.A.T. Miniature Color Bullet Camera with Advanced Technology and Built-in 6mm Lens

Our miniature color bullet camera has a built-in 6mm lens and advanced technology. It is the smallest of the bullet cameras included in the H.E.A.T. line offering the same high quality technology. The miniature CVC-637EX features a 470 line ultra high resolution with a 0.03 lux light senstivity. Additional benefits of this uniquely miniature bullet include low smear level, which prevents glare in dark conditions, pre-set auto exposure, and turbo AGC (automatic gain control). It is also weatherproof and ideal for outdoor ans well as indoor applications. Technical Specifications Resolution Ultra High 470 Line Minimum Illumination 0.03 lux Electronic Shutter Auto 1/60 - 1/100,000 seconds Video Output 1.0 Vp-p 75 ohm Image Device 1/3 inch color advanced image sensor Lens 6mm Lens Operating Temperature - 20 degrees - 122 degrees F S/N ratio Greater than 50 dB Power Supply Regulated 12V DC power supply (UL and CSA listed) included Power Consumption 130 mA Dimensions 2.6"L x 1"W x 1"H

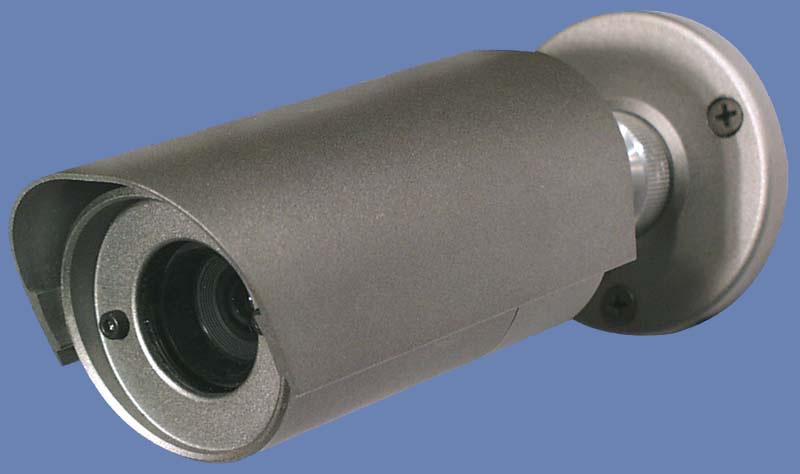

CVC-870EX- H.E.A.T. Color Varifocal Bullet Camera with Advanced Technology and Auto Iris Lens

Our color varifocal bullet camera has an adjustable 4-9mm auto iris lens and advanced technology. The CVC-870EX features ultra high 470 line resolution with a 0.03 lux, F 1.2 and weatherproof housing, making it suitable for day and night, as well as indoor and outdoor operation. This camera includes pre-set auto exposure settings, a low smear level preventing glare in dark conditions, and turbo automatic gain control. The included mounting installation package makes the camera ceiling, surface, or wall ready. A 12V DC power supply is included. Technical Specifications Resolution Ultra High 470 Line Minimum Illumination 0.03 lux F 1.2 Electronic Shutter Auto 1/60 - 1/100,000 seconds Image Device 1/3 inch color advanced image sensor Video S/N Ratio Greater than 50 dB Lens 4-9mm varifocal auto iris lens Operating Temperature -20 degrees F - 122 degrees F Power Supply Regulated 12V DC power supply included (UL and CSA listed) Power Consumption 130 mA (TYPICAL) Dimensions 6.7"L x 2.7"W x 2.7"H Housing Color Dark Gray Video Ouput 1.0 Vp-p 75 ohm S/N Ratio Greater than 50 dB

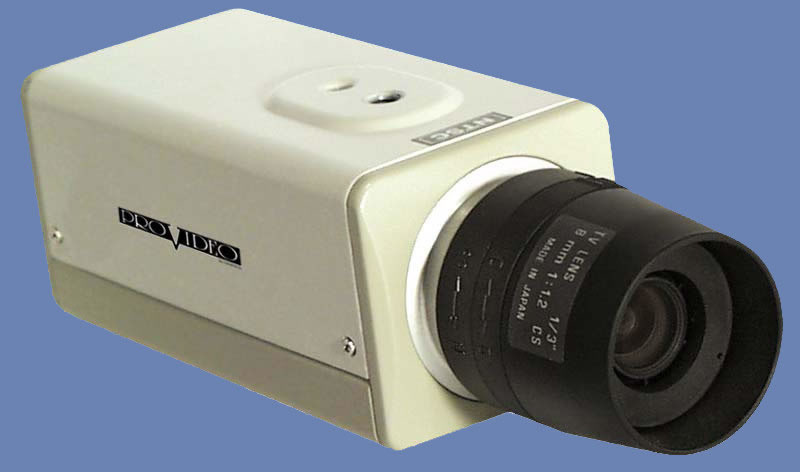

CVC-880EX- H.E.A.T. Color Camera with Advanced Technology

This color camera offers a 470 line resolution with a 0.075 lux. advanced technology compliments other features that include: back light compensation, auto electronic shutter, automatic gain control, automatic light compensation, and internal line lock/phase adjustable in 24V AC mode. It accepts video and DC drive auto iris lens. The camera requires either a 12V DC or 24V AC power supply. The lens is sold separately. (See the C/CS lens section). Technical Specifications Resolution Ultra High 470 Line Minimum Illumination 0.075 F 1.2 Electronic Shutter Auto 1/60 - 1/100,000 seconds Image Device 1/3 inch color advanced image sensor Lens Sold Separately Accepts C/CS mount lenses (see C/CS lens section) Scanning Frequency 15.75 kHz horizontal 60 Hz vertical Video Output 1.0 Vp-p 75 ohms Video S/N Ratio Greater than 50 dB Output Video - BNC, power- terminal strip Internal Line Lock/Adjustable Phase 24V AC mode Operating Temperature 14 degrees F - 122 degrees F Adjustable phase In 24V AC mode Humidity Within 95 % RH Power Supply Requires 12V DC or 24V AC power supply(not included) Power Consumption 130 mA Dimensions 5.75"L x 2.5"W x 2.1"H Weight 7.5 oz Lens Options See C/CS section

CVC-7705DNV- H.E.A.T. Color Day/Night Bullet Camera with Advanced Technology, Built-in Infrared LEDs, Auto Iris Varifocal Lens and Sunshield

Our color day/night bullet camera makes for an ideal 24-hour operational camera. It offers exceptional color images by day, and automatically switches to B/W at night. It has extreme infrared response and excellent low light sensitivity. Built-in infrared LEDs provide a 0 lux performance with a 470 line resolution when in B/W mode. When operating as a color camera, the lux is 0.03. Other key features include a 4-9mm auto iris varifocal lens, 1/3" advanced image sensor, and concealed wiring through the adjustable mounting bracket. Additionally, this weatherproof camera includes a removable sunshield. Also available in a 4mm version under model number CVC-7700DN. Technical Specifications Resolution 470 line Minimum Illumination 0 lux with operating LEDs, 0.03 with existing light Electronic Shutter Auto 1/60 - 1/100,000 seconds Image Device 1/3 inch color advanced image sensor Lens 4-9mm auto iris varifocal lens Number of Pixels 512 horizontal x 492 vertical Scanning Frequency 15.75 kHz horizontal 60 Hz vertical Synchronization Line lock and adjustable phase Video S/N Ratio Greater than 50 dB Operating Temperature - 20 degrees F - 122 degrees F Humidity Within 95 % RH Power Requirement 24V AC power supply required Power Consumption 130 mA Dimensions 7.2"L x 2.7"W x 2.7"H Housing Dark Gray Weight

CVC-7700DN- H.E.A.T. Color Day/Night Bullet Camera with Advanced Technology, Built-in Infrared LEDs and Sunshield. Operates on 24V AC

Our color day/night bullet camera makes for an ideal 24-hour operational camera. It offers exceptional color images by day, and automatically switches to B/W at night. It has extreme infrared response and excellent low light sensitivity. Built-in infrared LEDs provide a 0 lux performance with a 470 line resolution when in B/W mode. When operating as a color camera, the lux is 0.03. Other key features include a 4mm lens, 1/3" advanced image sensor, and concealed wiring through the adjustable mounting bracket. Additionally, the camera is weatherproof and includes a removable sunshield. Also available in a 4-9mm varifocal version under model number CVC-7705DNV. Technical Specifications Resolution 470 line Minimum Illumination 0 lux with operating LEDs, 0.03 with existing light Electronic Shutter Auto 1/60 - 100,000 seconds Image Device 1/3 inch color advanced image sensor Lens 4mm lens Number of Pixels 512 horizontal x 492 vertical Scanning Frequency 15.75 kHz horizontal 60 Hz vertical Video Output 1.0 Vp-p 75 ohms Video S/N Ratio Greater than 50 dB Synchronization Line lock and adjustable phase Operating Temperature - 20 degrees F - 122 degrees F Humidity Within 95 % RH Power Requirement 24V AC power supply required Power Consumption 130 mA Dimensions 7.2"L x 2.7"W x 2.7"H Housing Dark Gray Weight 7.5 oz
