CVC-640LC/W- Color Outdoor Motion Sensor Security Lights Camera, White Housing
 |
Our 1/3" color CCD weatherproof outdoor camera
is built into an outdoor light fixture and includes a built-in motion
sensor for lighting control. It features a 1 lux with 350 line resolution.
It has a 3.6mm wide angle lens with a built-in electronic shutter.
A surface mount weatherproof electrical box further protects the unit.
A mounting bracket, wiring harness and 12V DC power supply are included.
This model has a white camera housing. A version is available with
a bronze colored camera housing under model number CVC-360LC along
with a B/W version under CVC-340BL/W. Technical Specifications Resolution 350 lines Minimum Illumination 1 lux Electronic Shutter auto 1/60 - 1/100,000 second Image Device 1/3" color CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6mm, Hor. 72 degrees, Vert. 53 degrees Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14 degrees F - 122 degrees F Humidity within 95 % RH Output Video- RCA with BNC adapter, power- DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 100 mA Overall Dimensions 7"L x 9.75"W x 8.5"H Housing white metal housing Mount 1/2" thread compatible with standard electric boxes Lens Options 2.5, 6, 8, 12mm |
CVC-640LC- Color Outdoor Motion Sensor Security Lights Camera, Bronze Housing
 |
Our 1/3 color CCD weatherproof outdoor camera is built
into an outdoor light fixture and includes a built-in motion sensor
for lighting control. It features a 1.0 lux with 350 line resolution.
It has a 3.6mm wide angle lens with a built-in electronic shutter.
A surface mount weatherproof electrical box further protects the unit.
A mounting bracket, wiring harness and 12V DC power supply are included.
This model has a bronze colored camera housing. A version is available
with a white camera housing under model number CVC-360LC/W along with
a B/W version under CVC-340LC. Technical Specifications Resolution 350 lines Minimum Illumination 1 lux F 1.4 Electronic Shutter auto 1/60 - 1/100,000 seconds Image Device 1/3" color CCD image device Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6mm, Hor. 72 degrees, Vert. 53 degrees Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm VIdeo S/N Ratio greater than 46 dB Operating Temperature 14 degrees F - 122 degrees F Humidity within 95 % RH Output Video- RCA with BNC adapter, power-DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 100 mA Weight 12 1/2 lbs (includes light housing) Overall Dimensions 7"L x 9.75"W x 8.5"H Housing bronze colored metal housing Mount 1/2" thread compatible with standard electrical boxes Lens Options 2.5, 6, 8, 12mm |
CVC-340LC/W- B/W Outdoor Motion Sensor Security Lights Camera, White Housing
|
Our 1/3" B/W CCD weatherproof outdoor camera is built into
an outdoor light fixture and includes a built-in motion sensor for
lighting control. It features a 0.02 lux with 420 line resolution.
It has a 3.6mm wide angle lens with a built-in electronic shutter.
A surface mount weatherproof electrical box further protects the
unit. A mounting bracket, wiring harness and 12V DC power supply
are included. This model has a white camera housing. A version is
available in bronze camera housing under model number CVC-340LC
along with a color version under model number CVC-640LC/W. |

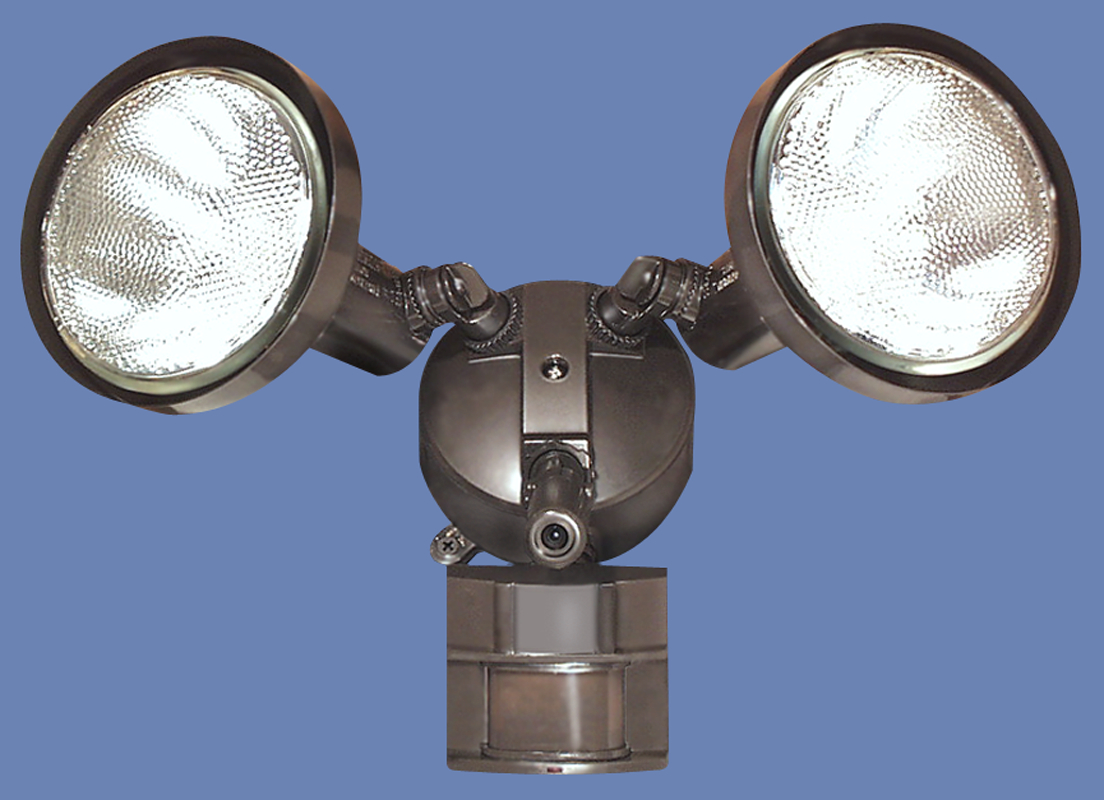

CVC-340LC- B/W Outdoor Motion Sensor Security Lights, Bronze Colored Housing
|
Our 1/3" B/W CCD weatherproof outdoor camera is built into
an outdoor light fixture and includes a built-in motion sensor for
lighting control. It features a 0.02 lux with 420 line resolution.
It has a 3.6mm wide angle lens with a built-in electronic shutter.
A surface mount weatherproof electrical box further protects the
unit. A mounting bracket, wiring harness and 12V DC power supply
are included. This model has a bronze colored camera housing. A
version is available with a white camera housing under model number
CVC-340LC/W along with a color version under model number CVC-640LC. |
