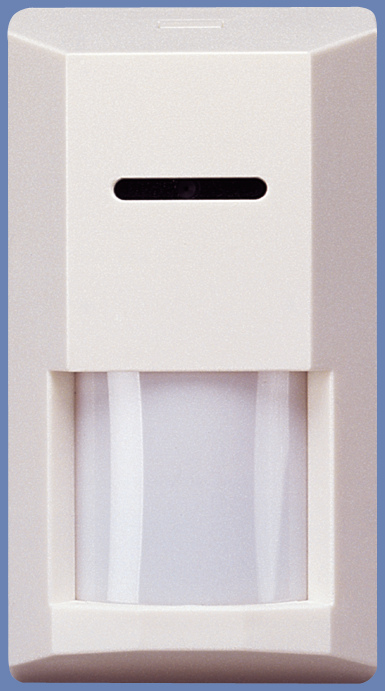

CVC-565PIR- Color CCTV Camera in Non-Operating PIR Housing
 |
Our 1/3" color CCD camera is encased in a white
non-working PIR housing. It has a 1.0 lux with 350 line resolution.
It features a 3.6mm wide angle pinhole lens and built-in electronic
shutter.A 12V DC power supply is included. A B/W version of this camera
can be found under model number CVC-265PIR. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux Electronic Shutter auto 1/60 - 1/100,000 seconds Image Device 1/3" color CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System NTSC Color TV System Lens 3.6mm wide angle pinhole lens Scanning Frequency horizontal 15.75 kHz vertical 60 Hz White Balance/Gain Control N/A Video Output Level 1.0 Vp-p.75 ohm Video S/N Ratio Greater than 46 dB Operating Temperature 14º F - 122º F Humidity Within 95 % RH Output Video - RCA with BNC adapter, power- DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 210 mA Weight 9 oz Dimensions 2"L x 2.75"W x 4.75"H Housing non-working, white, PIR housing Lens Options N/A |
CVC-272PIR- B/W Camera in Operating PIR Motion Sensor Housing
 |
Our 1/3" B/W interline CCD camera is a fully functional
PIR motion detector. It has a 0.5 lux with 480 line resolution. It
features a 3.6mm pin hole lens with built-in electronic shutter, a
normally open and normally closed trigger, and swivel mount. A 12V
DC power supply is also included. A non-functioning PIR housing camera
can be found under model number CVC-265PIR (B/W) and CVC-565PIR (Color). Technical Specifications Resolution 480 lines Minimum Illumination 0.5 lux F1.5 Electronic Shutter auto 1/50-1/100,000 sec. Image Device 1/3" B/W CCD image sensor Numberof Pixels 512 line horizontal x 492 line vertical Scanning System EIA standard 525 TV lines 60 fields/sec Lens 3.6mm pinhole lens, Hor. 74º, Vert. 53º Scanning Frequency Hor. 15.734 kHz Vert. 59.94 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Outputs Video - RCA with BNC adaptor, power- DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Operating Temperature 14ºF - 122ºF Humidity Within 95% RH Power Consumption 120 mA Weight 9 oz. Dimensions 2"L x 2.75"W x 4.75"H Housing ABS plastic working PIR housing Lens Options None |
CVC-265PIR- B/W Camera in Non-Operating PIR Motion Sensor Housing
 |
Our 1/3" B/W CCD camera has a 0.5 lux with 480 line resolution.
It is encased in a non-working PIR housing . It features a 3.6mm
wide angle pinhole lens and a built-in electronic shutter. A working
PIR housing model can be found under model number CVC-272PIR. Also
a color version of the non-working PIR housing camera can be found
under model number CVC-565PIR. A 12V DC power supply is included. |
