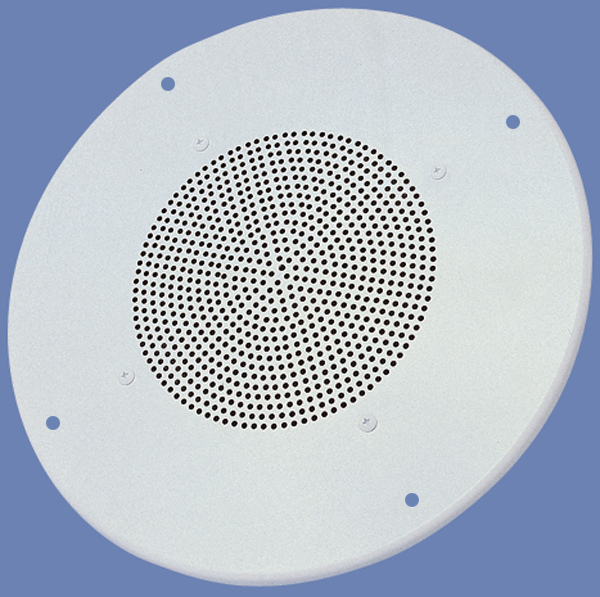

CVC-235CS- B/W In-Ceiling Speaker Camera

Our 1/3" B/W CCD camera features a fully operational 12" round ceiling speaker. The camera has a 0.5 lux and a 420 line resolution along with a 3.6mm wide angle pinhole lens with a built-in electronic shutter. The speaker unit matches standard 8" dual cone commercial sound speakers for concealed surveillance. A 12V DC power supply is included. A color version of this camera can be found under model number CVC-635CS. Technical Specifications Resolution Hor. 420 line - Vert. 350 line Minimum Illumination 0.5 lux Electronic Shutter auto 1/50-1/100,000 sec. Image Device 1/3" B/W CCD image sensor Number of Pixels 512 (H) x 492 (V) picture elements Scanning System EIA standard 525 TV lines 60 fields/sec Lens 3.6mm, Hor. 72º, Vert. 53º Scanning Frequency Hor. 15.75 kHz Vert. 60 Hz Video Output Level 1.0 Vp-p 75 ohm Audio Output fully operational speaker Power Consumption 150 mA Operating Temperature 14º F - 122º F Video S/N Ratio Greater than 46 dB Humidity Within 95% RH Outputs Video - RCA with BNC adaptor, power - DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Weight 4 lbs. Dimensions 12" Dia. 8" dual cone speaker Housing White metal grille Lens Options None

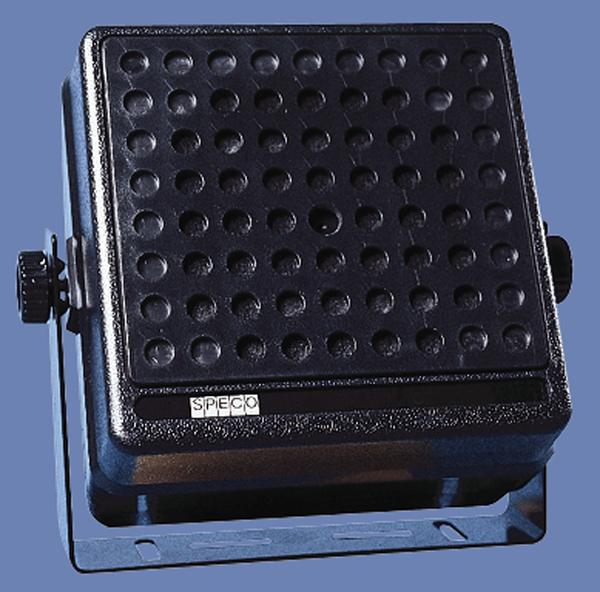

CVC-225ES- B/W Extension Speaker Camera

Our miniature video camera features a fully operational communications extension speaker. The camera has a 1/3" B/W CCD with a 0.02 lux and 420 line resolution. Its 3.6mm wide angle lens has an electronic iris. A swivel mounting bracket, which allows for both sound projection and video surveillance, along with a 12V DC power supply are included. Technical Specifications Resolution Horizontal 420 lines - Vertical 350 lines Minimum Illumination 0.02 lux Electronic Shutter Auto 1/50-1/100,000 second Image Device 1/3" B/W CCD image sensor Scanning System EIA standard 525 lines 60 fields/second Number of Pixels 512 horizontal x 492 vertical Lens 3.6mm wide angle lens, Hor. 72º, Vert. 53º Scanning Frequency Horizontal 15.75 kHz Vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Outputs Video - RCA with BNC adaptor, Power, - DC jack Operating Temperature 14ºF - 122ºF Humidity Within 95% RH Power Requirements regulated 12V DC power supply included (UL and CSA listed) Power Consumption 150 mA Weight 2 lbs. Dimensions 2.5"L x 4.25"W x 4.25"H Housing Black composite plastic housing Lens Options None
