CVC-680CD- Color Dome Camera with Ceiling Mount Pole

Our 1/3 color CCD dome camera is equipped with a steel ceiling mounting pole bracket. It has a 1.0 lux with 350 line resolution. It features a 3.6mm wide angle lens and built-in electronic shutter. An adjustable inside camera mount and12V DC power supply are also included. A B/W version of this camer can be found under model number CVC-380CD. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux Electronic Shutter auto 1/60-1/100,000 second Image Device 1/3" CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System NTSC Color 525 line 60 fields/second Lens 3.6mm, Hor. 74º, Vert. 57º Scanning Frequency Horizontal 15.75 kHz vertical 60 Hz White Balance/Gain Control Auto Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14º F - 122º F Humidity within 95 % RH Outputs video - RCA with BNC adapter, power - DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 210 mA Weight 2 lbs. Dimensions 5.25"L x 4.5'W x 4.5"H Housing Black Metal/ABS Dome Lens Options 6, 8mm

CVC-690WD- Color Dome Camera with Wall Mount Pole

Our 1/3" B/W wall mount dome CCD camera has an adjustable inside bracket and a 90 degree steel wall mounting pole. It features a 1.0 lux with 350 line resolution. It has a 3.6mm wide angle lens and a built-in electronic shutter. A 12V DC power supply is included. A B/W version of thi camera can be found under model number CVC-390WD. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux Electronic Shutter auto 1/60-1/100,000 seconds Image Device 1/3" color CCD image sensor Number of Pixels 512 horizontal x 492 verticalements Scanning System NTSC color 525 line 60 fields/second Lens 3.6mm, Hor. 74º, Vert. 57º Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video S/N Ratio greater than 46 dB White Balance/Gain Control Auto Video Output Level 1.0 Vp-p 75 ohm Audio Output Level N/A Outputs Video- RCA with BNC adapter, power - DC jack Operating Temperature 14ºF - 122ºF Humidity Within 90% RH Power Requirements 12V DC Power supply included-UL and CSA listed Power Consumption 210 mA (Clock uses AA battery) Weight 2 lbs. Dimensions 5.25"L x 4.5"W x 4"H Housing Black Metal/ABS Dome Lens Options 6, 8mm

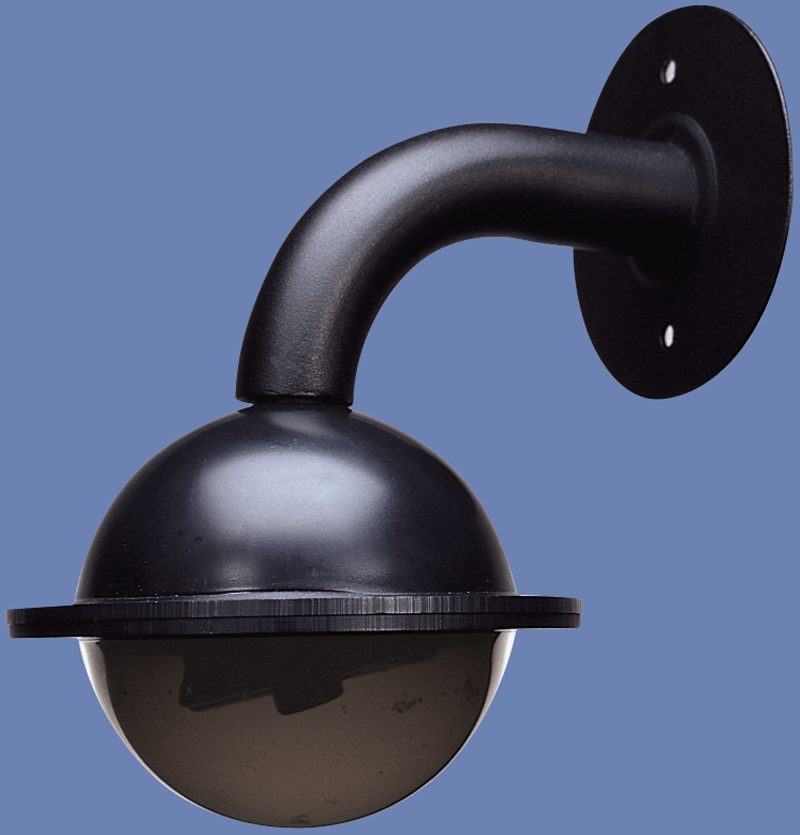

CVC-390WD- B/W Dome Camera with Wall Mount Pole

Our 1/3" B/W wall mount dome CCD camera has an adjustable inside bracket and a 90 degree steel wall mounting pole. It features a 0.02 lux with 420 line resolution. It has a 3.6mm wide angle lens and a built-in electronic shutter. A 12V DC power supply is included. A color version of this camera can be found under model number CVC-690WD. Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux F 1-8 Electonic Shutter auto 1/60 - 1/100,000 second Image Device 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6mm, Hor. 72º, Vert. 53º Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Output Video - RCA with BNC adapter, power- DC jack Operating Temperature 14ºF - 122ºF Humidity Within 95 % RH Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 150 mA Weight 8 oz Dimensions 5.25"L x 4.5"W x 4"H Housing Black Metal /ABS Dome Lens Options 2.5, 6, 8, 12mm

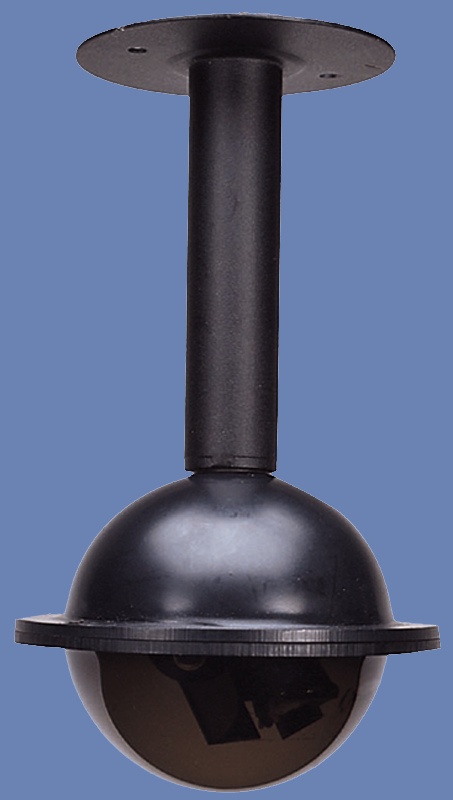

CVC-380CD- B/W Dome Camera with Ceiling Mount Pole

Our 1/3 B/W CCD dome camera is equipped with a steel ceiling mounting pole bracket. It has a 0.02 lux with 420 line resolution. It features a 3.6mm wide angle lens and built-in electronic shutter. An adjustable inside camera mount and12V DC power supply are also included. A color version of this camer can be found under model number CVC-680CD. Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux F 1-8 Electronic Shutter auto 1/60-1/100,000 sec. Image Device 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6mm, Hor. 72º, Vert. 53º Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Outputs Video - RCA with BNC adapter, power - DC jack Humidity Within 95 % RH Operating Temperature 14ºF - 122ºF Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 150 mA Weight 8 oz. Dimensions 5.25"L x 4.5"W x 4.5"H Housing Black Metal ABS Dome Lens Options 2.5, 6, 8, 12mm
