CVC-691AM/W- Color Wall Mount Camera with Audio
 |
Our 1/3" CCD color wall mount with audio has a
compact weather resistant white ABS plastic housing. It is ideal for
mounting in office areas, lobbies, hallways, inside buses, building
exteriors and residential entrances. It has a 1.0 lux with 350 line
resolution. It features a 3.6mm wide angle lens and a built-in electronic
shutter. It uses an RCA female video output. A BNC adapter and 12V
DC power supply is also included. A B/W version of his camera can
be found under model number CVC-91AM/W. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux Electronic Shutter auto 1/60-1/100,000 seconds Image Device 1/3" color CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System NTSC color 525 line 60 fields/second Lens 3.6mm, Hor. 74º, Vert. 57º Scanning Frequency horizontal15.75 kHz vertical 60 Hz White Balance/Gain Control Auto Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Audio Output Level 300mV at 600 ohm Operating Temperature 14º F - 122º F Humidity Within 95 % RH Outputs Video/Audio - RCA with BNC adapter, power - DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 210 mA Weight 10 oz Dimensions 1.75"L x 2.25"W x 2.75"H Housing White ABS molded plastic Lens Options 6, 8mm |
CVC-91AM/W- B/W Wall Mount Camera with Audio
|
Our 1/3" CCD color wall mount with audio has a
compact weather resistant white ABS plastic housing. It is ideal for
mounting in office areas, lobbies, hallways, inside buses, building
exteriors and residential entrances. It has a 0.02 lux with 420 line
resolution. It features a 3.6mm wide angle lens and a built-in electronic
shutter. It uses an RCA female video output. A BNC adapter and 12V
DC power supply is also included. A color version of his camera can
be found under model number CVC-691AM/W. Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux F 1.4 Electronic Shutter auto1/60 - 1/100,000 second Image Device 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6 mm wide angle lens, Hor. 72º, Vert. 53º Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp.p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14º F - 122º F Humidity within 95 % RH Output Video - RCA with BNC adapter, power - DC jack Power Supply regulated 12 V DC power supply included (UL and CSA listed) Power Consumption 150 mA Weight 7oz Dimensions 1.75"L x 2.25"W x 2.75"H Lens Options 2.5, 6, 8, 12mm |

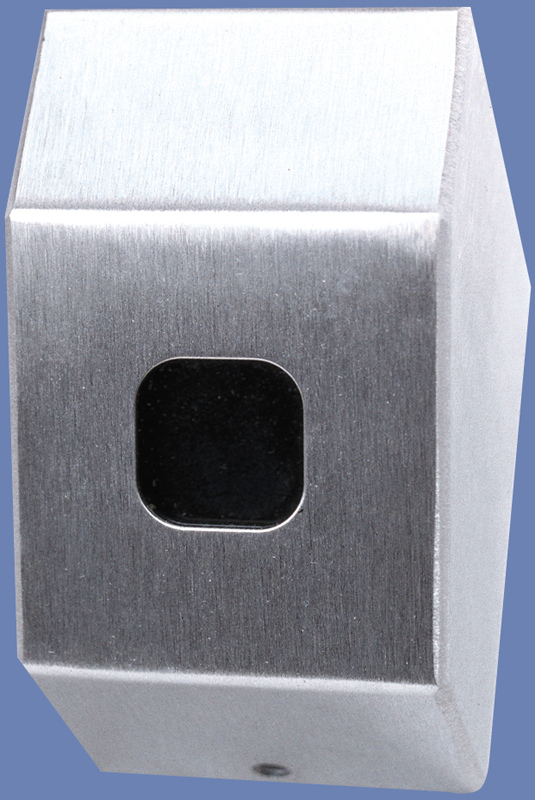

CVC-695AM- Color Angle Mount Camera
 |
Our 1/3" color CCD angle mount camera is weather resistant
and is encased in an 18 gauge tamper-resistant stainless steel housing.
It has a 1.0 lux with 350 line resolution. It features a 3.6mm wide
angle lens that views at a downward angle of at 38 degrees. It uses
an RCA female video output. A tamperproof screw for vandal resistant
mounting, BNC adaper and 12V DC power supply are included. A B/W
version of this camera can be found under model number CVC-95AM.
Both versions are also offered in a model that has audio, which
can be found under moel numbers CVC-96AM/W (B/W) and CVC-696AM/W
(color).
|

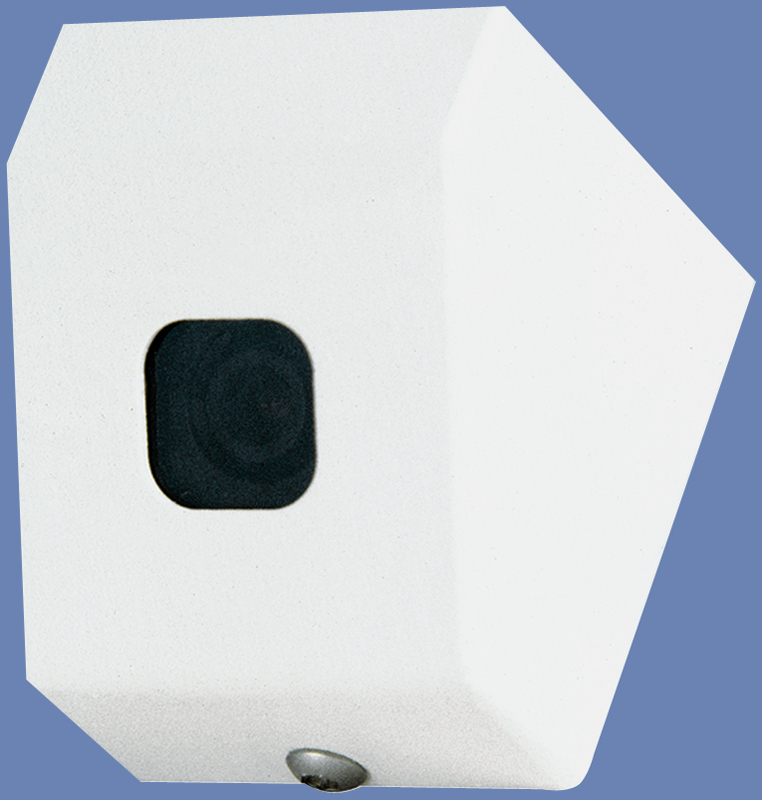

CVC-95AM- B/W Angle Mount Camera
 |
Our 1/3" B/W CCD angle mount camera is weather
resistant and is encased in an 18 gauge tamper-resistant stainless
steel housing. It has a 0.02 lux with 420 line resolution. It features
a 3.6mm wide angle lens that views at a downward angle of 38 degrees.
It uses an RCA female video output. A tamperproof screw for vandal
resistant mounting, BNC adaper and 12V DC power supply are included.
A color version of this camera can be found under model number CVC-695AM.
Both versions are also offered in a model that has audio, which can
be found under model numbers CVC-96AM/W (B/W) and CVC-696AM/W (color). Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux F 1.6 Electronic Shutter auto 1/60 -1/100,000 second Image Device 1/3” B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6 mm wide angle lens, Hor. 72º, Vert. 53º Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp.p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14º F - 122º F Humidity within 95 % RH Output Video - RCA with BNC adapter, power - DC jack, audio - RCA 300mV@600 ohm Power Supply regulated 12 V DC power supply included (UL and CSA listed) Power Consumption 150 mA Weight 6.8oz Dimensions 2.5"L x 2.25"W x 2.75"H Housing 18 gauge stainless steel Lens Options 2.5, 6, 8, 12mm |
