CVC-404CM- Ceiling Mount Housing with 4 B/W Cameras
 |
Our ceiling mount housing with four 1/3" B/W CCD
cameras has a 0.02 lux and a 420 line resolution. It features a 3.6mm
lens with built-in electronic housing. A 12V DC power supply is also
included. This particular model ceiling mount housing can house up
to four cameras. This type housing with additional 1,2, or 3 total
cameras can be found under model numbers CVC-401CM, CVC-402CM, and
CVC-403CM. Technical Specifications Resolution 420 lines (per camera) Minimum Illumination 0.02 lux (per camera) Electronic Shutter auto 1/60 - 1/100,000 seconds (per camera) Image Device (4) 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical (per camera) Scanning System EIA standard 525 line 60 fields/second (per camera) Lens 3.6mm wide angle lens (per camera) Video Output 1.0 Vp-p 75 ohm (per camera) Video S/N Ratio greater than 46 dB (per camera) Operating Temperature 14 degrees F - 122 degrees F Power Supply regulated 12V DC power supply per camera included (UL and CSA listed )( one PSW-2 per camera included Power Consumption 600 mA (TYPICAL) (150 mA per camera) Weight 3 lbs (per camera) Dimensions 6.5"L x 6.5"W x 2.5"H Housing almond steel Lens Options 2.5, 6, 8, 12mm |
CVC-403CM- Ceiling Mount Housing with 3 B/W Cameras
|
Our ceiling mount housing with three 1/3" B/W CCD
cameras has a 0.02 lux and a 420 line resolution. It features a 3.6mm
lens with built-in electronic housing. A 12V DC power supply is also
included. This particular model ceiling mount housing can house up
to four cameras. This type housing with additional 1,2, or 4 total
cameras can be found under model numbers CVC-401CM, CVC-402CM, and
CVC-404CM. Technical Specifications Resolution 420 lines (per camera) Minimum Illumination 0.02 lux (per camera) Electronic Shutter auto 1/60 - 1/100,000 seconds (per camera) Image Device (3) 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical (per camera) Scanning System EIA standard 525 line 60 fields/second (per camera) Lens 3.6mm wide angle lens (per camera) Video Output 1.0 Vp-p 75 ohm (per camera) Video S/N Ratio Greater than 46 dB (per camera) Operating Temperature 14 degrees F - 122 degrees F Power Supply regulated 12V DC power supply included (UL and CSA listed )(one PSW-2 per camera included Power Consumption 450 mA (TYPICAL) (150 mA (per camera) Dimensions 6.5"L x 6.5"W x 2.5"H Housing almond steel Lens Options 2.5, 6, 8, 12mm |
CVC-402CM- Ceiling Mount Housing with 2 B/W Cameras
|
Our ceiling mount housing with two 1/3" B/W CCD cameras
has a 0.02 lux and a 420 line resolution. It features a 3.6mm lens
with built-in electronic housing. A 12V DC power supply is also
included. This particular model ceiling mount housing can house
up to four cameras. This type housing with additional 1,3, or 4
total cameras can be found under model numbers CVC-401CM, CVC-403CM,
and CVC-404CM. |

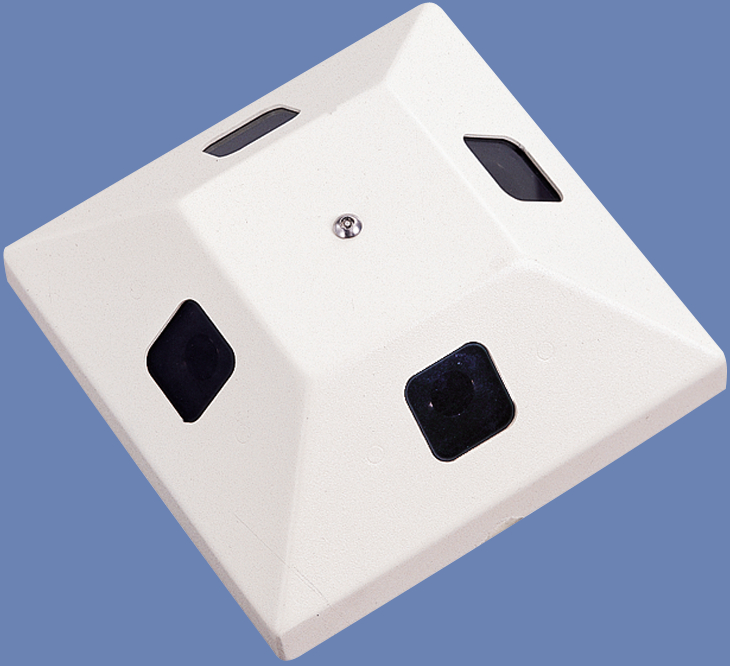

CVC-401CM- Ceiling Mount Housing with 1 B/W Camera
|
Our ceiling mount housing with one 1/3" B/W CCD
camera has a 0.02 lux and a 420 line resolution. It features a 3.6mm
lens with built-in electronic housing. A 12V DC power supply is also
included. This particular model ceiling mount housing can house up
to four cameras. This type housing with additional 2,3, or 4 total
cameras can be found under model numbers CVC-402CM, CVC-403CM, and
CVC-404CM. Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux F 1.6 Electonic Shutter auto 1/60 - 1/100,000 second Image Device (1) 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical Lens 3.6 mm, Hor. 72º, Vert. 53º Scanning System EIA standard 525 line 60 fields/second Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Operating Temperature 14º F - 122º F Humidity Within 95 % RH Power Supply regulated 12V DC power supply included (UL and CSA listed )( one PSW-2 per camera included Power Consumption 150 mA (TYPICAL) (per camera) Output Video - RCA with BNC adapter, power- DC jack Weight 3 lbs. Dimensions 6.5"L x 6.5"W x 2.5"H Housing Almond steel Lens Options 2.5, 6, 8,12mm |
