CVC-606MCM- Color Corner Mount Camera with Mirrored Finish
 |
Our corner mount camera features a mirrored front plate
made of shatter resistant plexiglass, and can be mounted in any 90
degree corner. It has a 350 line resolution with a 2.0 lux rating.
This 1/3 inch CCD camera has a 3.6mm lens. A regulated 12V DC power
supply is included. A B/W version of this camera can be found under
model number CVC-106MCM. A replacement mirrored plate for the existing
CVC-105CM and CVC-605CM corner mount cameras is also available under
model number BCC-MCM. Technical Specifications Resolution 350 line Minimum Illumination 2.0 lux Electronic Shutter Auto 1/60 - 1/100,000 seconds Image Device 1/3 inch CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6mm wide angle lens Video Output 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Operating Temperature 14 degrees F - 122 degrees F Humidity Within 95 % RH Output Video RCA with BNC adapter, power - DC jack Power Supply Regulated 12V DC power supply included (UL and CSA listed) Power Consumption 130 mA Weight 1.4 lbs Dimensions 4'L x 9"W x 7"H Special Can be mounted in any 90 degree corner Mount na Housing Shatter Resistant Plexiglass |
CVC-106MCM- B/W Corner Mount Camera with Mirrored Finish
|
Our b/w corner mount camera features a mirrored front
plate made of shatter resistant plexiglass, and can be mounted in
any 90 degree corner. It has a 420 line resolution with a 0.02 lux
rating. This 1/3 inch CCD camera has a 3.6mm lens. A regulated 12V
DC power supply is included. A color version of this camera can be
found under model number CVC-606MCM. A replacement mirrored plate
for the existing CVC-105CM and CVC-605CM corner mount cameras is also
available under model number BCC-MCM. Technical Specifications Resolution 420 line Minimum Illumination 0.02 lux Electronic Shutter Auto 1/60 - 1/100,000 seconds Image Device 1/3 inch CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6mm wide angle lens Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Operating Temperature 14 degrees F - 122 degrees F Humidity Within 95 % RH Output Video -RCA with BNC adapter, power- DC jack Power Supply Regulated 12V DC power supply included (UL and CSA listed) Power Consumption 100 mA Weight 1.4 lbs Dimensions 4"L x 9"W x 7"H Special Can be mounted in any 90 degree corner Mount na Housing Shatter Resistant Plexiglass |
CVC-605CM- Color Corner Mount Camera
 |
Our corner mount 1/3" color CCD camera is housed in 18 gauge
stainless steel and can be mounted in the corner of any room, hallway,
elevator, or any 90 degree angle corner. It features a 3.6mm lens
with a built-in electronic shutter and has a 1.0 lux rating with
350 line resolution. A 12V DC power supply is included. The B/W
version of this camera can be found under model number CVC-105CM.
Both the CVC-105CM and CVC-605CM can be field converted with a plexiglass
mirrored faceplate by retrofitting with model number BCC-MCM. |

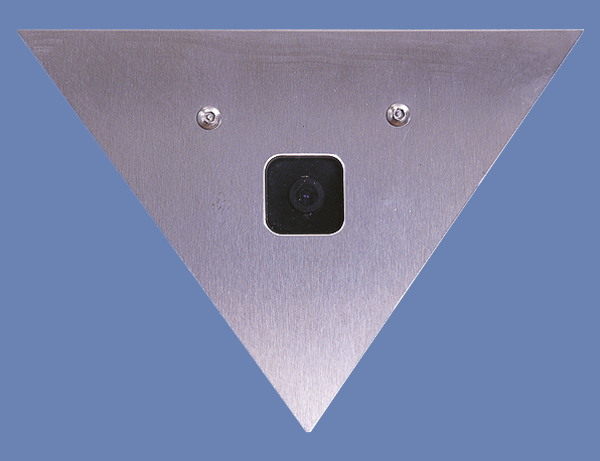

CVC-105CM- B/W Corner Mount Camera
|
Our corner mount 1/3" B/W CCD camera is housed
in 18 gauge stainless steel and can be mounted in the corner of any
room, hallway, elevator, or any 90 degree angle corner. It features
a 3.6mm lens with a built-in electronic shutter and has a 0.02 lux
rating with 420 line resolution. A 12V DC power supply is included.
The color version of this camera can be found under model number CVC-605CM.
Both the CVC-105CM and CVC-605CM can be field converted with a plexiglass
mirrored faceplate by retrofitting with model number BCC-MCM. Technical Specifications Resolution 420 line Minimum Illumination 0.02 lux -F- 1.6 Electonic Shutter Auto 1/60-1/100,000 sec. Number of Pixels 512 (H) x 492 (V) picture elements Image Device 1/3" B/W CCD Image sensor Number of Pixels 512 (H) x 492 (V) picture elements Scanning System EIA standard 525 TV lines 60 fields/sec Synchronizing System Internal Lens 3.6 mm Scanning Frequency Hor. 15.75 KHz Vert. 60 Hz Video Output Level 1.0 Vp.p 75 ohm Video S/N Ratio Greater than 46 dB Output Connections Video - RCA with BNC adapter, Power DC jack Operating Temperature 14ºF - 122ºF Humidity Within 95 % RH Power Requirement 12V DC Power supply included UL and CSA listed Power Consumption 150 mA Weight 1.4 lbs. Dimensions 4"L x 9"W x 7"H Housing 18 Gauge Stainless steel Lens Options 2.5, 6, 8,12mm |
