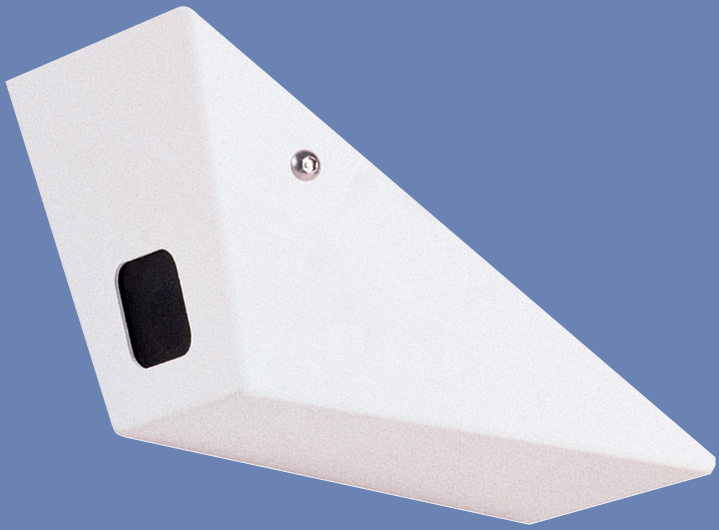

CVC-615CM/W- Color Ceiling to Wall Wedge Mount Camera

Our color 1/3" CCD ceiling to wall wedge mount camera is housed in 18 gauge white steel and can be mounted in any office area, lobby, hallway, elevator. It is ideal for inside buses, RV's and building exteriors due to its completely weatherproof housing. It features a 3.6mm wide angle lens with a built-in electronic shutter and has a 1.0 lux with 350 line resolution. A 12V DC power supply is also included. This camera is also available in a B/W version, CVC-115CM/W. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux F 1.6 Electonic Shutter auto 1/60 - 1/100,000 seconds Image Device 1/3" color CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System NTSC Color 525 line 60 fields/second Lens 3.6mm wide angle lens, horizontal 72º, vertical 53º Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14º F - 122º F Humidity Within 95% RH Output Video - RCA with BNC adapter, power - DC jack Power Supply Regulated 12V DC power supply included (UL and CSA listed) (PSW-5) Power Consumption 210 mA Weight 1.4 lbs. Dimensions 8"L x 3.25"W x 3"H Housing 18 gauge white stainless steel Lens Options 6, 8mm

CVC-115CM/W- B/W Ceiling to Wall Wedge Mount Camera

Our 1/3" B/W CCD ceiling to wall wedge mount camera is housed in 18 gauge white steel and can be mounted in any office area, lobby, hallway, elevator. It is ideal for inside buses, RV's and building exteriors due to its completely weatherproof housing. It features a 3.6mm wide angle lens with a built-in electronic shutter and has a 0.02 lux rating with 420 line resolution. A 12V DC power supply is also included. This camera is also available in a color version, CVC-615CM/W Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux -F- 1.6 Electronic Shutter Auto 1/60-1/100,000 sec. Number of Pixels 512 horizontal x 492 vertical Image Device 1/3" B/W CCD Image sensor Scanning System EIA standard 525 TV lines 60 fields/sec Synchronizing System Internal Lens 3.6 mm Scanning Frequency Hor. 15.75 KHz Vert. 60 Hz Video Output Level 1.0 Vp.p 75 ohm Video S/N Ratio Greater than 46 dB Output Connections Video - RCA w/RCA to BNC adapter, Power p DC jack Operating Temperature 14ºF - 122ºF Humidity Within 95% RH Power Requirement regulated 12V DC power supply included (UL and CSA listed) Power Consumption 150 mA Weight 1.4 lbs. Dimensions 8"L x 3.25"W x 3"H Housing 18-gauge white stainless steel Lens Options 2.5, 6, 8,12mm
