CVC-183W- B/W Dome Camera with White Painted Dome Housing, White

Our 1/3" B/W CCD dome camera can be mounted on the ceiling and offers unobtrusive surveillance with its' white housing. It has be rotated and has a tilt of +/- 90 degrees for maximum angle selection. It features a 0.2 lux with 400 line resolution. A 12V DC power supply is required (not included). Technical Specifications Resolution 400 line Minimum Illumination 0.20 lux Electronic Shutter 1/60 - 1/100,000 seconds Image Device 1/3" B/W CCD image sensor Number of Pixels 510 line horizontal x 492 line vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6mm, 78 degree diagonal Tilt Angle + / - 90 degrees Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Operating Temperature 14 degrees F - 113 degrees F Humidity Within 95% RH Output Video- RCA with BNC adapter, power - DC jack Power Supply Requires a 12V DC power supply Power Consumption 200 mA Dimensions 4"L x 4"W x 2.5"H Housing white

CVC-183- B/W Dome Camera with Black Painted Dome Housing, Black

CVC-645DC- Color Dome Camera

Our 1/4" color CCD dome camera with smoked housing can be mounted on the ceiling and offers unobtrusive surveillance with its' black housing. It has be rotated at 360 degrees for maximum viewing selection. It features a 1.0 lux with 350 line resolution and a 3.6mm wide angle lens with built-in electronic shutter. A 12V DC power supply is included. Technical Specifications Resolution 350 line Minimum Illumination 1.0 lux F 1.6 Electronic Shutter auto 1/60-1/100,000 second Image Device 1/4" color CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System NTSC Color 525 line 60 fields/second Lens/Angle of View 3.6mm, 74º horizontal, 57º vertical White Balance/Gain Control Auto Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Audio Output Level N/A Outputs Video - RCA with BNC adapter, power - DC jack Operating Temperature 14º F - 122º F Humidity Within 95 % RH Power Supply regulated 12V DC power supply (PSW-5) included (UL and CSA listed) Power Consumption 210 mA Dimensions 4.25"L x 4.25"W x 3"H Housing smoked in color, ABS plastic housing Weight 12 oz Lens Options 6, 8mm

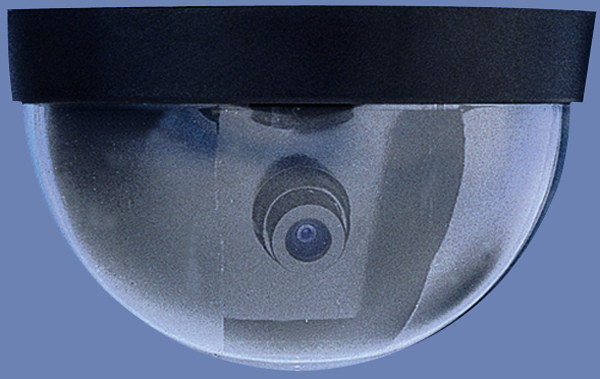

CVC-185DC- B/W Dome Camera

Our 1/3" B/W CCD dome camera with smoked housing can be mounted on the ceiling and offers unobtrusive surveillance with its' black housing. It can be rotated at 360 degrees for maximum viewing selection. It features a 0.02 lux with 420 line resolution and a 3.6mm wide angle lens with built-in electronic shutter. A 12V DC power supply is included. Technical Specifications Resolution 420 line horizontal - 350 line vertical Minimum Illumination 0.02 lux F-1.8 Electronic Shutter auto 1/60-1/10,000 seconds Number of Pixels 512 horizontal x 492 vertical Image Device 1/3" B/W CCD image sensor Scanning System EIA standard 525 lines 60 fields/second Lens/Angle of View 3.6mm wide angle lens, Hor. 72º, Vert 53º Scanning Frequency Hor. 15.75 kHz Vert. 60 Hz Video Output Level 1.0 Vp-p, 75 ohm Video S/N Ratio Greater than 46 dB Output/Connections Video - BNC, Power - DC jack Operation Temperature 14 degree F - 113 degree F Humidity Within 95% RH Power Requirements regulated 12V DC power supply included (UL and CSA listed) Power Consumption 200 mA Weight 10.5 oz Dimensions 4'L x 4"W x 2.5"H Housing Color ABS plastic/black Camera Mount Base Mounting Lens Options 2.5, 6, 8, 12mm
