CVC-6405DC- Color Varifocal Dome Camera
 |
Our 1/4" color varifocal dome camera features an
adjustable 4-9mm lens with a built-in electronic shutter. The camera
can rotate 360 degrees. It has a 1.0 lux with 350 line resolution.
A 12V DC power supply is included. A B/W version of this camera can
be found under model number CVC-1805DC. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux Electronic Shutter auto 1/60 - 1/100,000 second Image Device 1/4" color CCD image sensor Number of Pixels 510 horizontal x 492 vertical Scanner System NTSC color 525 line 60 fields/second Lens 4-9mm varifocal lens Scanner Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14 degrees F - 122 degrees F Humidity within 95 % RH Output Video- RCA with BNC adapter, power- DC jack Power Supply regulated 12V DC power supply (UL and CSA listed) Power Consumption 100 mA Weight 10.5 oz Dimensions 4.4"L x 4.4"W x 3"H Housing black and transparent dome housing |

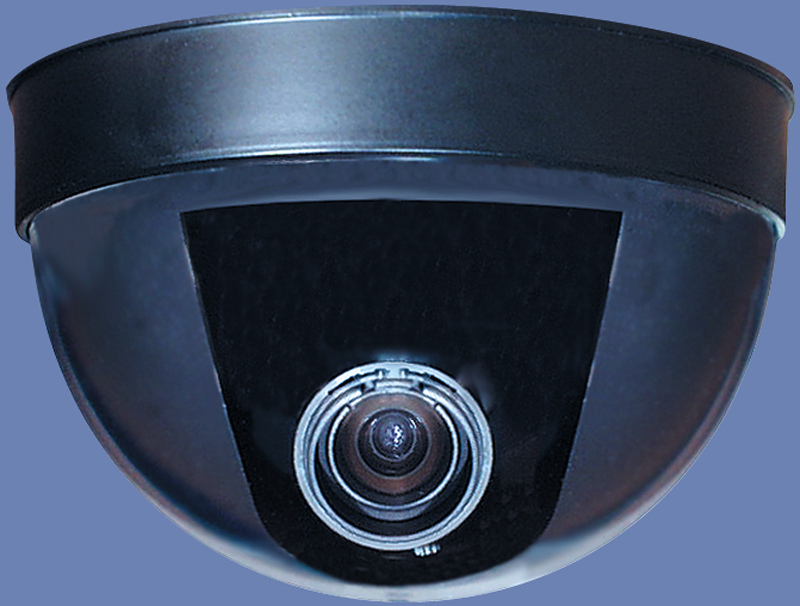

CVC-1805DC- B/W Varifocal Dome Camera
|
Our 1/3" B/W varifocal dome camera features an
adjustable 4mm-9mm lens with a built-in electronic shutter. The camera
can rotate 360 degrees. It has a 0.02 lux with 420 line resolution.
A 12V DC power supply is included. A color version of this camera
can be found under model number CVC-6405DC. Technical Specifications Resolution 420 line Minimum Illumination 0.02 lux Electronic Shutter 1/60 - 1/100,000 seconds Image Device 1/3" B/W CCD image sensor Lens 4-9mm varifocal Rotation 360 degrees Number of Pixels 512 horizontal x 492 vertical Scanning Frequency 15.75 kHz horizontal 60 Hz vertical Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Outputs Video- RCA with BNC adapter, power- DC jack Operating Temperature 14 degree F - 122 degrees F Humidity within 95 % RH Power Supply regulated 12V DC power supply (UL and CSA listed) Power Consumption 120 mA Dimensions 4.4"L x 4.4"W x 3"H Housing black and transparent dome cover Mount ceiling and wall mountable |
