CVC-6700- Designer Series Color Weatherproof Bullet with Sunshield, Black Housing

With a sleek look and miniature dimensions, the CVC-6700 is a great choice for fixed focus applications. It is complete with a protective sunshield and features multiple mounting options. This color camera has a 1/4" CCD with a 350 line resolution. It also has low power consumption and low illumination at 1.0 lux. It uses a built-in electronic iris and electronic shutter with a 2.9mm lens. An adjustable mounting bracket, RCA/BNC adapter, and a12V DC power supply are included. This camera is also offered in a silver (CVC-6700S) or white (CVC-6700W) housing color, along with B/W versions that can be found under our 1700 series. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux Electronic Shutter auto 1/60 - 1/100,000 second Image Device 1/4" color CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System NTSC color 525 line 60 field/second Lens 2.9mm lens Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14 degrees F - 122 degrees F Humidity within 95 % RH Output Video- RCA with BNC adapter, power- DC jack Power Supply regulated 12V DC power supply inlcuded (UL and CSA listed) power Consumption 100 mA Weight 6.1 oz Dimensions 2.94"L x 1.54"W x 1.38"H

CVC-6700W- Designer Series Color Weatherproof Bullet with Sunshield, White Housing

With a sleek look and miniature dimensions, the CVC-6700W is a great choice for fixed focus applications. It is complete with a protective sunshield and features multiple mounting options. This color camera has a 1/4" CCD with a 350 line resolution. It also has low power consumption and low illumination at 1.0 lux. It uses a built-in electronic iris and electronic shutter with a 2.9mm lens. An adjustable mounting bracket, RCA/BNC adapter, and a12V DC power supply are included. This camera is also offered in a black (CVC-6700) or silver (CVC-6700S) housing color, along with B/W versions that can be found under our 1700 series. Technical Specifications Resolution horizontal 350 line vertical 350 line Minimum Illumination 1.0 lux Electonic shutter auto 1/60 - 1/100,000 second Image Device 1/4" color CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System NTSC color 525 line 60 fields/second Lens 2.9mm Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14 degrees F - 122 degrees F Humidity within 95 % RH Outputs Video- RCA with a BNC adapter, power- DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 100 mA Weight 6.1 oz Dimensions 3.94"L x 1.54"W x 1.38"H Housing white, weatherproof, removale sunshield included

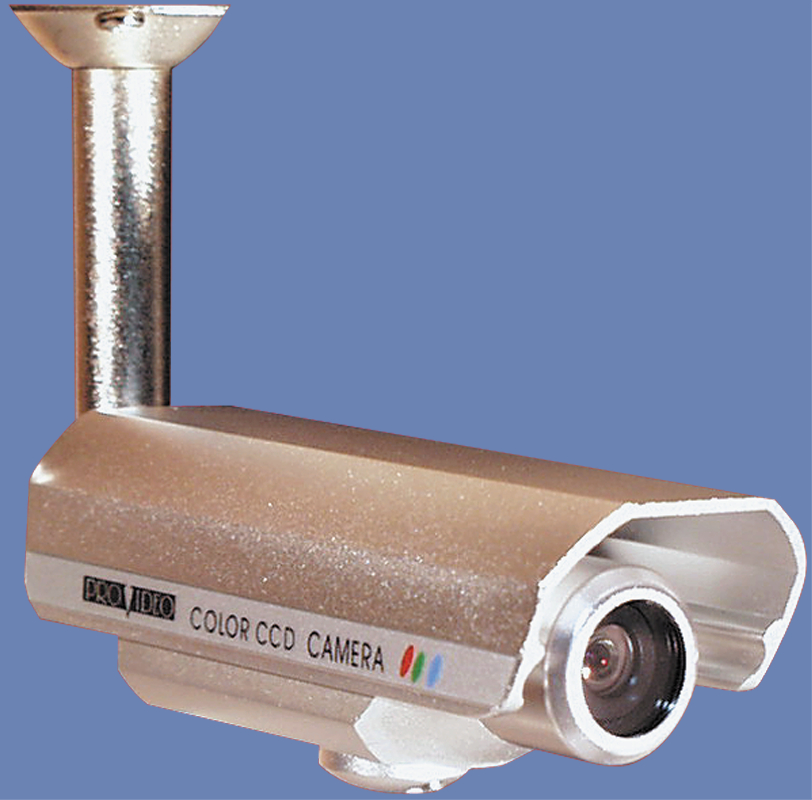

CVC-6700S- Designer Series Color Weatherproof Bullet with Sunshield, Silver Housing

With a sleek look and miniature dimensions, the CVC-6700S is a great choice for fixed focus applications. It is complete with a protective sunshield and features multiple mounting options. This color camera has a 1/4" CCD with a 350 line resolution. It also has low power consumption and low illumination at 1.0 lux. It uses a built-in electronic iris and electronic shutter with a 2.9mm lens. An adjustable mounting bracket, RCA/BNC adapter, and a12V DC power supply are included. This camera is also offered in a black (CVC-6700) or white (CVC-6700W) housing color, along with B/W versions that can be found under our 1700 series. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux Electronic Shutter auto 1/60 - 1/100,000 second Image Device 1/4" color CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System NTSC color 525 line 60 fields/second Lens 2.9mm Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14 degrees F - 122 degrees F Humidity within 95 % RH Output Video- RCA with BNC adapter, power-DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 100 mA Weight 6.1 oz Dimensions 3.94"L x 1.54"W x 1.38"H Housing silver, weatherproof, removable sunshield included

CVC-1700- Designer Series B/W Weatherproof Bullet with Sunshield, Black Housing

With a sleek look and miniature dimensions, the CVC-1700 is a great choice for fixed focus applications. It is complete with a protective sunshield and features multiple mounting options. This B/W camera has a 1/3" CCD with a 420 line resolution. It also has low power consumption and low illumination at 0.02 lux. It uses a built-in electronic iris and electronic shutter with a 3.6mm lens. An adjustable mounting bracket, RCA/BNC adapter, and a12V DC power supply are included. This camera is also offered in a silver (CVC-1700S) or white (CVC-1700W) housing color, along with B/W versions that can be found under our 6700 series. Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux Electronic Shutter 1/60 - 1/100000 seconds Image Device 1/3" B/W CCD image sensor Lens 3.6mm Number of Pixels 512 horizontal x 492 vertical Scanning Frequency 15.75 kHz horizontal 60 Hz vertical Video Output 1.0 Vp-p 75 ohm Video S/N RAtio greater than 46 dB Output Video - RCA with BNC adapter, Power-DC jack Operating Temperature 14 degrees F - 122 degrees F Humidity within 95 % RH Power Supply regulated 12V DC power supply (UL and CSA listed) Dimensions 3.94"L x 1.54"W x 1.38"H Power Consumption 100 mA Housing Color weatherproof, black, removable sunshield Weight 5.8 oz Lens Options Sold Separately and available upon request: 2.5, 6, 8, and 12mm

CVC-1700W- Designer Series B/W Weatherproof Bullet with Sunshield, White Housing

With a sleek look and miniature dimensions, the CVC-1700 is a great choice for fixed focus applications. It is complete with a protective sunshield and features multiple mounting options. This B/W camera has a 1/3" CCD with a 420 line resolution. It also has low power consumption and low illumination at 0.02 lux. It uses a built-in electronic iris and electronic shutter with a 3.6mm lens. An adjustable mounting bracket, RCA/BNC adapter, and a12V DC power supply are included. This camera is also offered in a silver (CVC-1700S) or black (CVC-1700B) housing color, along with B/W versions that can be found under our 6700 series. Technical Specifications Resolution 420 line Minimum Illumination 0.02 lux Electronic Shutter 1/60 - 1/100000 seconds Image Device 1/3" B/W CCD image sensor Lens 3.6mm Number of Pixels 512 horizontal x 492 vertical Scanning Frequency 15.75 kHz horizontal 60 Hz vertical Video Output 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Output Video-Rca with BNC adapter, power- DC jack Operating Temperature 14 degrees F - 122 degrees F Humidity within 95 % RH Power Supply regulated 12V DC power supply (UL and CSA listed) Dimensions 3.94"L x 1.54"W x 1.38"H Power Consumption 100 mA Housing Color White Weight 5.8 oz Lens Option Sold Separately available in 2.5, 6, 8, and 12mm

CVC-1700S- Designer Series B/W Weatherproof Bullet with Sunshield, Silver Housing

With a sleek look and miniature dimensions, the CVC-1700 is a great choice for fixed focus applications. It is complete with a protective sunshield and features multiple mounting options. This B/W camera has a 1/3" CCD with a 420 line resolution. It also has low power consumption and low illumination at 0.02 lux. It uses a built-in electronic iris and electronic shutter with a 3.6mm lens. An adjustable mounting bracket, RCA/BNC adapter, and a12V DC power supply are included. This camera is also offered in a black (CVC-1700) or white (CVC-1700W) housing color, along with B/W versions that can be found under our 6700 series. Technical Specifications Resolution 420 lines Minumum Illumination 0.02 lux Electronic Shutter 1/60 - 1/100000 seconds Image Device 1/3" B/W CCD image sensor Lens 3.6mm Number of Pixels 512 horizontal x 492 vertical Scanning Frequency 15.75 kHz horizontal 60 Hz vertical Video Output 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Output Video RCA with BNC adapter, power-DC jack Operating Temperature 14 degrees F - 122 degrees F Humidity within 95 % RH Power Supply regulated 12V DC power supply (UL and CSA listed) Dimensions 3.94"L x 1.54"W x 1.38"H Power Consumption 100 mA Housing Color Silver Weight 5.8 oz Lens Option 2.5, 6, 8, and 12mm

CVC-635CR- Color Weatherproof Bullet with Sunshield

Our 1/4" CCD color bullet camera has 1.0 lux with 350 line resolution. It features a 4.3mm lens wth built-in electronic iris and shutter. A 12V DC power supply is included. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux F 1.2 Electronic Shutter auto 1/60-1/100,000 seconds Image Device 1/3" color CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System NTSC Color 525 line 60 fields/second Lens/Angle of View 4.3mm, horizontal 74º vertical 57º Scanning Frequency horizontal 15.75 kHz vertical 60 Hz White Balance/Gain Control Auto Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Output Video- RCA with BNC adapter, power- DC jack Operating Temperature 23º F - 104º F Humidity Within 95 % RH Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 140 mA Weight 10 oz Dimensions 2.6"L x 1"W x 1"H Housing black metal Lens Options N/A

CVC-130R- B/W Weatherproof Bullet

Our fully encased 1/3" B/W CCD weatherproof bullet camera is great for any outdoor application where concealed surveillance is desired. It has a 0.02 lux rating with 420 line resolution. It features a 3.6mm wide angle lens and electronic shutter. The universal mounting bracket, cable, and 12V DC power supply are included. Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux Shutter Control Auto 1/100 - 1/1000 second Image Device 1/3" B/W CCD Image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 lines 60 fields/second Lens 3.6mm wide angle Scanning Frequency Horizontal 15.75 kHz Vetical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Outputs Video - RCA with BNC adapter, Power- DC jack Operating Temperature 15º F - 120º F Humidity Within 95% RH Power Requirements regulated 12V DC power supply included (UL and CSA listed) Power Consumption 100 mA Weight 2.2 oz Dimensions 2"L x 1"W x 1"H Housing/Color Brass-Black Finish Camera Mount Bracket Included

CVC-60W- Color Weatherproof Bullet Camera with Concealed Wiring, White, Bronze, Housing

Our weatherproof 1/3" color bullet camera has concealed wiring and a built-in electronic shutter. It is encased in white housing. It features a 1.0 lux with 350 line resolution. The exact camera in a bronze colored housing can be found under model number CVC-60. In addition, a B/W version of the camera can be found under model number CVC-30W. Technical Specifications Resolution 350 line Mimumim Illumination 1.0 lux Electonic Shutter auto 1/60 - 1/100,000 seconds Image Device 1/4" color CCD image sensor Scanning System EIA standard 525 line 60 field Lens 3.6mm Scanning Frequency 15.75 kHz horizontal 60 Hz vertical Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 46 dB Operating Temperature 14 degrees F - 130 degrees F Humidity within 95 % RH Output Video - RCA with BNC adapter, power - DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 100 mA Dimensions 7"L x 1.25"W x 1"H Housing white

CVC-30W- B/W Weatherproof Bullet Camera with Concealed Wiring, White Housing
CVC-30- B/W Weatherproof Bullet Camera with Concealed Wiring, Bronze Housing

Our weatherproof B/W bullet camera has concealed wiring and a built-in electronic shutter. It is encased in white housing. It features a 0.02 lux with 420 line resolution. The exact camera in a bronze colored housing can be found under model number CVC-30. In addition, a color version of the camera can be found under model number CVC-60W. Technical Specifications Resolution 420 line Number of Pixels 512 horizontal x 492 vertical Minimum Illumination 0.02 lux Electronic Shutter auto 1/60 - 1/100,000 Image Device 1/3" B/W CCD camera Scanning System EIA standard 525 line 60 fields Lens 3.6mm Scanning Frequency 15.75 kHz horizontal 60 Hz vertical Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 45 dB Output Video-RCA with BNC adapter, power-DC jack Operating Temperature 14 degrees F - 130 degrees F Humidity within 90 % RH Power Supply regulated 12V DC included UL and CSA listed Power Consumption 100 mA Dimensions 6"L x 2"W x 2"H Housing white Mount bracket Lens Option 2.5, 6, 8 12mm

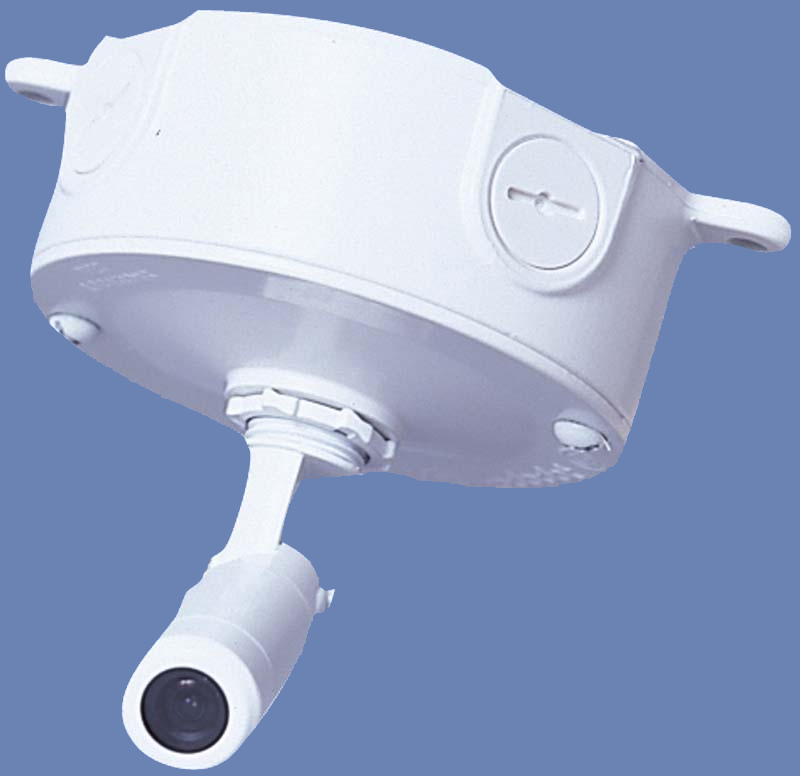

CVC-330W- Weatherproof B/W Bullet Camera with Cast Housing and Concealed Wiring, White
CVC-330- Weatherproof B/W Bullet Camera with Cast Housing and Consealed Wiring, Bronze

Our 1/3" B/W CCD weatherproof bullet camera has cast housing, concealed wiring and a built-in electronic shutter. It features a 0.02 lux with 420 line resolution. Compatible with standard electrical fittings. It is encased in a bronze colored housing. The exact camera in white housing can be found under model number CVC-330W. In addition, a color version of a similar camera can be found under model number CVC-60. A 12V DC power supply is included. Technical Specifications Resolution 420 line horizontal - 350 line vertical Minimum Illuminator 0.02 lux F 1.4 lens incandescent lighting Electronic Shutter auto 1/60-1/100,000 seconds Synchronizing System Internal Image Device 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 lines 60 fields/sec Lens 3.6mm, Hor.72º, Vert.53º Scanning Frequency 15.75 kHz horizontal - 60 Hz vertical Video Output Level 1.0 Vp.p 75 ohm Video S/N Ratio greater than 46 dB Output Video - RCA with BNC adapter, power - DC jack Operating Temperature 14º F - 130º F Humidity Within 95 % RH Power Requirements regulated 12V DC power supply included (UL and CSA listed) Power Consumption 100 mA Weight 1 oz. Dimensions 2 1/4" Dia. x 2 1/2" D Housing white, cast metal Mount 1/2" thread compatible with standard electrical boxes Lens Option 2.5 6,8, 12mm
