CVC-580BL- Color Weatherproof Ball Camera with audio

Our all weather 1/3" color CCD ball camera has an adjustable pivot for all angles. It has a 1.0 lux with a 350 line resolution. It features audio capabilities, a 3.6mm wide angle lens, built-in electronic iris, high speed electronic shutter, internal synchronization, and NTSC color scanning system. A 12V DC power supply is included. A version of this color ball camera without audio is available under model number CVC-575BL, along with a B/W version which can be found under model number CVC-360BC. Technical Specifications Resolution 350 lines Minimum Illumination 1.0 lux F 1.8 Electonic Shutter auto 1/60 - 1/100,000 seconds Image Device 1/3" color CCD image sensor Number of Pixels 510 horizontal x 492 vertical Scanning System NTSC Color TV System Lens 3.6mm, Hor. 72º, Vert. 53º Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p.75 ohm, 715mV, Sync-285mV Video S/N Ratio Greater than 46 dB Audio Output Level 300 mV at 600 ohm Operating Temperature 14 degrees F - 122 degrees F Humidity Within 95 % RH Output Video - RCA with BNC adapter, Audio- RCA, power- DC jack Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 275mA-300mA Weight 7 oz Dimensions 5.5"L x 4"W x 4"H Housing Grey weatherproof ABS plastic ball housing Lens Option 6, 8mm

CVC-570BCB- Color Miniature Weatherproof Ball Camera, Black Housing

CVC-570BC- Color Miniature Weatherproof Ball Camera, White Housing

Our 1/4" color weatherproof ball cameras adjust to multiple angles. A wedge mount adapter is provided to allow for a "down-the-wall" angle of view. This version features a 1.0 lux with 350 line resolution. A 12V DC power supply and the additional wedge mount are included. The camera is also offered with a black housing, which can be found under model number CVC-570BCB and a B/W version can be found under model number CVC-345BC. Technical Specifications Resolution 350 line Minimum Illumination 1.0 lux Electronic Shutter auto 1/60 - 1/100,000 seconds Image Device 1/4" color CCD image sensor Number of Pixels 510 horizontal x 492 vertical Scanning Device EIA standard 525 line 60 field Lens 3.6mm wide angle lens Scanning Frequency 15.75 kHz horizontal , 60 Hz vertical Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio greater than 45 dB Housing miniature weatherproof ball housing, white Dimensions 4"L x 3"W x 3"H Power Supply regulated 12V DC power supply included Mount mounting base and additional wedge mount

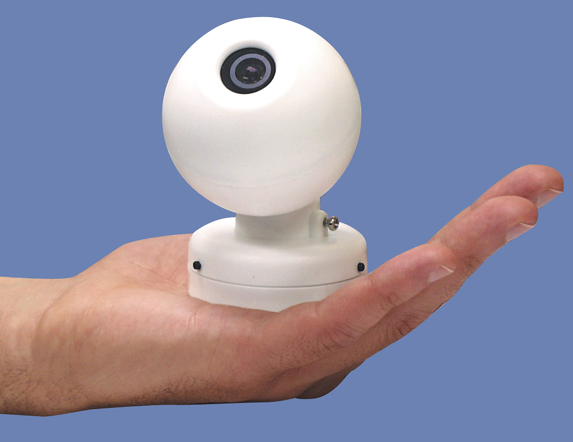

CVC-345BC- B/W Miniature Weatherproof Ball Camera, White Housing

Our 1/3" color weatherproof ball cameras adjust to multiple angles. A wedge mount adapter is provided to allow for a "down-the-wall" angle of view. This version features a 0.02 lux with 420 line resolution. A 12V DC power supply and the additional wedge mount are included. The camera is also offered with a black housing, which can be found under model number CVC-345BCB and a color version can be found under model number CVC-570BC. Technical Specifications Resolution 420 lines Minimum illumination 0.02 lux Electonic Shutter auto 1/60 - 1/100,000 Image Device 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6mm Video Output Level 1.0 Vp-p 75 ohm Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video S/N Ratio Greater than 46 dB Output Video - RCA with BNC adapter, power- DC jack Operating Temperature 14 degrees F - 122 degrees F Humidity Within 95 % RH Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 100mA Housing white miniature ball camera Dimensions 4"L x 3"W x 3"H Lens Option 2.5, 6, 8, and 12mm Mounts bass and additional wedge mount included

CVC-345BCB- B/W Miniature Weatherproof Ball Camera, Black Housing

CVC-575BL- Color Weatherproof Ball Camera

Our all weather 1/3" color CCD ball camera has an adjustable pivot for all angles. It has a 1.0 lux with a 350 line resolution. It features a 3.6mm wide angle lens, built-in electronic iris, high speed electronic shutter, internal synchronization, and NTSC color scanning system. A 12V DC power supply is included. A B/W version of this camera can be found under model number CVC-350BC and a version with audio can be found under model number CVC-580BL. Technical Specifications Resolution 350 line Minimum 1.0 lux F 1.8 Electronic Shutter auto 1/60-1/100,000 second Image Device 1/3" color CCD image sensor Scanning System NTSC Color TV System Lens 3.6mm wide angle lens Scanning Frequency horizontal 15.75 kHz vertical 60 Hz White Balance/Gain Control N/A Video Output Level 1.0 Vp-p.75 ohm composite, 715mV, Sync:285mV Video S/N Ratio Greater than 46 dB Operating Temperature 14º F - 122º F Humidity Within 95 % RH Outputs Video - RCA with BNC adapter, power- DC jack Power Requirements regulated 12V DC power supply included Power Consumption 275 mA - 300 mA Weight 7 oz Dimensions 5.5"L x 4"W x 4"H Housing Grey weatherproof ABS plastic ball housing Lens Options 6, 8mm

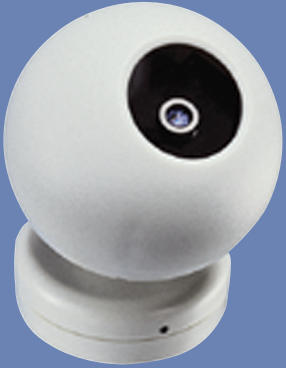

CVC-350BC- B/W Weatherproof Ball Camera

Our 1/3" B/W weatherproof ball cameras adust to all angles. They features a 0.02 lux with 420 line resolution. They have a high speed electronic shutter and internal synchronization. A self contained mounting bracket and a 12V DC power supply are included. The camera is also offered as a model with audio, which can be found under model number CVC-360BC and in a color version under model number CVC-575BL. Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux F 1.4 lens Incandescent lighting Electronic Shutter auto 1/60-1/100,000 second Image Device 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Lens 3.6mm wide angle lens, Hor. 72º, Vert 53º Scanning Frequency horizontal 15.75 kHz vertical 60 Hz Video Output Level 1.0 Vp-p 75 ohm Video S/N Ratio Greater than 46 dB Output/Connection Video - RCA with BNC adapter, power - DC jack Operation Temperature 14ºF - 122ºF Humidity Within 95 % RH Power Requirements regulated 12V DC power supply included (UL and CSA listed) Power Consumption 200 mA Weight 7oz Dimensions 5.5"L x 4"W x 4"H Housing/Color light gray ABS molded plastic Camera Mount Plate for ceiling/wall mount Lens Options 2.5, 6, 8, 12mm

CVC-360BC- B/W Weatherproof Ball Camera with Audio

Our 1/3" B/W weatherproof ball cameras with audio adust to all angles. They features a 0.02 lux with 420 line resolution. They have a high speed electronic shutter and internal synchronization. A self contained mounting bracket and a 12V DC power supply are included. The camera is also offered as a model without audio, which can be found under model number CVC-350BC, along with a color version that can be found under model number CVC-580BL. Technical Specifications Resolution 420 lines Minimum Illumination 0.02 lux F 1.4 lens Incandescent lighting Electronic Shutter auto 1/60 - 1/100,000 Image Device 1/3" B/W CCD image sensor Number of Pixels 512 horizontal x 492 vertical Scanning System EIA standard 525 line 60 fields/second Special adjustable to all angles Lens Type 3.6mm wide angle lens Power Supply 12V DC included Housing Color white Video Output Level 1.0 Vp-p 75 ohm Audio Output Level 300mv of 600 ohm Video S/N Ratio Greater than 46 dB Output Video - RCA with BNC adapter, power- DC jack Operating Temperature 14 degrees F - 122 degrees F Humidity Within 95 % RH Power Supply regulated 12V DC power supply included (UL and CSA listed) Power Consumption 200 mA Housing black usual size ball camera Dimensions 5.5"L x 4"W x 4"H Lens Option 2.5, 6, 8, and 12mm
