B/W High-Resolution Specialty Monitors

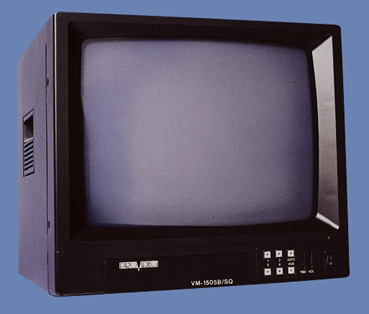

VM-1505B/SQ- 15 Inch B/W Monitor with Sequential Switcher

Our 15 inch B/W monitor has a sequential switcher that automatically displays video and sound from up to four CCTV cameras with video and audio output for VCR use. The switching is adjustable from 2 to 49 second intervals. It has a 1000 line resolution. It features an override for homing or bypass, up front controls, and LED indicators. Technical Specifications CRT 15" B/W Resolution Center: 1000 TV lines, Corner: 800 TV lines Scanning Frequency EIA 15.75 kHz horizontal, 60 Hz vertical Linearity +/- 10 % horizontal, +/- 10 % vertical Input Signal 1 Vp-p composite video, sync, negative Input BNC Connector, Switchable 75 ohm/High Sequential Time automatic switching (adjustable) 2 - 40 seconds Power Consumption 48 watts Video Gain 30 dB Input Voltage AC 110V/60 Hz Operating Temperature 32º F - 140º F Dimensions 12 1/2" H x 14 1/4" W x 13 1/4"D Weight 30 lbs Housing Color black metal

VM-1401BQS- 14 inch High Resolution Monitor with Built-In Real Time Quad and Time/Date Generator

Our 14 inch B/W monitor has a built-in real time quad-splitter. It features a date and time generator, up front controls, and solid state circuitry with an alarm input. It has a1000 line resolution and high resolution picture or data display. This model replaces the VM-1501BQS. Technical Specifications CRT 14 inch B/W Resolution Center: 1000 TV lines, Corner: 800 TV lines Scanning Frequency EIA 15.75 kHz horizontal, 60 Hz vertical Linearity +/- 10 % horizontal, +/- vertical Input Signal 1 Vp-p composite video, sync, negative Video Gain 30 dB Input BNC Connector, Switchable 75 ohm/High Sequential Time automatic switching (adjustable) 2 - 40 seconds Power Consumption 48 watts Input Voltage AC 110V/60 Hz Operating Temperature 32º F - 140º F Dimensions 13" H x 13" W x 13" D Weight 30 lbs Housing Color black metal
