B/W High-Resolution CCTV Monitors

VM-2001B- 20” B/W Monitor

Our 20 inch B/W monitor has a 1000 line high resolution. It has a high resolution picture or data display and a looping video input/output with switchable 75 ohm termination. It has an LED power light. It is UL listed. Technical Specifications CRT 20" B/W Resolution Center: 1000 TV lines, Corner: 800 TV lines Scanning Frequency EIA 15.75 kHz horizontal, 60 Hz vertical Linearity +/- 10 % horizontal, +/- 10 % vertical Input Signal 1.0 Vp-p composite, video, sync negative Video Gain 30 dB Input BNC Connector, Switchable 75 ohm/High impedance Power Consumption 28 watts Input Voltage AC 110V/60 Hz Dimensions 17" H x 10 1/4" W x 18 1/2" D Operating Temperature 32º F - 140º F Weight 40 lbs Housing Color black metal

VM-1701B- 17” B/W Monitor

Our 17 inch B/W monitor has a 1000 line with high resolution picture or data display. It features a looping video input/output with switchable 75 ohm termination. It has up front controls with a hinged cover, LED power light. It is UL-listed. Technical Specifications CRT Size 17" B/W Resolution Center: 1000 TV lines, Corner: 800 TV lines Scanning Frequency EIA standard 15.75 Hz horizontal, 48-62 vertical Linearity +/- 10 % horizontal, +/- 10 % vertical Input Signal 1 Vp-p composite, video, sync negative Video Gain 33 dB Input BNC Connector, Switchable 75 ohm/High impedance Power Consumption 35 watt Input Voltage AC 110V/60 Hz Operating Temperature 32 degrees F - 140 degrees F Dimensions 17" H x 16 1/2" W x 16 1/2" D Housing Color black metal

VM-1501B- 15” B/W Monitor

Our 15 inch B/W monitor has a 1000 line resolution with a high resolution picture or data display. It features up front controls with a hinged cover, looping video input/output with switchable 75 ohm termination, and a LED power light. It is housed in a black metal cabinet. It is UL and CSA listed. Technical Specifications CRT Size 15" Resolution Center 1000 TV lines, Corner: 800 TV lines Scanning Frequency EIA standard 15.75 kHz horizontal, 48-62 Hz vertical Linearity +/- 10 % horizontal, +/- 10 % vertical Input Signal 5-20 Vp-p composite video sync negative Video Gain 30 dB Video Gain 33 dB Input BNC connector, 75 ohm/high-switchable Power Consumption 48 watts Input Voltage AC 110V/60 Hz Operating Temperature 14 degrees F -104 degrees F Dimensions 12 1/2" H x 14 1/4" W x 14 1/2" D Weight 30 lbs Housing Color black metal

VM-1201W- 12” B/W Monitor, White Housing

Our 12 inch B/W high resolution monitor features an 800 line center resolution with a a high resolution picture or data display and a looping video input/output with switchable 75 ohm termination. It has an LED power light. It is housed in a rugged white metal cabinet. Technical Specifications CRT Size 12" Resolution Center: 1000 TV lines, Corner: 800 TV lines Linearity +/- 10 % horizontal, +/- 10 % vertical Scanning Frequency EIA standard 15.75 kHz horizontal, 48-62 Hz vertical Input Signal 5-20 Vp-p composite video sync negative Video Gain 33 dB Input BNC connector, 75 ohm/high-switchable Power Consumption 35 watt Input Voltage AC 110V/60 Hz Operating Temperature 32 degrees F - 140 degrees F Dimensions 12 1/4" H x 12 1/4" W x 12 1/4" D Weight 21 lbs Housing Color white metal and white plastic

VM-1201B - 12” B/W Monitor, Black Housing

Our 12 inch B/W high resolution monitor features an 800 line center resolution with a a high resolution picture or data display and a looping video input/output with switchable 75 ohm termination. It has an LED power light. It is housed in a rugged black metal cabinet. Technical Specifications CRT Size 12" Resolution Center: 1000 TV lines, Corner: 800 TV lines Scanning Frequency EIA standard 15.75 kHz horizontal, 48-62 Hz vertical Linearity +/- 10 % horizontal, +/- 10 % vertical Input Signal 5-20 Vp-p composite video sync negative Video Gain 33 dB Input BNC Connector, Switchable 75 ohm/high Power Consumption 35 watt Input Voltage AC 110V/60 Hz Operating Temperature 32º F - 140º F Dimensions 12 1/4"H x 12 1/4"W x 12 1/4"D Weight 21 lbs Housing Color black metal and white plastic

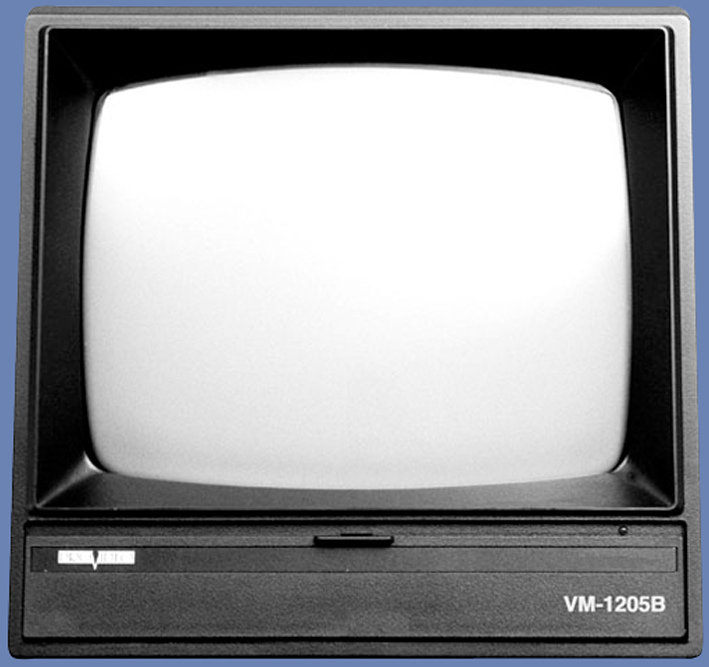

VM-1205B- 12” B/W Monitor with Audio

Our 12 inch B/W high resolution monitor is available with or without audio. It features 800 line center resolution with a a high resolution picture or data display and a looping video input/output with switchable 75 ohm termination. It has an LED power light. It is housed in a rugged black or white metal cabinet. Technical Specifications CRT Size 12" Resolution Center: 1000 TV lines, Corner: 800 TV lines Scanning Frequency EIA standard 15.75 kHz horizontal, 48-62 Hz vertical Linearity +/- 10 % horizontal, +/- 10 % vertical Input Signal 5-20 Vp-p composite video sync negative Input BNC connector, 75 ohm/high-switchable Power Consumption 35 watt Input Voltage AC 110V/60 Hz Operating Temperature 32 degrees F - 140 degrees F Dimensions 12 1/4" H x 12 1/4" W x 12 1/4" D Weight 21 lbs Housing Color black metal

VM-901B- 9” B/W Monitor

Our 9 inch B/W monitor has 800 line resolution. It features a high resolution picture or data display, looping video input/ouput with switchable 75 ohm termination, and an LED power light. It has up front controls with a hinged cover. It is UL and CSA listed. Technical Specifications CRT 9" B/W Resolution Center: 1000 TV lines, Corner: 800 TV lines Scanning Frequency EIA 15.75 kHz horizontal, 60 Hz vertical Linearity +/- 10 % horizontal, +/- 10 % vertical Input Signal 1.0 Vp-p composite, video, sync negative Video Gain 33 dB Input BNC Connector, Switchable 75 ohm/High impedance Power Consumption 35 watts Input Voltage AC 110V/60 Hz Operating Temperature 32º F - 140º F Dimensions 10" H x 9" W x 9 1/2" D Weight 13.5 lbs Housing Color black metal
