Color High-Resolution CCTV Monitors

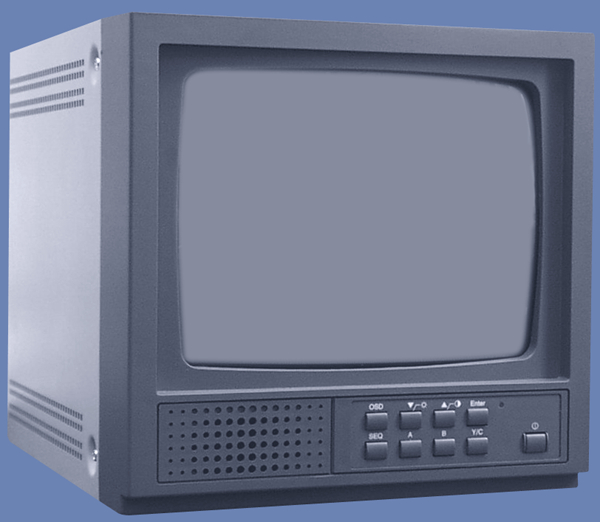

VM-1005C- 10” Color Monitor

• Built-In Sequential Switcher • Digital Controls • 500 lines resolution • On screen Display • 2 video inputs & Y/C Input • Front controls • Audio output 1W • Composite video with loop thru • 10 1/8”H x 10 1/8”W x 12”D

VM-1401C- 14” Color Monitor

Our 14 inch color monitor is NTSC color signal compatible. It has a 420 line resolution. It features one camera input, a hi/lo impedance switch, up front controls, and a composite video with loop through. It is UL and CSA listed. Technical Specifications CRT Size 14" color NTSC compatible Resolution Center: 1000 TV lines, Corner: 800 TV lines Scanning Frequency NTSC 15.75 kHz horizontal, 48-62 Hz vertical Linearity +/- 10 % horizontal +/- 10 % vertical Input Signal 1.0 Vp-p composite, video, sync, negative Video Gain 30 dB Input BNC Connector, Switchable 75 ohm/High impedance Power Consumption 60 watt Input Voltage AC 110V/60 Hz Operating Temperature 14º F - 104º F Dimensions 12 2/3" H x 14" W x 14 1/2" D Weight 20 lbs Housing Color black metal

VM-1705C- 17” Color Monitor with Audio

Our 17 inch color monitor has audio capability with more than a 520 line resolution. It features convenient front controls, looping video input/output, and comb filter for enhanced picture quality. It is encased in rugged metal cabinets. It is UL listed. Technical Specifications CRT Size 17" color Resolution Center: 1000 TV lines, Corner: 800 TV lines Linearity +/- 10 % horizontal, +/- 10 % vertical Input Signal 1 Vp-p composite, video, sync negative Video Gain 33 dB Input BNC Connector, Switchable 75 ohm/High impedance Power Consumption 35 watt Input Voltage AC 110V/60 Hz Operating Temperature 32 degrees F - 140 degrees F Housing Color metal Dimensions 16 3/8" H x 16 1/2" W x 15 1/4" D

VM-2105C- 21” Color Monitor with Audio

Our 21 inch color monitor has audio capability with more than a 450 line resolution. It features convenient front controls, looping video input/output, and comb filter for enhanced picture quality. It is encased in rugged metal cabinets. It is UL listed. Technical Specifications CRT Size 21" color Resolution Center: 1000 TV lines, Corner: 800 TV lines Scanning Frequency EIA standard 15.75 kHz horizontal, 60 Hz vertical Linearity +/- 10 % horizontal, +/- 10 % vertical Input Signal 1.0 Vp-p composite, video, sync negative Video Gain 33 dB Input BNC Connector, Switchable 75 ohm/High impedance Power COnsumption 35 watt Operating Temperature 32 degrees F - 140 degrees F Input Voltage AC 110V/60 Hz Housing Color metal Dimensions 19 1/2" H x 19 1/4" W x 18" D
