Multiplexers

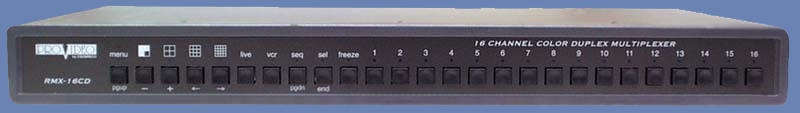

RMX-16CD- 16 Channel Color Duplex Multiplexer

Our 16 channel color duplex multiplexer allows the viewing of up to 16 image sources on one screen, while simultaneously recording full screen images on a VCR. It has an array of features. Viewing options include full-screen, mutli-screen, or sequential switching with adjustable dwell time. During VCR playback, full-screen and multi-screen viewing options are available. It is uniquely programmable for recording between 2 - 999 hours. It conveniently has a built-in time and date generator with an 8 character camera title function. The video loss alert and alarm detection are structured as two distinct sounds that feature an up to 100 record.

The best thing about our 16 channel duplex multiplexer is it is compatible with all standard and time lapse VCRs. There is also a 4 channel B/W (RMX-4B), 4 channel color (RMX-4C), and 9 channel color (RMX-9CD) version available.
Technical Specifications
Channels 16 channel
Maximum Image Sources 16 on one screen
Adjustable Program Recording 2-999 hours
Other Features Built-in time and date generator with 8 character camera title function
Alarm Functions Video loss alert and alarm detection with up to 100 record
Compatibility Compatible with all standard and time lapse VCRs
Looping Camera Outputs BNC, 16, composite video 1.0 Vp-p 75 ohms
Monitor Output BNC, 3, composite video 1.0 Vp-p 75 ohms
Viewing Options Full screen, multi-screen, or sequential switching with adjustable dwell time
Camera Inputs BNC, 16, composite video 1.0 Vp-p 75 ohms
VCR Output BNC, 1, composite video 1.0 Vp-p 75 ohms
Playback Input BNC, 1, composite video 1.0 Vp-p 75 ohms
Switch Input BNC, 1, (TTL Level)
Alarm Inputs 16, (TTL Level)
Alarm Output 1, Normally open or closed (relay output) contacts with shared common (24V DC 1A)
Recovery Output 1, (TTL active low)
RS-232 Interface D-SUB 25 pin female connector
Power Source 12V DC, 1.2 Amp
Power Consumption Maximum 9 watts
Weight 5 lbs 8 oz Net

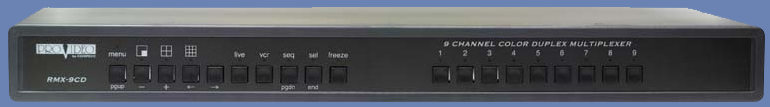

RMX-9CD- 9 Channel Color Duplex Multiplexer

Our 9 channel color duplex multiplexer allows the viewing of up to 9 image sources on one screen, while simultaneously recording full screen images on a VCR. It has an array of features. Viewing options include full-screen, mutli-screen, or sequential switching with adjustable dwell time. During VCR playback, full-screen and multi-screen viewing options are available. It is uniquely programmable for recording between 2 - 999 hours. It conveniently has a built-in time and date generator with an 8 character camera title function. The video loss alert and alarm detection are structured as two distinct sounds that feature an up to 100 record.

The best thing about our 9 channel duplex multiplexer is it is compatible with all standard and time lapse VCRs. There is also a 4 channel B/W (RMX-4B), 4 channel color (RMX-4C), and 16 channel color (RMX-16CD) version available.
Technical Specifications
Channels 9 channel
Maximum Image Sources 9 on one screen
Adjustable Program Recording 2-999 hours
Other Features Built-in time and date generator with 8 character camera title function
Alarm Functions Video loss alert and alarm detection with up to 100 record
Alarm Output 1, Normally openor closed (relay output) contacts with shared common (24V DC 1 A)
Compatibility Compatible with all standard and time lapse VCRs
Looping Camera Outputs BNC, 9, composite video 1.0 Vp-p 75 ohms
Monitor Output BNC, 3, composite video 1.0 Vp-p 75 ohms
Viewing Options Full screen, multi-screen, or sequential switching with adjustable dwell time
Camera Inputs BNC, 9, composite video 1.0 Vp-p 75 ohms
VCR Output BNC, 1, composite video 1.0 Vp-p 75 ohms
Playback Input BNC, 1, composite video 1.0 Vp-p 75 ohms
Switch Input BNC, 1, (TTL Level)
Alarm Inputs 9, (TTL Level)
Recovery Output 1, (TTL active low)
RS-232 Interface D-SUB 25 pin female connector
Power Source 12V DC, 1.2 Amps
Power Consumption Maximum 9 watts
Weight 5 lbs 8 oz Net
