Splitters/ Sequential Switchers

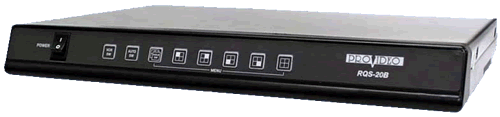

RQS-20B- Real-Time B/W Quad Splitter w/Alarm Interface

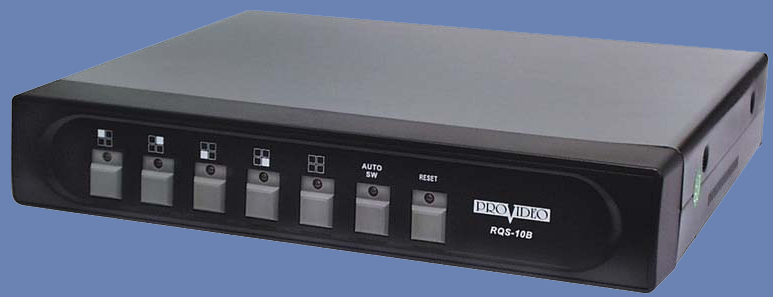

RQS-10B- B/W Quad Splitter

Our B/W quad splitter features full compression (digitally processed quad picture display). It also includes sequential switching with individual dwell time setting from 1 to 15 seconds, alarm input NC/NO setting, and individual gain control adjustment. When in quad screen mode, a color camera will present a B/W image. But when an individual color camera is brought up in full-screen mode, a color image can be viewed. The RQS-10B replaces the RQS-1B, 2, and 3.
Technical Specifications
Picture Refresh Rate 30 fields per second
Resolution (in pixels) 1024 x 512 for full screen
Video Format EIA or CCIR monochrome video signal NTSC video signal
Video Input 1.0 Vp-p adjustable, 75 ohm terminated, 4 BNC connectors
Video Output 1.0 Vp-p, 75 ohm, switched output, 1 BNC quad output, 1 BNC
Alarm Output NC/NO contacts, 1A/24V DC rated
Sequential Time Automatic switching- dwell time adjustable 1 to 15 seconds
Alarm Reset Time 1 to 20 seconds
Auto Scan Time 1 to 20 seconds
Power Source 12V DC/ 250 mA
Power Consumption 5 watt maximum

RQS-5C- Color Quad Splitter w/Alarm Interface

Our color quad splitter has a video compressor with alarm inputs. It features freeze frame on all cameras, a camera sequencing option, and a security lock out button. A 117VAC/12V DC power supply is included. Technical Specifications Signal Format EIA monochrome only(B/W) Input 4 inputs, 1.0 Vp.p adjustable, 75 ohm terminated Output (Switched) 1.0 Vp.p. 5% - 90% 75 ohm Output (Quad) BNC X 1 composite video 1.0 Vp.p 75 ohm Resolution (in pixels) 512 X 512 X 256 gray scale Power 12V DC adaptor included Alarm Input 4 inputs, 1 per camera NO/NC contacts Alarm Time 1-30 sec Alarm Hold five second minimum Display Rate 30 field/sec Dwell Time Adjustable 1.15 sec Video In/Out TTL logic compatible, BNC Alarm Out 9 pin D Sub-type connector X1 Genlock Capability N/A Operation Humidity 5% - 90 % Power consumption 5 watts max Dimensions 2.6"(H) X 13.5"(W) X 9.9"(D) Weight 4.9 lbs

RQS-6C- Color Quad Splitter

Our color quad splitter can simultaneously monitor up to 4 images on one screen. It features an option to watch full or quadrant pictures and adjustable gain controls for each camera input. Technical Specifications Input 4 Inputs, 1.0 Vp-p , 75 ohm Output Switched 1.0 Vp-p 5%-9%, 75 ohm Output Quad BNC x 1 composite video, 1.0 Vp-p 75 ohm Resolution 1024 x 512 pixels Power Supply 12V DC 500 mA Power Consumption Max 6 watts Operation Humidity 5%-9% Dimensions 8 3/5"W x 5 1/2"D x 2"H Weight 1lb 10 oz Viewing Options Full Screen or Quadrant

SQS-8B- 8 Position Sequential Switcher

Our eight position sequential video switcher features automatic sequential switching, which is adjustable from 0.5 to 30 seconds, override for homing and bypass, and an LED camera indicator. It is compatible with B/W and color cameras. It has a 8 inputs and 2 video outputs. Technical Specifications Input Impedance 75 Ohm Output Source Impedance 2.0 Vp.p Input to Output Isolation Greater than 40dB at 10MHz Propagation Display 20 Nanoseconds Sequence Internal 0.5 - 30 Seconds Switching Time Less than one microsecond Video Gain Unity Phase Linearity Better than 3º - 10MHz Video Frequency Response 2 Hz - 45MHz - 0.5dB Total Bandwidth Less than 1 Hz to beyond 10 MHz (3dB Point) Maximum Tilt 1% Video Crosstalk (Input to Output) Greater than 40dB down to 10 MHz Hum and Noise Greater than 55 dB down (Reference 0dB - 1 Vms) Video Switching Elements Static protected junction FET integrated circuits AC Input Voltage Power Consumption AC 120 volt, 6 watts Fuse 120V AC, 3AG 1/8 A slo blo Line cord Standard 3 conductor #18 AVG cable grounding plug Video Connectors BNC Audio connectors N/A Inputs 8 Sequence Position Indicators LED Display Dwell Time Rotary controlled, 0.5 to 30 seconds Switches four 3 position toggle, snap-action Dimensions 1-3/4"(H) X 12-1/4"(W) X 9-1/2"(D) Weight 4 lbs. 3 oz.

SQS-4B- 4 Position Sequential Switcher

Our four position sequential video switcher features automatic sequential switching, which is adjustable from 0.5 to 30 seconds, override for homing and bypass, and an LED camera indicator. It is compatible with B/W and color cameras. It has a 4 inputs and 2 video outputs. Technical Specifications Input Impedance 75 Ohm Output Source Impedance 2.0 Vp.p Input to Output Isolation Greater than 40dB at 10MHz Propagation Display 20 Nanoseconds Sequence Internal 0.5 - 30 Seconds Switching Time Less than one microsecond Video Gain Unity Phase Linearity Better than 3º - 10MHz Video Frequency Response 2 Hz - 45MHz - 0.5dB Total Bandwidth Less than 1 Hz to beyond 10 MHz (3dB Point) Maximum Tilt 1% Video Crosstalk (Input to Output) Greater than 40dB down to 10 MHz Hum and Noise Greater than 55 dB down (Reference 0dB - 1 Vms) Video Switching Elements Static protected junction FET integrated circuits AC Input Voltage Power Consumption AC 120 volt, 6 watts Fuse 120V AC, 3AG 1/8 A slo blo Line cord Standard 3 conductor #18 AVG cable grounding plug Video Connectors BNC Audio connectors N/A Inputs 4 Sequence Position Indicators LED Display Dwell Time Rotary controlled, 0.5 to 30 seconds Switches four 3 position toggle, snap-action Dimensions 1-3/4"(H) X 12-1/4"(W) X 9-1/2"(D) Weight 4 lbs 3 oz. .

SQS-4BA- 4 Position Sequential Switcher with Audio

Our four position sequential video switcher has audio. It features automatic sequential switching, which is adjustable from 0.5 to 30 seconds, override for homing and bypass, and an LED camera indicator. It is compatible with B/W and color cameras. It has a 4 inputs and 2 video outputs with audio ability. Technical Specifications Input Impedance 75 Ohm Output Source Impedance 2.0 Vp.p Input to Output Isolation Greater than 40dB at 10MHz Propagation Display 20 Nanoseconds Sequence Internal 0.5 - 30 Seconds Switching Time Less than one microsecond Video Gain Unity Phase Linearity Better than 3º - 10MHz Video Frequency Response 2 Hz - 45MHz - 0.5dB Total Bandwidth Less than 1 Hz to beyond 10 MHz (3dB Point) Maximum Tilt 1% Video Crosstalk (Input to Output) Greater than 40dB down to 10 MHz Hum and Noise Greater than 55 dB down (Reference 0dB - 1 Vms) Video Switching Elements Static protected junction FET integrated circuits AC Input Voltage Power Consumption AC 120 volt, 6 watts Fuse 120V AC, 3AG 1/8 A slo blo Line cord Standard 3 conductor #18 AVG cable grounding plug Video Connectors BNC Audio connectors RCA Inputs 4 Sequence Position Indicators LED Display Dwell Time Rotary controlled, 0.5 to 30 seconds Switches four 3 position toggle, snap-action Dimensions 1-3/4"(H) X 12-1/4"(W) X 9-1/2"(D) Weight 4 lbs. 3 oz.

SQS-4ALM- 4 Position Sequential Switcher with Alarm Inputs

Our four position video switcher features alarming inputs that automatically switch to any of the four cameras when triggered according to custom user settings that are adjustable sequencing intervals of 0.5 to 30 seconds. It offers an override for homing and bypass and an LED camera indicator. It has 4 inputs and 2 outputs. It is compatible with B/W and color cameras. Technical Specifications Input Impedance 75 Ohm Output Source Impedance 2.0 Vp.p Input to Output Isolation Greater than 40dB at 10MHz Propagation Display 20 Nanoseconds Sequence Internal 0.5 - 30 Seconds Switching Time Less than one microsecond Video Gain Unity Phase Linearity Better than 3º - 10MHz Video Frequency Response 2 Hz - 45MHz - 0.5dB Total Bandwidth Less than 1 Hz to beyond 10 MHz (3dB Point) Maximum Tilt 1% Video Crosstalk (Input to Output) Greater than 40dB down to 10 MHz Hum and Noise Greater than 55 dB down (Reference 0dB - 1 Vms) Video Switching Elements Static protect AC Input Voltage Power Consumption AC 120 volt, 6 watts Fuse 120V AC, 3AG 1/8 A slo blo Line cord Standard 3 conductor #18 AVG cable grounding plug Video Connectors BNC Audio connectors N/A Inputs 4 Sequence Position Indicators LED Display Dwell Time Rotary controlled, 0.5 to 30 seconds Switches four 3 position toggle, snap-action Dimensions 1-1/2"(H) X 17"(W) X 9-1/2"(D) Weight 6 lbs.

MV-9- 9 Channel Multiviewer with audio

Our multiviewer divides and displays up to 9 pictures on one monitor. It features a built-in clock, has the capabilities to view live or record, and has multiple-picture selection (1, 2, 4, 8, 9). It also features a green power system and CCD trigger input for home security applications. The RCA 3 color A/V cable, remote control, and two AA alkaline battieries are included. Works with B/W or Color Cameras Technical Specifications Signal Format B/W or Color Input 9 inputs, 1.0 Vp.p adjustable Output (Switched) 2 Vp.p 600 ohm - audio 1Vp.p 75 ohm, NSTC Output (Quad) 1.0 Vp.p. 600 ohm- Audio 1Vp.p Digital Memory 2m bit video Ram Power 12V DC adaptor included Alarm Input 4 inputs, 1 per camera N O/NC contacts Alarm Time 1-20 sec Alarm Hold N/A Display Rate 0.3 sec per frame Dwell Time N/A Video In/Out TTL logic compatible, RCA Alarm Out N/A Genlock Capability Built In Operation Humidity 5% - 90 % Power consumption 12 watts Dimensions 2.3/4"(H) X 14-1/2(W) X 10-1/2"(D) Weight 7 lbs.
