Our B/W closed circuit T.V. surveillance system is for video and audio surveillance. It features a 1/3" B/W camera with a fixed 4mm lens and audio (CVC-100L), a 12" B/W monitor with audio housed in black steel cabinet (VM-1205B), and a universal camera mounting bracket (CST-100). Both video cable and audio cable are 50 feet in length.
Technical Specifications
Operating Humidity within 95 % RH
Image Voltage (monitor) AC 110V/60 Hz
Power Consumption (monitor) 35 Watts
CRT Size(monitor) 12"
Deflection Angle (monitor) 90°
Operating Temperature (monitor) 32° -104°F
Dimensions (monitor) 12 1/4" H x 12 1/4" W x 12 1/4" D
Weight (monitor) 21 lbs.
Color (monitor) Black metal
Image Device (camera) 1/3" CCD image sensor interline transfer
Scanning System (camera) EIA standard 525 TV lines 60 fields/sec
Resolution (camera) Hor. 400 TV lines - Vert. 350 TV lines
Electronic Shutter (camera) Built-in
Lens/Angle of View (camera) 4mm Hor. 72°, Vert. 53°
Illumination (camera) 0.3 lux
Power Requirements (camera) 12V DC Power supply included UL and CSA listed
Operational Temperature (camera) 14°F - 122°F
Dimensions (camera) 2" H x 2 3/4" W x 4 1/2" D with lens
Weight (camera) 8 oz.
Housing /Color (camera) Grey camera/ Black monitor

Our B/W video observation system has a high tech CCD camera and monitor system. The monitor video and audio are in two different locations. It is ideal for home or work place usage and is weatherproof. It is an expandable system of up to two cameras and two monitors. The monitor with audio input has a 4 inch flat screen and can easily be mounted on the wall or with the tilt desk stand. The 1/3 inch CCD camera with audio input has an infrared lens and a high speed auto iris with a 0.1 lux to 20000 lux. It has a weather resistant construction. A 60 foot cable, camera mounting stand, and power supply are included.
Technical Specifications
Image Voltage AC 110v/60 Hz
Power Consumption 15 Watts
CRT Size 4" Flat
Deflection Angle 70°
Operating Temperature 32° -104°F
Operating Humidity within 95 % RH
Dimensions 8-1/4"(H) X 6-1/2"(W) X 2-1/2"(D)
Weight 2.5 lbs.
Color White Plastic
Image Device 1/3" CCD image sensor interline transfer
Scanning System EIA standard 525 TV lines 60 fields/sec
Resolution Hor. 400 TV lines - Vert. 350 TV lines
Electronic Shutter Built-in
Lens/Angle of View 4mm Hor. 74°, Vert. 53°
Illumination 0.1 lux Infrared LED
Power Requirements 12V DC Power supply included UL and CSA listed
Operational Temperature -4°F - 122°F
Dimensions 3-1/4"(H) X 2-1/4"(W) X 1-1/4"(D)
Weight 4 oz.
Housing /Color White ABS molded plastic

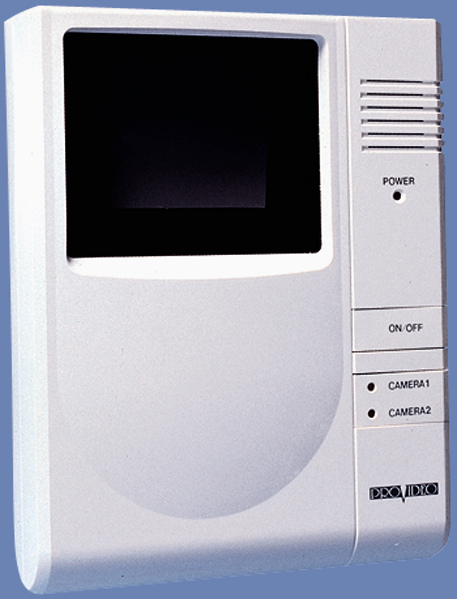

Our mini 4" B/W slim line monitor is to be used in the expansion of the VOS-100 Observation System. It featureas a two camera selector and one-way audio, two way manual selector, and an easy screw terminal connection. A wall mount bracket or tilt desk stand, 12V DC power supply, and MCA-401 cable assembly are included.

Our additional camera is used for expansion of our VOS-100, Video Observation System. A mounting bracket and 60 foot cable are also included.
