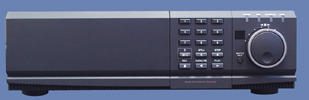

Our digital video recorder featuring a built-in four camera multiplexer is ready to go. The embedded system is LINUX based with a SCSI backup interface. The DVR-1/4 includes a 60 gigabyte hard drive with a second port for additional HDD. It also comes with remote client software for network operation. It accepts up to four cameras with looping output. It has adjustable recording and picture quality and search modes.
Technical Specifications
HDD 60 gigabyte with 2nd port for additional HDD
Camera Input 4 cameras looping
Video Input TV monitor:1 BNC, 1Vp-p composite (NTSC/PAL), s-video
Video Output 1/Quad/Switching
Compression Wavelet
Resolution Display- 720 x 480, recording- 720 x 480
Alarm Input 4 alarm input
Alarm Output 1 alarm output
OS Embedded LINUX
Frame display (live) 120 frame/second (4-channel real time) (NTSC), 100 frame/second (PAL)
P/T/Z control via RS-232C connection
Backup Interface SCSI
Frame Display Recording 60 fields/second
Recording Mode Normal, alarm, schedule, motion, repeat
Playback Mode Various speed playback using shuttle ring, field by field playback using jog dial.
Backup Mode Network backup (LAN) & External SCSI backup device
Picture Quality Super+, Super, High+, High, Mid+, Mid, Low+, Low
Search Mode Time search mode & alarm search mode
Input Power 110/230 VAC
Dimensions 10.25"L x 15"W x 2.5"H
Remote Control Included
Network Remote client software included

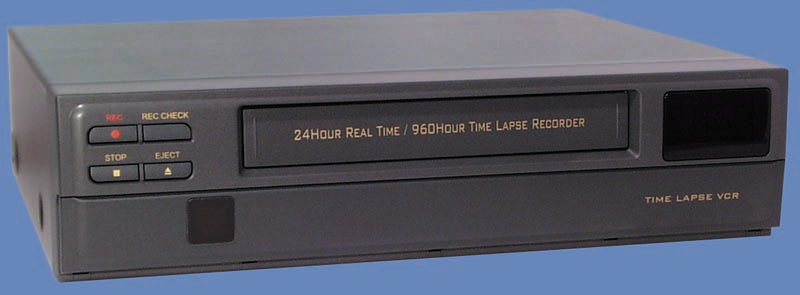

Our 960 hour time lapse VCR featuring 24 hour real-time recording is fully adjustable to record from 2 to 960 hours. It can synchronize with multiplexers. It also has an on-screen display, IR remote control, security lock, alarm event recording, alarm search and alarm play back, and panic event recording. It is capable of series recording with an additional VCR. It allows auto repeat recording.
