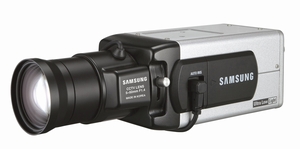

SHC-740
With
30 years of experience and technology in
the safeguard/security industry, SAMSUNG
TECHWIN introduces the SHC-740 low-light
level surveillance camera, which is designed
to provide the unmatched high quality and
performance in security.

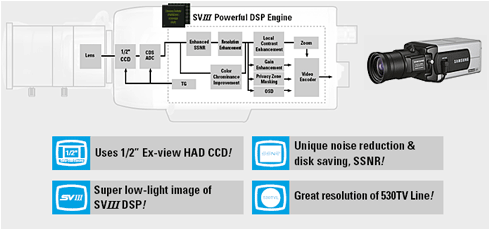

SHC-740 is a product of an optimum combination
of 1/2" Ex-view HAD CCD and Samsung SVIII
DSP chip that opened a new chapter in the
low-light level technology, and its high
resolution image surveillance function enables
the user to identify objects clearly even
in the dark. It provides the best quality
and
performance in those areas which require
a high degree of night-time surveillance
such as airports, harbors, roads, large
scale industrial sites and military establishments,
e.g, a truce line.
xcellent Color Super Lowlight
The new SHC-740 has a built-in 1/2" Ex-view
HAD CCD and also employs the Samsung SVIII
DSP chip resulting in a super low-light
level of 0.08Lux in normal color mode and
0.0006Lux@F1.2 in Sens-up
mode. Therefore, objects can be clearly
identified even in darkness.
Clear Image without Noise
SVIII chip employs SSNR to provide a clear
image by blocking video noise and preventing
dragging and stretching of image which is
normally hard to avoid in low-light level
surveillance. This makes easier
the identification of vehicle registration
number and objects and also reduces up to
70% the DVR capacity.
Superb High Resolution of 530TV Lines
By combining Samsung's experience in advanced
optical technology, 1/2" Ex-view HAD CCD
and SVIII DSP chip, horizontal resolution
has been achieved higher than 530TV lines
resulting in clearer image
quality and more accurate color presentation
compared to performance of present surveillance
cameras. Its S/N ratio is over 50dB, which
also contributes to clearer image quality.
KEY FEATURES
Ultra low light of 0.0006Lux at F1.2
High resolution of 530TV lines
Day & Night with ICR
Unique SSNR, super noise reduction technology
8X Digital D, Privacy Masking, Motion Detection
|
|

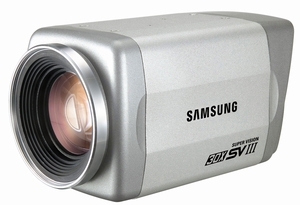

The
SDZ-330, a new powerful zoom camera incorporates
the famous SVIII, the latest version of the
SV (Super Vision) Series DSP system which is a real
breakthrough in the light-sensitive technology.
This SDZ-330 boasts the world's first and best 30X
optical auto focus zoom lens that ensures
ever precise and powerful close-up capability and
at the same time it achieves an outstanding trinity
that is an impressively enhanced low-light sensitivity
of 0.4 Lux @ F1.6 in normal color mode, a 126 times
wide dynamic range, and lastly sharper images with
530TV lines. It is simply and genuinely a perfect
answer in surveillance to a vast range of most demanding
locations.
Superior Low Light Performance of 0.4Lux@F1.6
in Color
Day/Night with ICR
The SDZ-330 camera achieves a minimum illumination
of an incredibly low 0.4Lux @ F1.6 in color and
an amazing 0.08Lux @ F1.6 in Sens-Up mode, which
ensures that the camera can recognize subjects even
in the extreme dark. It also has day and night (ICR)
capability, and gives colors even in significantly
low light conditions at full frame-rate when other
cameras already show B/W images.
126x Outstanding Wide Dynamic Range
The SVIII carries out an precise multiple histogram-only
for ultra-low-light imaging, but for wide dynamic
range applications. This realizes a 126 times extended
dynamic range which is equivalent to an
outstanding dynamic range of 52dB.
Super Clear Image of 520TVlines
The SDZ-330 achieves enhanced resolution of 520TV
lines with color sensor. The SVIII DSP implements
adaptive de-mosaic color reproduction algorithm,
and extracts more fine details from each pixel without
the typical aliasing effects, which is perfect for
low-light circumstances because it enables the camera
to 'see' clearly in the dark and even peer through
clouds or fog.
 |
KEY
FEATURES
Powerful Optical 30X Zoom ( 8X Digital )
High Sensitivity of 0.4 Lux at F1.6
126X Outstanding Wide Dynamic Range
Day & Night with ICR
High resolution of 520TV lines
Unique SSNR, super noise reduction technology
Privacy Masking, Motion Detection |
|
|
|
| SHC-740 |
|
|
|
NEW!!
 |
1/2" Ultra Low Light, High Resolution
Color Camera
- 1/2" Exview color CCD
with 410K pixels
- Removed noise & ghost
images with
SSNR
- Day & Night
with ICR (Infrared Cutfilter
Removal)
- High Res. of 530TV lines (Color),
570TV lines (B/W)
- 0.08 Lux at
F1.2 (Normal color mode)
0.01 Lux at
F1.2 (B/W)
- Privacy image masking with free
position: 4 zones
- Motion
Detection, WDR
- RS-232C remote control
-
OSD (On Screen Display)
- S/N ratio of
50dB
- Dual voltage : 24VAC /
12VDC
| |
STANDARD COLOR |
 SCC-130A
KEY FEATURES
Digital Signal Processing(DSP) Allows Better Picture Quality and
Advanced Function.
Built In RS232C Communication Protocol (Option H/W)
1/3 Inch IT Super HAD CCD(Approx. 270,000 Picture Elements) Offers
More Than 330 Lines of Horizontal Resolution.
Excellent signal-to-noise ratio of 48dB.
High Sensitivity With a Minimum Scene Illumination of 0.7 Lux(F1.2,50IRE).
BLC Covers Various Light Condition.
Two Alternative White Balance Control Modes: AUTO/MANUAL(R,B Gain
Control).
Accepts CS and C Mount Lenses Without Adaptor.
Accepts 2 Types of Auto Iris Lenses (DC Servo Type and VIDEO Servo
Type).
External Synchronization With Line-Lock.
No Interference From Magnetic or Electronic Fields.
Built-In Anti-Ground Loop Isolation Transformer.
|
HI-RES COLOR
|
 SCC-131A
KEY FEATURES
Digital Signal Processing(DSP) Allows Better Picture Quality and
Advanced Function.
Built In RS232C Communication Protocol (Option H/W)
1/3" IT Super HAD CCD 410,000 pixels
480 TV lines of horizontal resolution
Excellent Signal-to-Noise Ratio of 50dB.
High sensitivity with a minimum scene 11illumination of 0.5 lux(F1.2)
BLC Covers Various Light Condition.
Two Alternative White Balance Control Modes: AUTO/MANUAL(R,B Gain
Control).
Accepts CS and C Mount Lenses Without Adaptor.
Accepts 2 Types of Auto Iris Lenses (DC Servo Type and VIDEO Servo
Type).
External Synchronization With Line-Lock.
No Interference From Magnetic or Electronic Fields.
Built-In Anti-Ground Loop Isolation Transformer.
|
LOW LIGHT COLOR
|
 SCC-341
KEY FEATURES
Digital Signal Processing(DSP) Allows Better Picture Quality and
Advanced Function.
The 10-bit A/D Converter Offers Clean, Noiseless and Reliable Pictures.
1/2 Inch IT Super HAD CCD(Approx. 410,000 Picture Elements) Offers
More Than 480 Lines of Horizontal Resolution.
Excellent Signal-to-Noise Ratio of 48dB.
Extremely High Sensitivity With a Minimum Scene Illumination of
0.005lux (F1.2,50IRE, Sens Up X128).
On Screen Menus.
Selectable Windows for BLC.
BLC Covers Various Light Condition.
Three Alternative White Balance Control Modes: ATW/AWC/MANUAL(R,B
Gain Control).
Accepts CS and C Mount Lenses Without Adaptor.
Accepts 2 Types of Auto Iris Lenses (DC Servo Type and VIDEO Servo
Type).
External Synchronization With Line-Lock.
No Interference From Magnetic or Electronic Fields.
Built-In Anti-Ground Loop Isolation Transformer.
|
VERY LOW LIGHT, SUPER WIDE DYNAMIC COLOR |
 SCC-833
KEY FEATURES
The S-WDR Function Eliminates Interference by a Strong Back Light
Which Makes the Camera Picture Dark Such as Spot Light
Dual Shutter Speed Super Dynamic Range (3200%)
Motion Detectible
Digital Signal Processing (DSP)
1/3" IT Super HAD CCD 410,000 Pixels
480 Lines of Resolution
.06 Lux/F1.2 (Sens Up to x32)
DC/Video Servo Type Lens Supported
Built In RS-485 Communication Protocol
|
 SCC-835
KEY FEATURES
The S-WDR Function Eliminates Interference by a Strong Back Light
Which Makes the Camera Picture Dark Such as Spot Light
Dual Shutter Speed Sper Dynamic Range (3200%)
Motion Detectible
Digital Signal Processing (DSP)
1/2" IT Super HAD CCD 410,000 Pixels
480 Lines of Resolution
.03 lux/F1.2 (Sens up to x32)
DC/Video Servo Type Lens Supported
Built in RS-485 Communication Protocol
|
DAY/NIGHT |
 GV-CLRIR
KEY FEATURES
Day/Night Camera
Color: 330 Lines Resolution, B&W: 380 Lines Resolution
.025 Lux
Weatherproof Casing
IR Illumination
|
MOTORIZED ZOOM |
 SCC-421A
KEY FEATURES
Digital Signal Processing(DSP)
The 10-bit A/D Converter Offers Clean, Noiseless and Reliable Pictures
1/4" IT SUPER HAD CCD > 480 Lines of Horizental Resolution
Built-In X22 Zoom Lens (f=3.6~79.2mm) X10 Digital Zoom (Max. X220)
High Sensitivity With a Minimun Scene Illumination of 0.02Lux (Sens
Up X128)
BLC Covers Various Light Conditions
Excellent Signal-to-Noise Ratio of 50dB
Three Alternative White Balance Control Mode : ATW/AWC/MANUAL(3200K
PRESET,5600K PRESET,R,B Gain Control)
On Screen Menus
Power Consumption : DC 12V
|
WIRELESS |
 STEALTHCAM
KEY FEATURES
1/4", 300 Lines of Resolution, 1 Lux @F1.2, 3.5 mm
Built in 2.4 Ghz Wireless Transmitter
100 ft Range
Wireless Portability
Rechargable Battery Pack
Desktop or Wall Mountable
Easy Focusing
AC Adaptor Included
|
BULLET CAMERAS |
 TM-200RW
KEY FEATURES
1/3" and 1/4"
380 Lines of Resolution
.2 Lux
S/N Ration 48db
Electronic Stutter
3.6 mm Lens
RCA Video Connector and 2.1 Power Plug
Metal Housing
Mounting 1/4" 20 On Back
|
| TM-200RWI
KEY FEATURES
1/3" and 1/4"
380 Lines of Resolution
.2 Lux
S/N Ration 48db
Electronic Stutter
3.6 mm Lens
RCA Video Connector and 2.1 Power Plug
Metal Housing
Mounting 1/4" 20 On Back
|
|
