Home and Office Intercoms
The 4000/A series intercom allows for a single master with up to
18 total remotes. The master stations can be desk or surface wall
mounted and come in 5 sizes.
The Alpha Communications®/Elvox™ 4000/A series
intercom system is an economical system which allows a single
master to communicate selectively with up to 18 remote stations
(depending upon capacity of the master station). Magnetic memory
annunciators indicate which remote has placed a call to master.
All 4000/A series masters station have a built-in amplifier and
audible signal tone. They come with a desk/surface cabinet included,
and a built-in system power supply, which plugs directly into
a standard 120VAC wall outlet.
A wide variety of remote stations is available in ABS plastic,
extruded aluminum, stainless steel, polished brass and painted
finishes. Five (5) master models are available with capacities
of 1,3,6,12 and 18 remote stations, indicated by the last 2 digits
on the model number. Choose from models 4000/A01, 4000/A03, 4000/A06,4000/A12
or 4000/A18. The 4000/A series can have a single master station
only, and does not have any built-in door release capability.
|

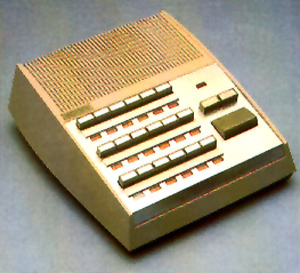

4000/A18 Master
|
FEATURES
Built-in Amplifier/Power Supply in Each Master Station
Powers Directly from 120VAC Wall Outlet
Built-in Call Tone Signal
Built-in Magnetic Memory Annunciators
Master can be Surface or Desk Mounted
Wide Variety of Weather-Resistant Remotes
Privacy Switch on Indoor Remotes
Switch Selectable Call Tone Indicator
Requires only 2 wires to each Remote Station
Large 18 Station Remote Capacity (on 4000/A18)
SPECIFICATIONS/DIMENSIONS
4000/A01 |
Height: |
3.00" (76mm) NOTE: At highest point on sloped cabinet
|
|
Width: |
5.50" (140mm) |
|
Depth: |
7.00" (178mm) When desk mounted (front to back) |
4000/A03 |
Height: |
3.00" (76mm) NOTE: At highest point on sloped cabinet
|
|
Width: |
5.50" (140mm) |
|
Depth: |
7.00" (178mm) When desk mounted (front to back) |
4000/A06 |
Height: |
3.25" (83mm) NOTE: At highest point on sloped cabinet
|
|
Width: |
7.50" (191mm) |
|
Depth: |
9.50" (241mm) When desk mounted (front to back) |
4000/A18 |
Height: |
3.25" (83mm) NOTE: At highest point on sloped cabinet
|
|
Width: |
7.50" (191mm) |
|
Depth: |
9.50" (241mm) When desk mounted (front to back) |
4050/001 |
Height: |
3.00" (76mm) NOTE: At highest point on sloped cabinet
|
|
Width: |
5.50" (140mm) |
|
Depth: |
7.00" (178mm) When desk mounted (front to back) |
4851 |
Height: |
7.50" (191mm) |
|
Width: |
4.00" (101mm) |
|
Depth: |
2.00" (52mm) when flush mounted |
4871 |
Height: |
7.75" (197mm) |
|
Width: |
4.25" (108mm) |
|
Depth: |
3.00" (76mm) from surface of wal |
|
Home and Office Intercoms
The 851/001 series intercom allows for up to 40 master handsets
to selectively call and speak with each other and a maximum of four
(4) simultaneous conversations.
The Alpha Communications®/Elvox™ 851/001 series
intercom system is a digital encoding/decoding multiple conversation
system for up to 40 master stations. Each model 851/001 master
handset can call up to 39 other masters, by means of easy, two
digit pushbutton calling. Up to four (4) completely private conversations
can take place at one time. Duplex voice switching eliminates
background noises. Because the encoding is digital, each unit
is a master, thus eliminating the need of a centralized exchange
unit, making this system easy to install and very cost effective.
Additional masters can be added at any time without the need for
any additional power supplies or central equipment, or adaptors.
Station numbers are assigned by means of programming clips. Other
features include: paging through a PA system, communication with
an outdoor station, electric door release, etc.
All 851/001 master stations have calling buttons numbered 1 through
10 and A through D. In addition, a paging and door release button
is standard. Calling to another master is accomplished by depressing
a letter (A-D) and a number (1-10), for a total of 40 possible
combinations. The model 851/001 master is designed to mount right
on the surface of the finished wall, or can be desk mounted with
an optional model 2/805 desk adaptor.
A wide variety of remote stations is available in ABS plastic,
extruded aluminum, stainless steel, polished brass and painted
finishes.
|
851/001 Series
|
FEATURES
40-Station Master to Master Systems Capacity
Up to Four (4) Simultaneous Private Talk Paths
Optional PA Paging and Door Speaker Capability
Optional Electric Door Release at Door Station
Simple 8 or 10 Conductor Loop Wiring
Masters can be Surface or Desk Mounted
Wide Variety of Weather-Resistant Remotes
SPECIFICATIONS
851/001 |
Height: |
8.75" (222mm) NOTE: When surface wall mounted. |
|
Width: |
5.00" (127mm) |
|
Depth: |
3.25" (83mm) |
856/800 |
Height: |
5.00" (127mm) NOTE: When surface wall mounted. |
|
Width: |
3.75" (95mm) |
|
Depth: |
3.00" (76mm) |
857/800 |
Height: |
9.75" (248mm) NOTE: When surface wall mounted. |
|
Width: |
7.50" (191mm) |
|
Depth: |
3.50" (89mm) |
2900/001 |
Height: |
7.40" (187mm) |
|
Width: |
3.95" (101mm) |
|
Depth: |
.50" (23mm) from surface of finished wall
2.00" (52mm) when flush mounted |
2970/001 |
Height: |
8.00" (204mm) |
|
Width: |
4.50" (115mm) |
|
Depth: |
2.75" (70mm) when surface mounted |
|
Home and Office Intercoms
Used primarily for upscale residential use, the Crown Jewel allows
the door or gate to be answered from any telephone in the house
Polished Brass or Stainless Steel finish.
|
Crown Jewel Series
|
The Crown Jewel system is a single-line telephone
entry system that connects directly to the resident's telephone
line. Thus, the residence is called without the system having
to dial through the telephone company's central office. As a result,
the Crown Jewel does not generate telephone charges either on
a monthly or per call basis.
The Crown Jewel is capable of carrying out the following functions:
1. Visitor entry: The visitor presses a "#" on the system's
keypad. This switches the resident's telephone line to the system
and rings the resident's telephone. The resident can then communicate
with the visitor and allow entry at the main door or gate by dialing
a "9". If the system is controlling a second door or gate, the
resident would dial "5" to allow entry at that location.
2. Call waiting: If the telephone is in use when the visitor
presses the "#" key, the resident will hear 2 short tones to signal
that a visitor is attempting to call. The resident can then dial
a "2"and the outside call in progress will be put on hold and
the telephone will be connected to the visitor. If the resident
allows entry (as described above), he/she will be automatically
switched back to the outside call in progress.
The resident can also deny entry, hang-up the visitor, and switch
back to the call in progress by dialing a "". Alternatively, if
the resident is talking with a visitor and the resident receives
a normal phone call, he/she will hear two short tones at which
point he/she can put the visitor on hold and switch over to the
normal phone call by dialing a "2" and back again to the visitor
by dialing a "2"again. If the resident forgets that either the
visitor or the normal phone call was left on hold and the resident
hangs up, the resident's phone will ring (up to three times) with
the call that was left on hold. The resident just picks up the
telephone and continues his/her conversation with the party that
was put on hold.
3. Entry codes: The resident (and anyone else he/she authorizes)
can have a unique 4-digit entry code. When this code is entered
on the keypad, it will cause the door to open. The Crown Jewel
can have up to 50 different entry codes programmed into it.
4. Gate/door monitoring: The installer can place sensors
on the gate or door that the system controls to monitor the status.
You can program the Crown Jewel to respond in one of the following
ways if the gate/door is forced open or is held open 60 seconds
after it should have been closed.
a. Alarm call: The system will first call a pre-programmed
outside telephone line and send a message via modem. If there
is no modem at the pre-programmed number or no answer after 60
seconds, the system will call the resident. If the resident does
not have a modem, he/she will hear a series of tones after answering
the phone. Pressing any key on their tone dial telephone will
acknowledge someone has received the alarm call and the system
will connect the answering phone to the Crown Jewel and activate
the audio so the answering phone can talk through the system (for
example, to ward off intruders). If you do not wish to be connected
to the Crown Jewel, do not press a key on the telephone keypad
and hang up the receiver.
b. Close a relay: If relay 2 is programmed as an alarm
relay, the system will close that relay to activate a device the
installer has connected to it (for example, a siren).
5. Free exit through a monitored gate: The system can provide
free exit through either controlled entry to allow exit without
causing a forced open door condition.
6. Auxiliary Keypad: An auxiliary keypad, located in a
smaller but matching housing to the Crown Jewel's, can be connected
to the Crown Jewel system for additional access control (for example,
to control the ability to exit through a gate).
7. Direct resident control of doors/gates: The controlled
doors or gates can be activated directly from the resident's tone
dial telephone.
8. Resident originated communications: The resident can
originate communications through the Crown Jewel at any time that
an outside call is not in progress by picking up his telephone
and dialing "##6". This call will terminate automatically in 60
seconds unless the resident hangs up sooner, or the resident extends
the talk time by pressing the "1" key.
9. Resident Remote Programming: The Crown Jewel system
can be remotely programmed from the resident's tone dial telephone.
10. Off-Site Remote Programming: The Crown Jewel system
can be remotely programmed from any outside tone dial telephone.
11. Remote Diagnostics: The Crown Jewel system can be called
using a terminal connected to a Hayes-compatible modem or personal
computer running terminal emulation software connected to a Hayes-compatible
modem. You can then access information concerning the system's
operating perimeters and the entry codes programmed into the system.
12. Call forwarding: The Crown Jewel system can be programmed
to call an outside telephone number when a visitor presses the
"#" key on the front panel of the system. This will enable you
to allow access to a visitor from a remote location.
13. Intercom Operation: The Crown Jewel system can be used
as an in-house intercom by allowing any phone in the house to
call other phones in the house using a distinctive ring. When
called, all phones on the same line will ring simultaneously.
The station intended to be answered will know it should answer
because the phones will ring the number of times equal to the
number assigned to that station by the resident. Additionally,
the Crown Jewel will provide this feature even if there is no
telephone line present from the phone company.
|
FEATURES
No monthly phone line rental or message unit fees.
Can be used with either Rotary or Touch-Tone service
50 Entry Codes Standard
Polished Brass or Stainless Steel Finish
Distinctive Ringing from 'outside' calls
Call Forwarding feature can call an off-site location when you
are not home.
Remote programming and relay activation
Call Waiting is Standard Feature
Four (4) Crown Jewel systems can be linked
SPECIFICATIONS
Crown Jewel Gate Unit: |
Height: |
4.50" (114mm) |
|
Width: |
7.50" (191mm) |
|
Projects: |
3.50" (89mm) |
Crown Jewel Central Controller: |
Height: |
16.0" (406mm) |
|
Width: |
10.0" (254mm) |
|
Projects: |
3.00" (76mm) |
Construction: |
Choose from Polished Brass or Stainless Steel.
|
Housings: |
None required. Fully surface mount construction.
|
Power Req.: |
12 volts AC or DC |
|
Home and Office Intercoms
Master to remote intercom. Has built-in electronic door chime and
momentary door release pushbutton. Surface mount units. Operates
on batteries or 6VDC adaptor.
The Alpha Communications® Duo-Com™ series intercom
system is our lowest cost master/remote intercom for door entry
or any other application requiring a single master and a remote
intercom station.
The SM202 master station has a built-in amplifier and electronic
door chime. It can easily mount right on the surface of the wall
(over a single gang electrical 'gem' box). A built-in momentary
door release button allows hook-up to your own low-voltage door
opener (depending upon transformer used). The optional PK407A
door opener relay allows connection to magnetic door locks or
other 'fail-safe' type door openers.
The SM202 is designed to be used with the OR202 remote station,
but a wide variety of remote stations is available in ABS plastic,
extruded aluminum, stainless steel, polished brass and painted
finishes.
The SM202 and OR202 remote are available in a packaged kit form,
along with 10 meters of connecting cable. Ask for our model #SM202K
Duo-Com™ kit.
|
SM202K
|
FEATURES
Requires only 2-Wires for Intercom and Electronic Chime
Powers from 4- 'C' Batteries or Optional DC Power Supply
Built-in Electronic Chime
Built-in Momentary Electric Door Release Pushbutton
Modern Styling
Master can mount over existing Door Chime Station
Wide Variety of Weather-Resistant Remotes
SPECIFICATIONS/DIMENSIONS
SM202: |
Height: |
7.50" (191mm) |
|
Width: |
5.13" (131mm) |
|
Projects: |
1.63" (42mm) from surface of wall |
OR202: |
Height: |
4.75" (121mm) |
|
Width: |
3.50" (89mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
|
Home and Office Intercoms
5 or 10 Button Handset Station. Available in White, Grey, Ivory
or Brown. Mounts right on Surface of Wall. Can be flush or desk
mounted with optional adaptors.

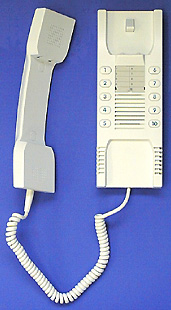

The Alpha Communications®/S.T.R. HT2006 Series
handsets are designed to work as a home or office type handset
intercom station or with or without paging capabilities for industrial
and commercial applications. Choose from White, Grey, Ivory or
Brown in either a 5-button (HT2006/5) or 10-button(HT2006/10)
version. Handset shown is the 10-button HT2006/10 model. These
attractive handsets easily surface mount right on the wall or
over a single gang flush electrical back box (or plaster ring).
Handsets can be changed to desk mount with the addition of a model
TZ1006 series desk adaptor, or can be flush mounted with the addition
of a Model UM1004 flush housing/trim assembly. All HT2006 series
handsets feature textured finish (to minimize scratches and fingerprints),
electric buzzer signaling (adjustable), heavy duty coiled cord
with strain relief and five (5) or ten(10) momentary button switches.
These switches can be used for calling from handset to handset,
door release, paging or other signaling functions, depending upon
system configuration. Signaling from a door speaker to the HT2006
handsets is accomplished with the addition of a low-cost Model
R2006 Alphatone chime adaptor.
|
HT2006 Series
|
FEATURES
Convenient Duplex Voice Operation
Easy Installation
Clear Voice Fidelity using Electret Condenser Microphones
Rugged and Reliable
Simple to Operate
Mounts Flush, Surface or Desk
Available in White, Grey, Ivory or Brown color
SPECIFICATIONS
Dimensions: |
Height: |
8.50" (218mm) Less Coiled Cord |
|
Width: |
3.20" (82mm) |
|
Projects: |
2.375" (56mm) from mounting surface |
Receiver: |
50mm round, 45 ohms, Model HK1. |
Microphone: |
Electret Condenser Type, Model MK1 series. |
Push-Buttons: |
(5) on Model HT2006/5 and (10) on Model HT2006/10.
|
Call Directory: |
Built-in to all HT2006 handsets. |
|
Home and Office Intercoms
Indoor Remote without Door Release Button. Used on Tek-Com Intercom
and Tek-Sound Music-Intercom systems. Has built-in slide type volume
control switch.

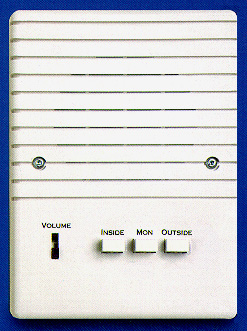

The Alpha Communications®/Tektone IR704B indoor
remotes are designed to work with the PK724 (Tek-Com) system amplifier
or the 'EK' series music-intercom masters. They can be flush,
surface or desk mounted, with the appropriate back box/housing.
The IR704B indoor remotes have three (3) buttons for Indoor Call,
Monitoring, and Door Answering from any IR704B station. A high/low/off
3-position volume slide switch is standard. No other IR704B station
can eavesdrop on another IR704B station, unless the Inside Speaker
or Monitor button is depressed. Any IR704B can call all of the
other IR704B's. Any IR704B (in monitor position) can be monitored
by all of the other IR704B's, and any IR704B can answer a voice
call from a door remote station.
The IR704B remotes are 4-wire type and must be used with a good
quality 2-twisted pair type cable (with at least 10-12 twists
per foot). The wire may be solid or stranded type. A maximum of
18 IR704B stations can be connected to a single PK724 amplifier.
|
IR704B
|
FEATURES
Built-in front and rear electronic door chime can signal at
all indoor remote locations
Exceptional voice fidelity
Easy Installation
Room-to-room communication and room monitoring
Optional music capabilities for background music
Mounts Flush, Surface or Desk (with appropriate backbox)
Clear Voice/Music Fidelity using high quality 3.50" speaker
Hands-free Reply from Door Station
Installs with Scrulox type tamper-resistant mounting screws
(provided)
Simple loop wiring from indoor remote to indoor remote
All-call standard between indoor remote stations
SPECIFICATIONS
Dimensions: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.50" (38mm) (When Flush Mounted) |
|
Projects: |
0.50" (13mm) from mounting surface |
Construction: |
High-Impact ABS plastic faceplate (White). |
Speaker/Mic: |
3.50" (89mm) paper cone speaker with voice/music
response, Model SK013. |
Mounting: |
Mounts flush to wall using IH101 flush back
box or IH102 flush mounting ring. Can be surface mounted
using IH700W surface back box (painted White). Can be desk
mounted using IH400A White plastic Desk Cabinet. |
|
Home and Office Intercoms
Indoor Remote with momen. Door Release Button. Used on Tek-Com Intercom
and Tek-Sound Music-Intercom systems. Has built-in slide type volume
control switch.

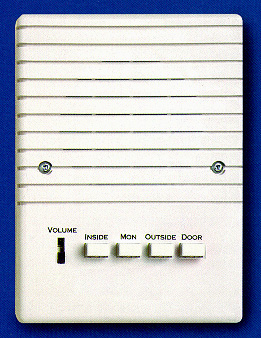

The Alpha Communications®/Tektone IR704BD indoor
remotes are designed to work with the PK724 (Tek-Com) system amplifier
or the 'EK' series music-intercom masters. They can be flush,
surface or desk mounted, with the appropriate back box/housing.
The IR704BD indoor remotes have four (4) buttons for Indoor Call,
Monitoring, Door Answering and Electric Door Release from any
IR704BD station. A high/low/off 3-position volume slide switch
is standard. No other IR704BD station can eavesdrop on another
IR704BD station, unless the Inside Speaker or Monitor button is
depressed. Any IR704BD can call all of the other IR704BD's. Any
IR704BD (in monitor position) can be monitored by all of the other
IR704BD's, and any IR704BD can answer a voice call from a door
remote station, and electrically release the electric door opener.
The IR704BD remotes are 6-wire type and must be used with a good
quality 2-twisted pair typecable (with at least 10-12 twists per
foot) and a separate 2-conductor #18AWG wire for the door release
circuit. The wire may be solid or stranded type. A maximum of
18 IR704BD stations can be connected to a single PK724 amplifier.
|
IR704BD
|
FEATURES
Built-in front and rear electronic door chime can signal at
all indoor remote locations
Exceptional voice fidelity
Easy Installation
Room-to-room communication and room monitoring
Optional music capabilities for background music
Mounts Flush, Surface or Desk (with appropriate backbox)
Clear Voice/Music Fidelity using high quality 3.50" speaker
Hands-free Reply from Door Station
Built-in Electric Door Release Button
Installs with Scrulox type tamper-resistant mounting screws
(provided)
Simple loop wiring from indoor remote to indoor remote
All-call standard between indoor remote stations
SPECIFICATIONS
Dimensions: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.50" (38mm) (When Flush Mounted) |
|
Projects: |
0.50" (13mm) from mounting surface |
Construction: |
High-Impact ABS plastic faceplate (White). |
Speaker/Mic: |
3.50" (89mm) paper cone speaker with voice/music
response, Model SK013. |
Mounting: |
Mounts flush to wall using IH101 flush back
box or IH102 flush mounting ring. Can be surface mounted
using IH700W surface back box (painted White). Can be desk
mounted using IH400A White plastic Desk Cabinet. |
|
Home and Office Intercoms
Indoor Remote without Door Release Button. Used on Tek-Com Intercom
and Tek-Sound Music-Intercom systems. Has built-in rotary type volume
control switch.
The Alpha Communications®/Tektone IR804B indoor
remotes are designed to work with the PK724 (Tek-Com) system amplifier
or the 'EK' series music-intercom masters. They can be flush or
desk mounted, with the appropriate back box/housing. They basically
work the same as the IR704B type stations, except they have a
larger speaker for improved voice and music fidelity.
The IR804B indoor remotes have three (3) buttons for Indoor Call,
Monitoring, and Door Answering from any IR804B station. A multi-level
rotary volume slide switch is standard. No other IR804B station
can eavesdrop on another IR804B station, unless the Inside Speaker
or Monitor button is depressed. Any IR804B can call all of the
other IR804B's. Any IR804B (in monitor position) can be monitored
by all of the other IR804B's, and any IR804B can answer a voice
call from a door remote station.
The IR804B remotes are 4-wire type and must be used with a good
quality 2-twisted pair type cable (with at least 10-12 twists
per foot). The wire may be solid or stranded type. A maximum of
eight (8) IR804B stations can be connected to a single PK724 amplifier.
|
IR804B
|
FEATURES
Built-in front and rear electronic door chime can signal at
all indoor remote locations
Exceptional voice fidelity
Easy Installation
Room-to-room communication and room monitoring
Optional music capabilities for background music
Mounts Flush, Surface or Desk (with appropriate backbox)
Clear Voice/Music Fidelity using high quality over-sized 6.25"
X 4.25" speaker
Hands-free Reply from Door Station
Installs with Scrulox type tamper-resistant mounting screws
(provided)
Simple loop wiring from indoor remote to indoor remote
All-call standard between indoor remote stations
SPECIFICATIONS
Dimensions: |
Height: |
7.00" (178mm) |
|
Width: |
9.25" (235mm) |
|
Depth: |
1.75" (45mm) (When Flush Mounted) |
|
Projects: |
1.00" (26mm) from mounting surface |
Construction: |
High-Impact ABS plastic faceplate (White). |
Speaker/Mic: |
6.25" (159mm) X 4.25" (108mm) paper cone speaker
with voice/music response, Model SK015. |
Mounting: |
Mounts flush to wall using IH110R flush mount
housing. |
|
Home and Office Intercoms
The PRO700 series is a microprocessor intercom with the maximum
capacity of 40-AA701 masters (shown) and/or remote stations. There
is no central exchange required.
The Alpha Communications® PRO700 series intercom
is designed for large system capacities of up to 40 intercom master
stations in total. You may combine masters and/or remote stations,
for an intermixed system that meets your exact needs. Each master
station has its own microprocessor circuitry, and requires no
central exchange. Simple, loop wiring makes the PRO700 system
really easy to install.
Choose from AA701 (Beige) desk/wall masters or AA702 surface/flush
industrial masters, and three (3) different remote stations for
1-call or 3-call capacities. Each master station features ALL-CALL
(standard), last number redial, privacy, call-back, call reply,
group call (up to 2 groups), camp-on, paging capbilities, hurry-up,
priority call, microphone cut-out, remote control capabilities
and features a convenient digital call display.
For private communication, the AA701 (and/or AA701A) master stations
may be removed from their desk or wall mounting, and may be hand-held
like a standard telephone. When used in this fashion, the loudspeaker
is automatically cut-off, and a private conversation may be held.
|
AA701 Master (shown)
|
FEATURES
Simple Loop Wiring up to 40 Total Master Stations
Microprocessor Controlled - No Central Exchange Needed
Digital Call Display at Each Master Station
Variety of Master and Remote Stations Available
ALL-CAll and GROUP-CALL are Standard Features
Optional Music Distribution is Available
|
Home and Office Intercoms

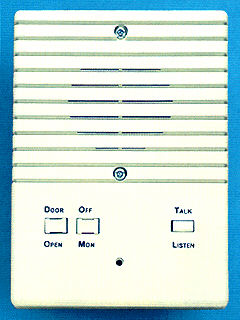

Tek-Door Master Station. Has built-in tone signal and voice amplifier.
Has momentary door release pushbutton. Mounts right on wall surface
or on optional desk cabinet.
The Alpha Communications®/Tektone (SM201B) Tek-Door
series intercom system is an economical master/remote intercom
for door entry or any other application requiring a single master
and a remote intercom station.
The SM201B master station has a built-in amplifier and tone signal
generator. It can easily mount right on the surface of the wall
(over a single gang electrical 'gem' box), or onto an optional
IH400A desk cabinet. A built-in momentary door release button
allows hook-up to your own 16VAC or 24VAC door opener (depending
upon transformer used). The optional PK407A door opener relay
allows connection to other voltages and types of door openers.
A wide variety of remote stations is available in ABS plastic,
extruded aluminum, stainless steel, polished brass and painted
finishes.
|
SM201B
|
FEATURES
Requires only 2-Wires for Intercom and Tone
Powers from 16VAC Transformer
Built-in Electronic Call Tone Signal
Built-in Electric Door Release Pushbutton
Modern Styling
Master can be Surface or Desk Mounted
Wide Variety of Weather-Resistant Remotes
SPECIFICATIONS/DIMENSIONS
SM201B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Projects: |
1.38" (36mm) from surface of wall |
IR100B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR510B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR610: |
Height: |
5.25" (134mm) |
|
Width: |
4.00" (102mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
OR510: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR502SS: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IH400A: |
Height: |
2.00" (51mm) from desk surface |
|
Width: |
5.00" (127mm) |
|
Projects: |
7.00" (178mm) |
IH700W: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.75" (45mm) from surface of wall |
OH700: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Projects: |
1.75" (45mm) from surface of wall |
|
Home and Office Intercoms
Duo-Com Master Station. Has built-in door chime and voice amplifier.
Has momentary door release pushbutton. Surface mounts. Operates
on batteries or 6VDC adaptor.
The Alpha Communications® Duo-Com™ series intercom
system is our lowest cost master/remote intercom for door entry
or any other application requiring a single master and a remote
intercom station. The SM202 master station has a built-in amplifier
and electronic door chime. It can easily mount right on the surface
of the wall (over a single gang electrical 'gem' box). A built-in
momentary door release button allows hook-up to your own low-voltage
door opener (depending upon trans-former used). The optional PK407A
door opener relay allows connection to magnetic door locks or
other 'fail-safe' type door openers. The SM202 is designed to
be used with the OR202 remote station, but a wide variety of remote
stations is available in ABS plastic, extruded aluminum, stainless
steel, polished brass and painted finishes. The SM202 is available
in a packaged kit form, along with the OR202 remote and 10 meters
of connecting cable. Ask for our model #SM202K Duo-Com™ kit.
|
SM202
|
FEATURES
Requires only 2-Wires for Intercom and Electronic Chime
Powers from 4- 'C' Batteries or Optional DC Power Supply
Built-in Electronic Chime
Built-in Electric Door Release Pushbutton
Modern Styling
Master can mount over existing Door Chime Station
Wide Variety of Weather-Resistant Remotes
SPECIFICATIONS/DIMENSIONS
SM202: |
Height: |
7.50" (191mm) |
|
Width: |
5.13" (131mm) |
|
Projects: |
1.63" (42mm) from surface of wall |
OR202: |
Height: |
4.75" (121mm) |
|
Width: |
3.50" (89mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
|
Home and Office Intercoms

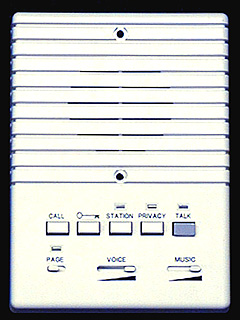

1-Call Tek-Select Master Station. Can be desk/surface mounted with
model IH400A cabinet. Optional All-Call and/or Music. Built-in electric
door release pushbutton.
The Alpha Communications®/Tektone (SM401) Tek-Select
II series intercom system is a fully featured, yet economical
intermix type master/remote intercom for any application requiring
a combination of up to two (2) master and/or remote stations,
or as a single-call master tied into a larger capacity system.
Each SM401 series master can call up to one (1) other master or
remote station. The SM401 series master stations have a built-in
amplifier and tone/buzz signal generator. They can be desk or
surface mounted using an optional IH400A desk/surface cabinet.
A built-in momentary door release button allows hook-up to your
own 16VAC or 24VAC door opener (depending upon transformer used).
The optional PK407A door opener relay allows connection to other
voltages and types of door openers.
A wide variety of remote stations is available in ABS plastic,
extruded aluminum, stainless steel, polished brass and painted
finishes and with or without lighted buttons and privacy capability.
The SM401's can be intermixed with the SM404, SM406 and SM411
series masters, for other system capacity.
|
SM401
|
FEATURES
Built-in Amplifier in Each Master Station
Powers from Low-Cost 24VAC Transformer
Built-in Electronic Call Tone Signal or Electronic Buzzer (selectable)
Built-in Electric Door Release Pushbutton on all Masters
Modern Styling
Masters can be Surface or Desk Mounted (with appropriate housings)
Wide Variety of Weather-Resistant Remotes
Built-in Multi-Color L.E.D. Call-in Indicator and Busy Lights
Privacy Switch
Dip Switch Selectable Features
Optional All-Call and/or Music Capability
SPECIFICATIONS/DIMENSIONS
SM401: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Projects: |
3.38" (86mm) from surface of wall when
surface mounted using IH400A |
IR100B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR141P: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR143P: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR141U: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR510B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR610: |
Height: |
5.25" (134mm) |
|
Width: |
4.00" (102mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
OR642: |
Height: |
5.25" (134mm) |
|
Width: |
4.00" (102mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
OR510: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR502SS: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR541U: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IH400A: |
Height: |
2.00" (51mm) from desk surface |
|
Width: |
5.00" (127mm) |
|
Depth: |
7.00" (178mm) |
IH700W: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.75" (45mm) from surface of wall |
OH700: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.75" (45mm) from surface of wall |
PK400: |
Height: |
5.50" (140mm) |
|
Width: |
5.00" (80mm) |
|
Depth: |
2.00" (51mm) from surface of wall |
|
Home and Office Intercoms

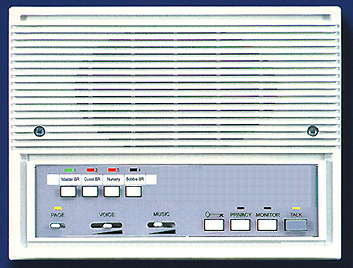

4-Call Tek-Select Master Station. Can be flush mounted with IH110R
flush housing, or can be desk/surface mounted with IH401 cabinet.
Optional All-Call and Music.
The Alpha Communications®/Tektone (SM404) Tek-Select
II series intercom system is a fully featured, yet economical
intermix type master/remote intercom for any application requiring
a combination of up to five (5) master and/or remote stations.
Each SM404 series master can call up to four (4) other master
or remote stations, selectively.
The SM404 series master stations have a built-in amplifier and
tone/buzz signal generator. They can be desk or surface mounted
using an optional IH401 desk/surface cabinet or they can easily
flush mount into the wall using an optional IH110R flush mount
housing. A built-in momentary door release button allows hook-up
to your own 16VAC or 24VAC door opener (depending upon transformer
used). The optional PK407A door opener relay allows connection
to other voltages and types of door openers.
A wide variety of remote stations is available in ABS plastic,
extruded aluminum, stainless steel, polished brass and painted
finishes and with or without lighted buttons and privacy capability.
The SM404's can be intermixed with the SM401, SM406 and SM411
series masters, for other system capacity.
|
SM404
|
FEATURES
Built-in Amplifier in Each Master Station
Powers from Low-Cost 24VAC Transformer
Built-in Electronic Call Tone Signal or Electronic Buzzer (selectable)
Built-in Electric Door Release Pushbutton on all Masters
Modern Styling
Masters can be Flush, Surface or Desk Mounted (with appropriate
housings)
Wide Variety of Weather-Resistant Remotes
Built-in Multi-Color L.E.D. Call-in Indicator and Busy Lights
Privacy Switch
Separate 'MONITOR' Channel
Dip Switch Selectable Features
Optional All-Call and/or Music Capability
SPECIFICATIONS/DIMENSIONS
SM404: |
Height: |
7.00" (178mm) |
|
Width: |
9.38" (239mm) |
|
Depth: |
2.00" (51mm) when flush mounted |
|
Projects: |
1.00" (26mm) from surface of wall when
flush mounted |
|
Projects: |
2.75" (70mm) from surface of wall when
surface mounted |
IR100B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR141P: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR143P: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR141U: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR510B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR610: |
Height: |
5.25" (134mm) |
|
Width: |
4.00" (102mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
OR642: |
Height: |
5.25" (134mm) |
|
Width: |
4.00" (102mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
OR510: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR502SS: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR541U: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IH400A: |
Height: |
2.00" (51mm) from desk surface |
|
Width: |
5.00" (127mm) |
|
Depth: |
7.00" (178mm) |
IH401: |
Height: |
2.00" (51mm) from desk surface |
|
Width: |
9.13" (232mm) |
|
Depth: |
7.00" (178mm) |
IH110R: |
Height: |
5.38" (137mm) |
|
Width: |
7.75" (197mm) |
|
Depth: |
2.00" (51mm) when flush mounted |
IH700W: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.75" (45mm) from surface of wall |
OH700: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.75" (45mm) from surface of wall |
PK400: |
Height: |
5.50" (140mm) |
|
Width: |
5.00" (80mm) |
|
Depth: |
2.00" (51mm) from surface of wall |
|
Home and Office Intercoms
6-Call Tek-Select Master Station. Can be flush mounted with IH110R
flush housing, or can be desk/surface mounted with IH401 cabinet.
Optional All-Call and Music.
The Alpha Communications®/Tektone (SM406) Tek-Select
II series intercom system is a fully featured, yet economical
intermix type master/remote intercom for any application requiring
a combination of up to seven (7) master and/or remote stations.
Each SM406 series master can call up to six (6) other master or
remote stations, selectively.
The SM406 series master stations have a built-in amplifier and
tone/buzz signal generator. They can be desk or surface mounted
using an optional IH401 desk/surface cabinet or they can easily
flush mount into the wall using an optional IH110R flush mount
housing. A built-in momentary door release button allows hook-up
to your own 16VAC or 24VAC door opener (depending upon transformer
used). The optional PK407A door opener relay allows connection
to other voltages and types of door openers.
A wide variety of remote stations is available in ABS plastic,
extruded aluminum, stainless steel, polished brass and painted
finishes and with or without lighted buttons and privacy capability.
The SM406's can be intermixed with the SM401, SM404 and SM411
series masters, for other system capacity.
|
SM406
|
FEATURES
Built-in Amplifier in Each Master Station
Powers from Low-Cost 24VAC Transformer
Built-in Electronic Call Tone Signal or Electronic Buzzer (selectable)
Built-in Electric Door Release Pushbutton on all Masters
Modern Styling
Masters can be Flush, Surface or Desk Mounted (with appropriate
housings)
Wide Variety of Weather-Resistant Remotes
Built-in Multi-Color L.E.D. Call-in Indicator and Busy Lights
Privacy Switch
Separate 'MONITOR' Channel
Dip Switch Selectable Features
Optional All-Call and/or Music Capability
SPECIFICATIONS/DIMENSIONS
SM406: |
Height: |
7.00" (178mm) |
|
Width: |
9.38" (239mm) |
|
Depth: |
2.00" (51mm) when flush mounted |
|
Projects: |
1.00" (26mm) from surface of wall when
flush mounted |
|
Projects: |
2.75" (70mm) from surface of wall when
surface mounted |
IR100B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR141P: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR143P: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR141U: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR510B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR610: |
Height: |
5.25" (134mm) |
|
Width: |
4.00" (102mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
OR642: |
Height: |
5.25" (134mm) |
|
Width: |
4.00" (102mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
OR510: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR502SS: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR541U: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IH400A: |
Height: |
2.00" (51mm) from desk surface |
|
Width: |
5.00" (127mm) |
|
Depth: |
7.00" (178mm) |
IH401: |
Height: |
2.00" (51mm) from desk surface |
|
Width: |
9.13" (232mm) |
|
Depth: |
7.00" (178mm) |
IH110R: |
Height: |
5.38" (137mm) |
|
Width: |
7.75" (197mm) |
|
Depth: |
2.00" (51mm) when flush mounted |
IH700W: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.75" (45mm) from surface of wall |
OH700: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.75" (45mm) from surface of wall |
PK400: |
Height: |
5.50" (140mm) |
|
Width: |
5.00" (80mm) |
|
Depth: |
2.00" (51mm) from surface of wall |
|
Home and Office Intercoms

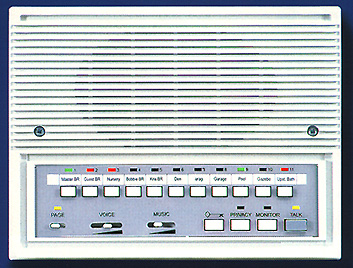

11-Call Tek-Select Master Station. Can be flush mounted with IH110R
flush housing, or can be desk/surface mounted with IH401 cabinet.
Optional All-Call and Music.
The Alpha Communications®/Tektone (SM411) Tek-Select
II series intercom system is a fully featured, yet economical
intermix type master/remote intercom for any application requiring
a combination of up to twelve (12) master and/or remote stations.
Each SM411 series master can call up to eleven (11) other master
or remote stations, selectively. The SM411 series master stations
have a built-in amplifier and tone/buzz signal generator. They
can be desk or surface mounted using an optional IH401 desk/surface
cabinet or they can easily flush mount into the wall using an
optional IH110R flush mount housing. A built-in momentary door
release button allows hook-up to your own 16VAC or 24VAC door
opener (depending upon transformer used). The optional PK407A
door opener relay allows connection to other voltages and types
of door openers. A wide variety of remote stations is available
in ABS plastic, extruded aluminum, stainless steel, polished brass
and painted finishes and with or without lighted buttons and privacy
capability. The SM411's can be intermixed with the SM401, SM404
and SM406 series masters, for other system capacity.
|
SM411
|
FEATURES
Built-in Amplifier in Each Master Station
Powers from Low-Cost 24VAC Transformer
Built-in Electronic Call Tone Signal or Electronic Buzzer (selectable)
Built-in Electric Door Release Pushbutton on all Masters
Modern Styling
Masters can be Flush, Surface or Desk Mounted (with appropriate
housings)
Wide Variety of Weather-Resistant Remotes
Built-in Multi-Color L.E.D. Call-in Indicator and Busy Lights
Privacy Switch
Separate 'MONITOR' Channel
Dip Switch Selectable Features
Optional All-Call and/or Music Capability
SPECIFICATIONS/DIMENSIONS
SM411: |
Height: |
7.00" (178mm) |
|
Width: |
9.38" (239mm) |
|
Depth: |
2.00" (51mm) when flush mounted |
|
Projects: |
1.00" (26mm) from surface of wall when
flush mounted |
|
Projects: |
2.75" (70mm) from surface of wall when
surface mounted |
IR100B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR141P: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR143P: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR141U: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IR510B: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR610: |
Height: |
5.25" (134mm) |
|
Width: |
4.00" (102mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
OR642: |
Height: |
5.25" (134mm) |
|
Width: |
4.00" (102mm) |
|
Projects: |
1.25" (32mm) from surface of wall |
OR510: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR502SS: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
OR541U: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
0.63" (17mm) when flush mounted |
IH400A: |
Height: |
2.00" (51mm) from desk surface |
|
Width: |
5.00" (127mm) |
|
Depth: |
7.00" (178mm) |
IH401: |
Height: |
2.00" (51mm) from desk surface |
|
Width: |
9.13" (232mm) |
|
Depth: |
7.00" (178mm) |
IH110R: |
Height: |
5.38" (137mm) |
|
Width: |
7.75" (197mm) |
|
Depth: |
2.00" (51mm) when flush mounted |
IH700W: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.75" (45mm) from surface of wall |
OH700: |
Height: |
7.00" (178mm) |
|
Width: |
5.00" (127mm) |
|
Depth: |
1.75" (45mm) from surface of wall |
PK400: |
Height: |
5.50" (140mm) |
|
Width: |
5.00" (80mm) |
|
Depth: |
2.00" (51mm) from surface of wall |
|
|
