The Alpha Communications®/Tektone DS100 Door Sentry™ series latching annunciator is designed for alarm indications of an opening or a closing of a dry contact, or for other emergency-call or panic type applications.

When a remote contact switch is activated, the DS100 annunciator will sound an electronic alarm (tone) and will light, indicating the location of the alarm. The tone signal can be silenced at the master station (and/or at the optional IR019B remote alarm indicator). The individual switch/light will remain lighted until the remote switch is reset, and the master switch is depressed twice, resetting the light at the master annunciator.

The DS100 master annunciator is modular and can be flush, surface or desk mounted, and is available in any size, in multiples of four (4) lights/switches. The DS100 features built-in tone signal speaker, and tone silence button and light. Model ST005D 'TEST' buttons are optional, but strongly recommended for lamp testing, on each annunciator module.

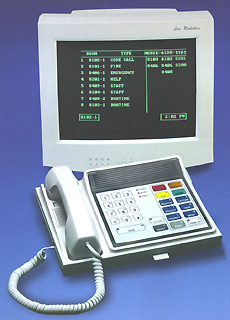

The Alpha Communications®/Tektone HC345C series Tek-Check-In™ microprocessor-based audio-visual emergency-call system provides senior citizen building occupants with unparalleled protection, while supplying management with a fully automatic mandated check-in procedure for each resident.

The HC345C addresses the needs of both resident and staff by combining ease of operation, accurate two-way voice communication, and an English language format prominently displayed on a high-resolution, compact CRT.

The HC345C system also includes masters with keys that are colored and grouped accordingly for ease of operation, and the handset is an integral part of the master station.

The heart of the system is the Central Processing Equipment (CPE). Standard features include dual system networking between two CPE's, the capacity for 256 addressable stations, and a serial port for adding a printer or management system (NC386). Electronic supervision is provided through the polling of the system four (4) times a second to verify proper system function and total system operation. An optional Uninterruptable Power Supply (UPS) (Model #PC-25) is offered to guard against power outages regardless of geographical location or harsh-weather environments.

The CRT master station combination provides all programming capability necessary to assign room numbering, set room status, and carry on a two-way voice communication with the residents, while prominently displaying English language system information on a high-resolution CRT. In addition to the handset, the master incorporates additional function keys which allow the operator to dispatch administrators/staff to appropriate rooms, if required. Each apartment station is attractively styled with a white faceplate to compliment any decor.

Each resident must check in each day by simply pressing a "Check-In" button prominently mounted on the (Model # IR345B) apartment Occupant Help Station (OHS). Each apartment may have a (Model #IR145B) remote OHS for emergency calling purposes only. This single "Check-In" action removes the resident's apartment designation from the CPE. If the resident does not check in, the apartment designation will remain on the system CRT at the conclusion of the check-in sequence. The supervising authority must contact the resident by using the voice-communication system or dispatch administrative personnel to verify the well-being of the resident. The check-in time sequence can be tailored to fit the needs of each facility and is password protected for security against misuse or tampering.

To maximize the installed cost-benefit of every HC345C system, we have added monitoring ability of ancillary devices such as apartment smoke detectors, door contacts, and emergency pull cords. The flexibility furnished by the HC345C programming alternatives, simple multiplexed wiring, and standard back box mounting all add up to a system that is unequalled in feature and function.

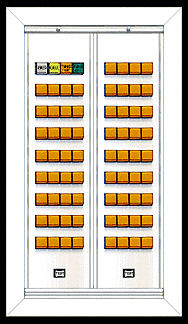

The Alpha Communications®/Tektone NC110N series audible/visual nurse-call system is designed for health-care applications where voice communication is not required.

When a remote station is activated, the NC110N annunciator will sound an electronic tone and will light, indicating the location of the call. The tone signal can be silenced at the master station (and/or at the optional LI150B remote duty station(s) for non-emergency calls). The individual switch/light will remain lighted until the remote station is reset at the point of origination only.

The NC110N master annunciator is modular and can be flush, surface or desk mounted, and is available in any size, in multiples of four (4) lights/switches. The NC110N features built-in tone signal, and tone silence button and light. Model ST005D 'TEST' buttons are used on each annunciator lamp module for lamp testing, and are required by U.L.

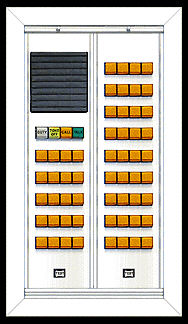

The Alpha Communications®/Tektone NC150N series audio-visual nurse-call system is designed for health-care applications where voice communication and visual indication is required. The NC150N system can support up to two (2) master stations per system. When a remote station is activated, the NC150N annunciator will sound an electronic tone and will light, indicating the location of the call. The tone signal can be silenced at the master station (and/or at the optional LI150B remote duty station(s) for non-emergency calls). The individual switch/light will remain lighted until the remote station is reset at the point of origination, or when answered by voice from the master station (for remotes with voice capability only). The NC150N master annunciator is modular and can be flush, surface or desk mounted, and is available in any size, in multiples of four (4) lights/switches. The NC150N features built-in tone signal, and tone silence button and light. Model ST005D 'TEST' buttons are used on each annunciator lamp module for lamp testing. A press-to-talk button enables the NC150N master to speak with any voice type remote station. Each NC150N master has a built-in amplifier with voice volume controls. An optional model TA150N handset, can be installed onto any master station, for private voice communication, or for very noisy environments.

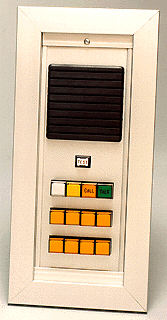

The Alpha Communications®/Tektone NC150R series Area of Refuge (Area of Rescue) system is designed to provide communication between the master intercom/annunciator station, and up to eight (8)(or more) area of refuge remote call-in stations. Calls are indicated at the master by visual and audible signals. The master station also has sensitive two-way communications and tone call functions. Remote call-in stations have sensitive two-way communications, call-placed and call-answered L.E.D. indicators. A maximum of eight (8) remote call-in stations may be connected to the standard NC150R master station. Larger capacity masters, or masters with desk or surface mounting, are available on a special-order basis. See our catalog section for the NC150N series, for other master options.

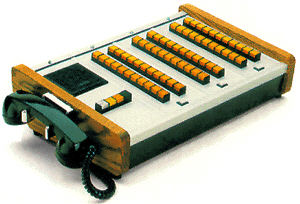

The Alpha Communications®/Tektone NC200N series audio-visual nurse-call system is designed for health-care applications where voice communication and visual indication is required. The NC200N system can support one (1) master station per system. When a remote station is activated, the NC200N annunciator will sound an electronic tone and will light, indicating the location of the call. The tone signal can be silenced at the master station (and/or at the optional LI150B remote duty station(s) for non-emergency calls). The individual switch/light will remain lighted until the remote station is reset at the point of origination, or when answered by voice from the master station (for remotes with voice capability only). The NC200N master annunciator is modular (in multiples of 20 lights) and can desk mounted only. If you need a flush or surface audio-visual master, use our NC150N series master. The NC200N features built-in tone signal, and tone silence button and light. Model ST005D 'TEST'buttons are used on each PM200/20N annunciator lamp module for lamp testing. A press-to-talkbutton enables the NC200N master to speak with any voice type remote station. Each NC200N master has a built-in amplifier with voice volume controls, nurse-follower function, and group call for groups of 10 (or less) remote voice stations. An optional model TA200N handset, can be installed onto any master station, for private voice communication, or for very noisy environments. NOTE: The TA200N must be ordered with the master station.

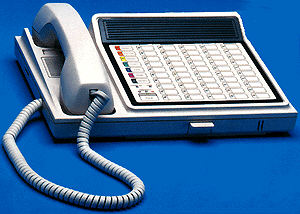

The Alpha Communications®/Tektone NC205 series Tek-Digi-Care™ microcontroller-based audio-visual nurse-call system provides all of the most desirable ergonomic features and functions required by today's health care administrative professionals, at an affordable price. The NC205 addresses the needs of both patient and nurse by combining ease of operation, accurate two-way voice communication, and a simple direct-select nurses' master station.

The NC205 system also includes masters that incorporate SPILL-PROOF membrane switches mounted on an attractive housing. The function keys are colored and grouped accordingly for ease of operation along side the selector LED keys. The handset is an integral part of the master station.

The heart of the system is the Central Equipment (CE). Each CE supports up to four (4) masters with or without master expanders. Total NC205 system capacity is up to 250 stations with the addition of the CE expander(s). All master stations have the ability to select specific areas and/or rooms, set patient priority level and room status, or change and reassign any station within the system. All user programming is a simple step by step procedure, using the color-coded function keys. Many of the more commonly used functions are easily selectable by depressing the appropriate keys on the SPILL-PROOF membrane switch.

Coupling its economic cost with all of the features and functions normally available only on computer driven systems, means you have chosen the most efficient and cost-effective nurse-call system on the market.

The Alpha Communications®/Tektone TA150N panel modules are designed to be installed into the OF200 series panel frames, for NC150N audio-visual nurse-call system masters only. They are used in addition to the standard speaker on the NC150N master module. When the handset is lifted from its cradle, the speaker/microphone is disconnected and conversation will be private. When ordering at the same time as an NC150N system master, you must add an additional panel width to the frame/housing. When adding to an existing NC150N master that does not have the TA150N handset, you must also add a model SK151N handset adaptor board. The TA150N feature a heavy duty ABS (Black) pay-phone style handset mounted onto an AM100 aluminum panel module, with a 'coiled' cord and 'live' handset cradle.
