CHF-650 color Hands Free Video Intercom System

The Cyrex Hands-Free Video Intercom System brings advanced innovative technology direct to your home or business.  The unit is not only convenient to use but also designed to provide an additional measure of security. For businesses/commercial applications where access control is a concern, the system safeguards the entrance while remaining user-friendly to guests.

The CHF series Hands-Free Color Intercom System is also the first in the industry to incorporate day and night camera to accommodate any lighting environment. The doorbell camera operates in color during daylight and black & white in low lighting conditions.  A built-in infrared provides supplemental lighting to enhance night viewing.

The system operates in color in daytime Automatically switches to B/W in low lighting conditions

With the hands-free intercom system, you can safely identify visitors before answering.  Simply by ringing the doorbell, the system transmits live audio and video directly to the monitor.  At that point, you have the choice to enable intercom communication with one touch of a button. With the built-in 32 picture memory function, each picture is date and time stamped to show you who was at your door even when you are not home.

The streamlined design of the hands-free intercom system is not only functional but also a stylish addition to any décor.

Installation is a quick and easy.  The system supports a wide range of wires from CAT5 (24AWG) to 18AWG.  Installers may also utilize the wires from an existing door chime.

The hands free intercom system is a non expandable One to One system.

A complete hands-free video intercom kit with monitor, doorbell camera, and power supply


Feature Highlights

  • Simple 2 wire installation (CAT5 ~ 18AWG)

  • 32 picture memory with date and time stamp

  • 4 inch color LCD monitor

  • 1/3” Color day and night CCD camera

  • Weatherproof door bell housing

  • Built-in LED illumination for night viewing

  • Adjustable speaker volume and chime volume

  • Illuminated buttons on monitor and doorbell

  • 92 degrees view angle

  • Door status (open/close) indicator

  • Remote door release

  • Installation is fast and effortless

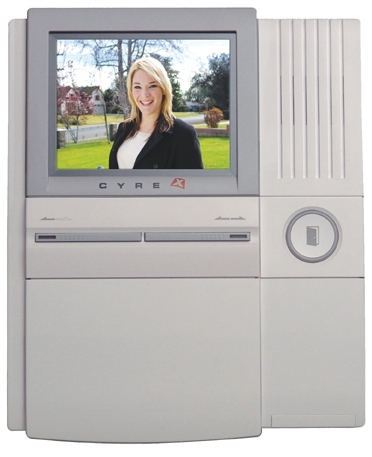

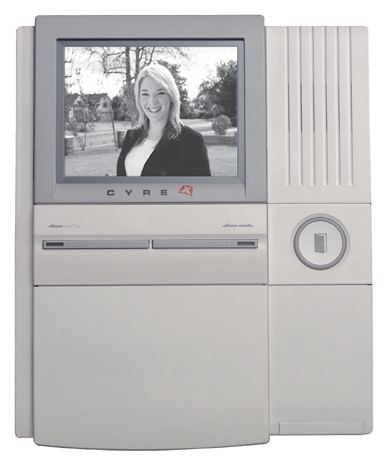

                                         COLOR MONITOR


  Monitor   4" Color LCD monitor




  Audio   Hands free / Bi-directional



  Wires   Two-wire (non-polarized) CAT5 to 18 AWG 300ft max



  Resolution   330 TV Lines



  Memory   Built-in 32 pictures (B/W) with date and time stamp



  Door Release   Dry contact rating 24V DC 1A max (Lock not included)



  Door Contacts   Dry contact terminals (Magnetic contacts not included)





  Controls   Brightness, Sharpness, Speaker and Chime volume



  Installation   Wall Mount



  Environment   Indoor



Dimensions   6.6" (W) x 8" (H) x 2.1" (D)


DOOR BELL CAMERA


  Power   From Monitor



  Audio   Bi-directional



  Camera   1/3" Color Day and Night CCD camera




  Lens   F3.6 92 Degrees



  Illumination   1.0 LUX PIR Supplement



  Resolution   380 Lines



  Control   Microphone volume




  Case   Weatherproof ABS plastic



  Temperature   30°F ~ 130°F



  Dimensions   3.9" (W) x 5.3" (H) x 1.4" (D)



  Installation   Surface Mount



  Environment   Outdoor
