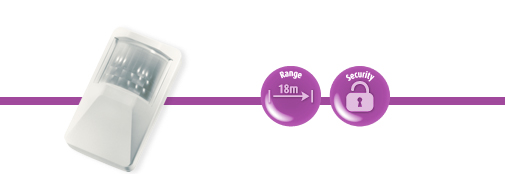

SRN-2000 ET

All-purpose Energy Management PIR Detector

SRN-2000 ET is the world's most flexible and reliable PIR detector, and is specially designed for energy management systems requiring high sensitivity and large detection coverage.

Implementing Visonic's noted Super-Red Lens Library^™ of 45 easy-to-change lenses, SRN-2000 ET offers the most outstanding selection of lenses, saving time and money on every installation.

A unique "test point" can be used for pinpoint adjustments of the detection pattern as well as for locating background interferences. Special lens masking material is provided to enable masking detection zones exposed to interfering sources, such as cold and hot air ducts or outlets, moving objects, etc.

SRN-2000 ET detector operates on 12 VDC supply and can be integrated into virtually any kind of energy management system. It provides exceptionally high sensitivity with a standard coverage pattern of 18m x 18m (60ft x 60ft) / 100^o that is adjustable even up to 35m x 35m  (115ft x 115ft) to cover very large rooms, halls, etc.

The output is provided via a form 1C relay equipped with an operation reset timer that can be adjusted between 1 second to 20 minutes. When used with stand-alone air conditioners, the detector can be set to have a 3-minute delay period until renewed activation of the relay is possible.

SRN-2000 ET is flexible in every respect, featuring 30^o vertical and horizontal adjustment; surface, corner or swivel bracket mounting; and installation height of up to 5 meters (17 ft).  Specially designed for energy management applications, the SRN-2000 ET detector implements state-of-the art detection technologies backed by 30 years of Visonic expertise and offering top-performance sensitivity, flexibility
and reliability.

SRN-2000 ET Features:

• Industry's best detection sensitivity, flexibility and product reliability
• 45 easy-to-change lenses including:
  • 9 wide-angle lenses with up to 140^o angle
  • 3 long-range corridor lenses with range up to 35m (120 ft)
  • 6 pet alley lenses
  • 3 finger curtain lenses
  • 8 special lenses with upward-looking zones for ceilings, stairs, and rooms
  • 10 unique combination lenses covering 2-3 rooms or long corridors
  • 6 solid curtain lenses
• Sensitivity and range adjusted for optimum detection
• Form 1C relay output with activation time adjustment from 1 second to 20 minutes
• Special 3-minute inhibit timer prevents damage to stand-alone air-conditioners
• 30^o vertical and horizontal adjustment
• Installation height: up to 5m (0-17ft)
• Surface, corner, flush or swivel bracket mounting
• 12 VDC power supply
