PIR - Quad

Next QES

True Digital PIR Detector with Quad Element Sensor

Next^® QES employs a Quad Element Sensor for enhanced detection accuracy, sensitivity and product reliability in general purpose applications. It implements a whole new generation of patented technologies including FM Digital Signal Processing (FM-DSP), "True Motion Recognition"^™ with Fuzzy Logic algorithm (TMR), and state-of-the-art 3D cylindrical optics.

The result is the industry's best detection accuracy, false alarm immunity and ultimate long term reliability – in an attractive, easily installed device designed for any home or office environment.

Next QES Features:

• Quad Element Sensor for enhanced detection accuracy and sensitivity
• Long-term stability and reliability thanks to advanced true digital FM processing
• Industry's best catch performance based on proprietary Target Specific Imaging^™ and 3D cylindrical optics
• Ultimate false alarm immunity based on patented True Motion Recognition with exceptionally high sampling rates and "Event Verification" algorithm
• 12m (40 ft) 90^o multiple-curtain coverage with "wall" creep zone
• Remote test capabilities
• Solid-state relay for silent trouble-free operation
• Fast and easy adjustment-free installation
• Attractive sleek design suitable for any home or office environment
• Meets EN50131-2 European standards

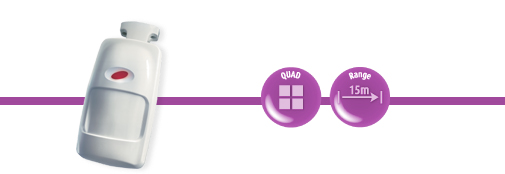

Discovery Quad

The Twin-channel Quad Detector for Professionals

Discovery Quad is a twin-channel digital PIR with True Quad Logic (TQL) processing, designed to successfully prevent false alarms in extremely harsh environments including commercial and light industrial areas.

Discovery Quad combats false alarms better than any other detector by combining two completely separate dual-element PIR detectors positioned in a unique Quad orientation. Both PIR detectors operates simultaneously, employing Visonic's patented "True Motion Recognition™" TMR digital signal processing (DSP) and Fuzzy Logic Quad algorithms.

Discovery Quad Features:

• Twin PIR real Quad Digital detector with True Quad Logic (TQL)
• Long-term stability and reliability thanks to advanced true digital processing
• Ultimate false alarm immunity based on patented "True Motion Recognition" (TMR) with "Event Verification" and Fuzzy Logic algorithms
• 15m x 15m (50ft x 50ft) high sensitivity coverage
• Sealed optics protects from insects and air currents
• Integral swivel bracket for ceiling or wall mounting, simplifies installation and control of the detection pattern
• Durable and elegant design
• Suitable for home, warehouse, commercial and industrial harsh environment applications
