Seco-Larm

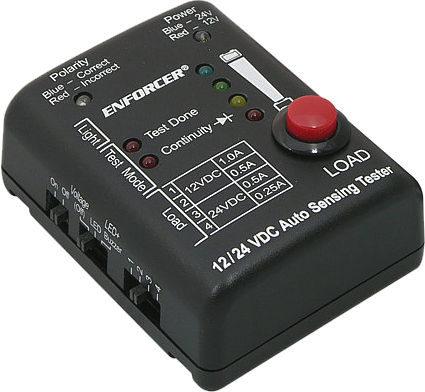

6-in-1 Multi-Purpose 12/24VDC Tester ST-BT03Q

Model[ ST-BT03Q]


The ENFORCER ST-BT03Q is more than just a battery tester. Additional features make it the perfect tester for your tool box.

  • Selectable 250mA, 500mA or 1A load.
  • DC jack input: Plug DC power jacks directly into the tester for greater flexibility.
  • LEDs indicate test results.
  • Tests:
    1. Voltage
    2. Battery Load
    3. Voltage Drop
    4. Polarity
    5. PTC fuse
    6. Continuity (LED & Audio)
  • Included illuminated power connector with alligator test leads of unequal length to prevent them from touching during testing.
  • Includes audible as well as visual continuity test.



Operating voltage12VDC / 24VDC
  Maximum load0.25 / 0.5 / 1 A (switch selectable)
  Power2 x 3VDC CR2016 Batteries included for continuity testing
  Weight2.2-oz (62g)
  Dimensions29/16"x115/16"x11/8" (65x49x29 mm)


LED Voltage Indicator
LED Color
Voltage Present*
Blue
> 12VDC
> 24.5VDC
Green
10.9~11.9 VDC
22.6~24.4 VDC
Yellow
10.2~10.8 VDC
21.0~22.5 VDC
Red
9.5~10.1 VDC
16.5~19.4 VDC

Download Data Sheet HERE
