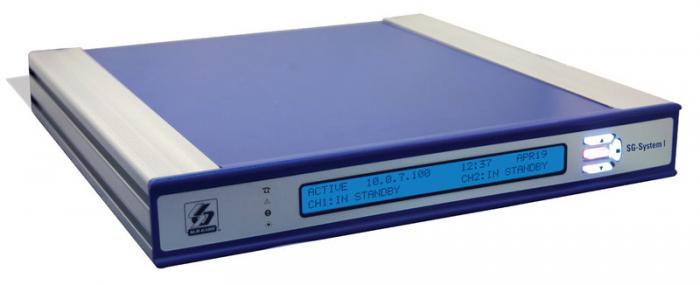

SG-SYSTEM I- Dual Phone Line

SG-SYSTEM I-IP - Dual Phone Line with Optional IP Receiver

• Multi-format receiver
• Integrated scheduled receiver line card testing
• Up to 63 different profiles and up to eight different handshakes per profile
• 500-event memory buffer on each individual POTS channels
• Patented ANI and DNIS reception, Automatic Handshake Selection (AHS), Caller ID capability and virtual configurations
• Continuous verification of computer (automation) connection
• One parallel, one serial, one USB, one TCP/IP printer port available
• One serial, one TCP/IP automation port available
• One USB, one TCP/IP console port available
• Non-volatile RAM for programming and event buffer
• Optional support for 512 IP Communicators
• Rack mount in standard 19-inch rack with the SG-SII-RMK
• 128 Bit AES encryption over IP
• Menu-driven, 40-character, 2-line LCD display with blue backlighting provides instruction when in manual mode
• 4 buttons for manual programming and acknowledgement of alarm signals when in manual mode
• Universal power supply compatible with 110/220 50 Hz/60 Hz
• Onboard flash memory and DSP for future software upgrades and enhancements

Download Data Sheet HERE
