LC-103-PIMSK-W:  Form ‘A’ 10.525 GHz alarm contact & tamper switch

LC-104-PIMW-W:    Form ‘A’ 10.525 GHz alarm contact & tamper switch

LC-124-PIMW-W:    Form ‘C’ 10.525 GHz alarm contact & tamper switch

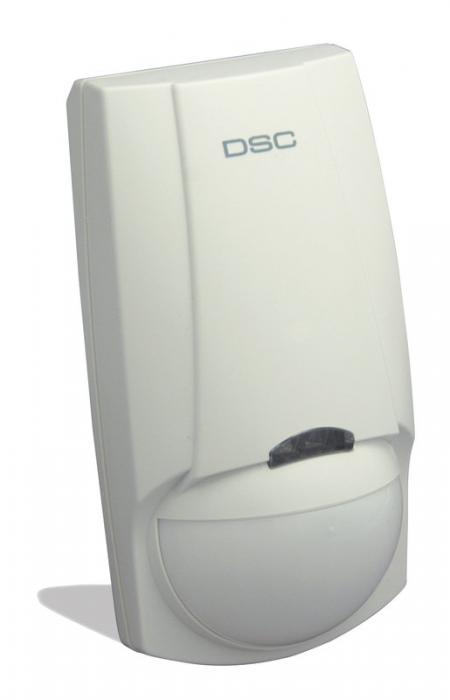

• The LC-103-PIMSK, LC-104-PIMW and LC-124-PIMW are dual-technology motion detectors that combine passive infrared and microwave detection with pet immunity. LC-103-PIMSK also supports anti-masking. The anti-masking feature prevents intruders from defeating the detector by covering its field of view.
• Anti-masking (LC-103-PIMSK)
• Form ‘A’ or ‘C’ alarm contact and tamper switch
• Digital signal analysis
• Pet immunity up to 55 lb (25 kg)
• Quad Linear Imaging Technology for sharp analysis of body dimensions and differentiation from backgrounds and pets Microwave detection based on Doppler concept
• Unique microwave motion sensor module with micro-strip patch antenna
• Advanced ASIC-based electronics Height installation calibration free 2-way PIR/ microwave sensitivity adjustment
• User-friendly installation with or without swivel-mount bracket available separately: LC-L1ST

Download Data Sheet HERE
