Click image to enlarge

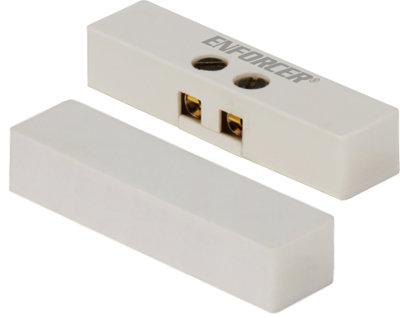

Screw-Terminal Adhesive Surface-Mount Magnetic Contact

Model[SM-4003-TQ/W]


1" (25mm) Gap, N.C., White, Adhesive Mount

  • Gold-plated terminals for longer life and reliability.
  • Screw terminals.
  • Tape to cover screw terminals included.
  • Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life.
  • 1" (25mm) Gap.
  • For N.C. circuits.
  • Mounting tape included.
  • Lifetime limited warranty.



Model numberSM-4003-TQ/W
Circuit typeN.C.
TerminalsGold-plated
ColorWhite
MountAdhesive
MaterialCaseHigh-impact ABS plastic
TerminalGold-plated
ContactsIridium-plated
Contact rating0.1A@100VDC (max)
1.0A@10VDC (max)
10W (max)
Temperature-68º~158º F (-20º~70º C)
Switch cycles50 Million (0.1mA@5VDC)
Switch dimensions1-1/2"x3/8"x19/64" (38x10x7.4mm)
Magnet dimensions1-1/2"x3/8" x9/32" (38x10x6.9mm)
MagnetRare-earth neodymium



Download Data Sheet HERE


Quantity:
