Seco-Larm

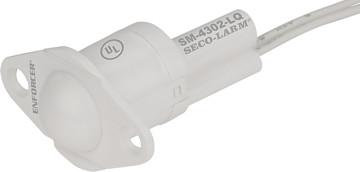

Rollerball-Type Recessed-Mount Magnetic Contact w/leads
Model[SM-4302-LQ/W]

Rollerball, N.C., with 18" (46cm) leads, White

Used for protecting sliding doors and windows where space is limited.
Magnet and reed switch contained in housing.
Spacer and screws included.
Rollerball plunger travel is 1/4" (6mm).
360º Roller-ball.
18" (46cm) leads.
Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life.
For N.C. circuits.
Lifetime limited warranty.

Circuit type	N.C.
Switch type	Plunger
Switch travel	1/4" (6mm)
Color	White
Material	High-impact ABS plastic
Contacts	Iridium-plated
Contact rating	0.1A@100VDC (max)
	1.0A@10VDC (max)
	10W (max)
Temperature	-68º~158º F (-20º~70º C)
Switch cycles	50 Million (0.1mA@5VDC)
Dimensions	1-5/32"x3/4"x1/4" (37x19x6mm)
Magnet	Rare-earth neodymium
