Click image to enlarge
Seco-Larm

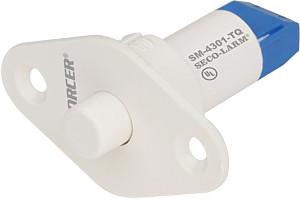

Plunger-Type Recessed-Mount Magnetic Contact

Model[SM-4301-TQ/W]


Push-button, N.C., Quick-connect, White

  • Used for protecting sliding doors and windows where space is limited.
  • Magnet and reed switch contained in housing.
  • Spacer and screws included..
  • Plunger travel is 1/4" (6mm).
  • Screw terminals.
  • Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, which results in higher handling power and long life.
  • For N.C. circuits.
  • Lifetime limited warranty.
Circuit typeN.C.
Switch typePlunger
Switch travel1/4" (6mm)
ColorWhite
MaterialHigh-impact ABS plastic
ContactsIridium-plated
Contact rating0.1A@100VDC (max)
1.0A@10VDC (max)
10W (max)
Temperature-68º~158º F (-20º~70º C)
Switch cycles50 Million (0.1mA@5VDC)
Switch dimensions1-5/32"x3/4"x1/4" (37x19x6mm
MagnetRare-earth neodymium


Quantity:
