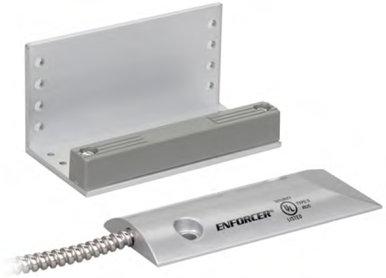

Click image to enlarge
Seco-Larm
Overhead Door Magnetic Contacts, Wide Gap UL Listed

Model[SM-226LQ]


2-3/4" (70mm) Gap, Closed Loop, UL Listed

  • Used for overhead doors in both industrial and residential situations where a wide gap is present.
  • Adjustable to fit most door-channel widths.
  • Switch contained in curved low-profile cast-aluminum housing for surface mounting on garage floor.
  • Magnet enclosed in gray ABS case on L-bracket.
  • 24" (61cm) wire leads enclosed in armored cable.
  • Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a longer expected life.
  • For closed loop circuits (SM-226LQ).
  • For open/closed loop circuits (SM-226L-3Q).
  • 2-3/4" (70mm) Gap.
  • Mounting bracket included.
  • Lifetime limited warranty.
Model numberSM-226LQSM-226L-3Q
Circuit typeClosed loopOpen/closed loop
Operation gap2-3/4", (70mm)
MaterialSwitchHeavy-duty cast-aluminum case
Terminal24" (61cm) armored leads
MagnetABS plastic on L-bracket
ContactsDeactivated rhodium on gold under-plating
Contact rating0.1A@100VDC (max)0.02A@100VDC (max)
1.0A@10VDC (max)0.2A@10VDC (max)
10W (max)3W (max)
Temperature-15º~+160º F (-25º~70º C)
Switch cycles50 Million (0.1mA@5VDC)
Switch dimensions4-11/32"x1-3/4"x27/64" (110x44x11mm)
Magnet dimensions3-15/16"x2"x2" (100x51x51mm)
MagnetAlnico 5

Download Data Sheet HERE
