Click image to enlarge

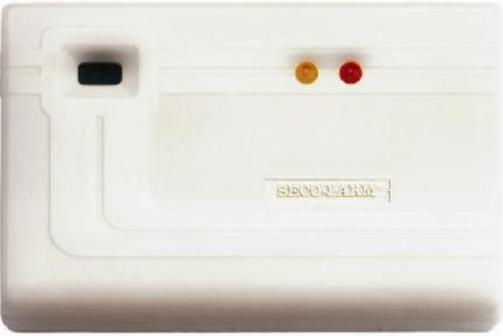

ENFORCER 190 Glass Break / Audio Discriminator

Model[ENFORCER 190]


  • Eliminates the need for unsightly individual detectors on each pane of glass.
  • Detects the high-frequency sound of glass breaking.
  • Patented yellow turbulence LED allows quick and simple sensitivity adjustment without having to use a test meter.
  • Red LED shows alarm output status.
  • Wide detection radius:
    - 25ft radius if ceiling-mounted
    - 34ft radius if wall mounted.
  • Equipped with an N.C. tamper circuit to protect against opening or breaking the case.
  • Installs without RF-shielded cable.
  • Compact size and attractive appearance allows for discreet installations anywhere.
  Power12VDC
  Current drainStandby5mA
Triggered80mA
  Detector output2A Dry relay NO/NC/COM
  Tamper outputN.C. Contact
  Status LEDsYellowEnvironmental noise level
RedTrigger signal sent to alarm
  Operating temperature14º ~122º F (-10º~50º C)
  Case constructionABS Plastic
  Dimensions41/2"x23/4"x11/8" (115x70x27 mm)
  Weight3.35-oz (95g)



LED
What it does
Yellow
Indicates whether environmental noise is too high, reducing the likelihood of false alarms.
Red
Indicates whether the sensor has been triggered and is sending a signal to the alarm.


Quantity:
