Seco-Larm

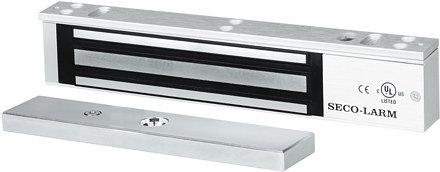

E-941SA-600PQ Maglock with 600-lb Holding Force, Bond S

Model[E-941SA-600PQ]


  • Anodized aluminum housing (US 28).
  • 12 or 24 VDC (selectable).
  • No residual magnetism.
  • Adjustable mounting bracket.
  • MOV surge protection.
  • Complete mounting hardware for typical installations.
  • "L" bracket and "Z" brackets available for easy mounting.
  • Detachable face plate.
  • UL and ULC listed.
  • CE listed.
  • RoHS compliant.
  • LIFETIME WARRANTY (click for more info).
  • Built-in dual-color status LED and bond sensor to show locking status:

     Green
     Door is closed and locked
     Red
     Door not closed and/or locked
     Off
     Door in use / no power

  • Bond sensor output: 3A@12VDC
 E-941SA-600E-941SA-600PQ
Holding force600-lb (272kg)
Current draw500mA@12VDC, 250mA@24VDC
Operating voltage12 or 24 VDC±10%
Temperature14º ~ 131º F (-10º ~ 55º C)
Magnet size9-7/8"x1-1/16"x1-5/8" (250x27x42 mm)
Armature size7-1/4"x1/2"x1-1/2" (185x12x38 mm)
CertificationUL, ULC, CE
RoHS complianceYes
Unit weight (approx.)4-lb 6-oz (2kg)
Case quantity10 pcs
Case shipping weight  47-lb (22kg)
Bond sensor
  •
Status LED
