Click image to enlarge
Seco-Larm

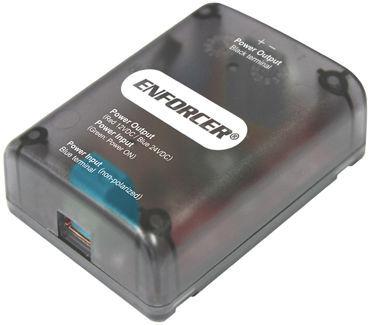

Power Converter 3A@12VDC, 1.5A@24VDC

Model[ST-LA130-TTQ]


ENFORCER® Power Converters "step down" voltage, converting low-voltage AC or DC into regulated DC outputs. These converters are useful for DC CCTV cameras, access controls, and many other applications where low-voltage DC output is required.



Descriptions
    • Three models available, providing varying degrees of low-voltage DC output.
    • Built-in overload protection.
    • Regulated and filtered output.
    • Green LED indicates power input.
ST-LA108-TPQ
      and
ST-LA115-TPQ
      only:
  • 2.1mm DC Plug with pigtail for simple and quick installations.
ST-LA130-TTQ only:
  • Red and Blue LEDs indicate power output.
ModelST-L108-TPQST-LA115-TPQST-LA130-TTQ
  Input connectorTerminal block
  Output connector2.1mm DC PlugTerminal block
  Input voltage16~28 VAC/VDC18~28 VAC/VDC18~24 VAC/VDC for 12VDC, 24~28 VAC or 26~28 VDC for 24VDC
  Output voltage12VDC12/24 VDC
  Output current0.8A1.5A3A@12VDC, 1.5A@24VDC
  LED IndicatorsGreen: Power inputGreen: Power input
Red: 12VDC Power output
Blue: 24VDC Power output
  Current protectionBuilt-in3A PTC Fuse
  Overheat protectionBuilt-in
  Overload protectionBuilt-in
  Dimensions1-15/16"x1-7/16"x15/16"
(50x37x24 mm)
2-1/2"x1-7/8"x15/16"
(64x48x24 mm)

Download Data Sheet HERE
