Seco-Larm

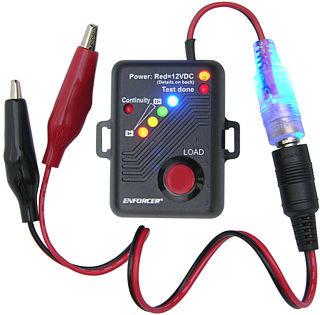

6-in-1 12VDC Battery Tester with continuity (LED) ST-BT

Model[ST-BT02Q]


The ENFORCER ST-BT02Q is more than just a battery tester. Additional features make it the perfect tester for your tool box.



  • dicates the condition of rechargeable gel-type 12VDC batteries.
  • Visual LED indicators: Blue --- excellent,Green --- good,Yellow --- weak,Red --- bad.
  • Equipped with a momentary simulated load.
  • Built-in alligator clips for easy connection.
  • Reverse-polarity protection.
  • Portable and easy to use.
  • 6-in-1 battery tester. Test for:
    1. Voltage     2. Battery Load     3. Voltage Drop
    4. PTC Fuse     5. Polarity     6. Continuity
    ST-BT03Q also features: Buzzer for audible continuity testing, LED headlight, 12/24VDC testing.
Operating voltage5~12 VDC
  Maximum load0.5 / 1 A (switch selectable)
  PowerContinuity - 3VDC CR1220 Battery (included)
All other tests - passive: no power required
  Weight1.4-oz (40g)
  Dimensions2"x13/4"x11/8" (51x44x29 mm)

LED Voltage Indicator
LED Color
Voltage Present
Blue
> 12VDC
Green
10.8~12 VDC
Yellow
10~10.7 VDC
Red
< 9.9 VDC

Download Data Sheet HERE
